M50-470 Series

Catalog

PIN HEADER, BOARD-TO-BOARD, 1.27 MM, 2 ROWS, 16 CONTACTS, THROUGH HOLE, ARCHER M50 SERIES

Part	Mated Stacking Heights	Contact Finish - Post	Insulation Height [z]	Insulation Height [z]	Connector Type	Mounting Type	Contact Type	Termination	Contact Length - Post [x]	Contact Length - Post	Insulation Color	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Row Spacing - Mating	Row Spacing - Mating	Number of Positions	Fastening Type	Number of Positions Loaded	Material Flammability Rating	Contact Finish - Mating	Number of Rows [custom]	Shrouding	Contact Material	Insulation Material	Pitch - Mating	Pitch - Mating	Current Rating (Amps)	Number of Positions [custom]

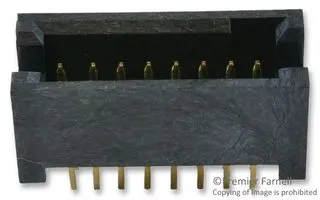

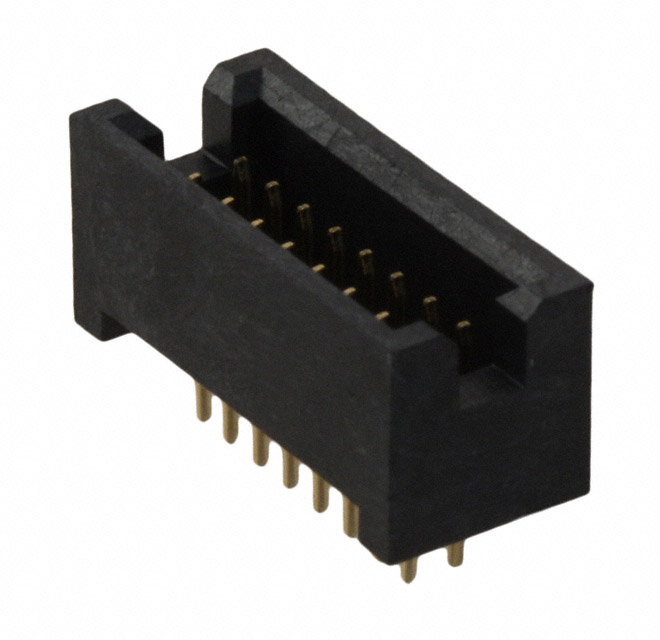

Harwin Inc. M50-4700845	6 mm	Gold	5.69 mm	0.224 in	Header	Through Hole	Male Pin	Solder	0.091 "	2.3 mm	Black	Square	-40 C	105 ░C	0.05 in	1.27 mm	16	Push-Pull	All	UL94 V-0	Gold	2	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	1 A

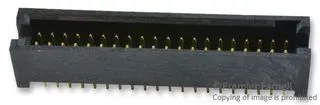

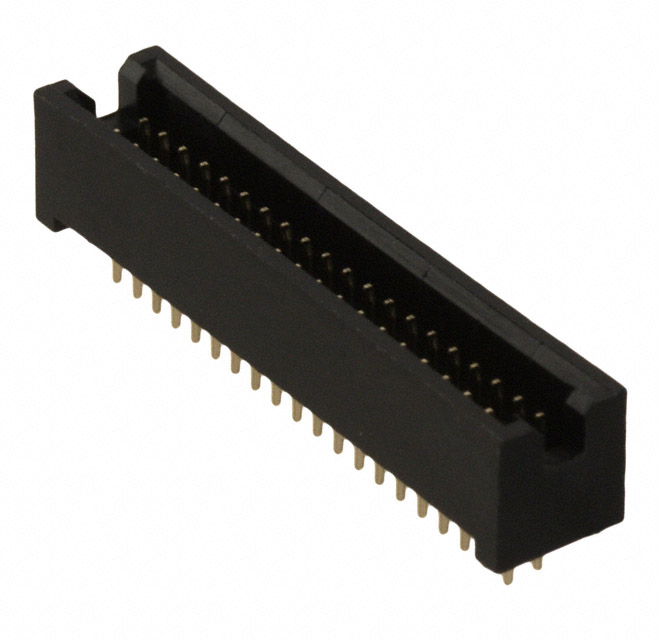

Harwin Inc. M50-4702045	6 mm	Gold	5.69 mm	0.224 in	Header	Through Hole	Male Pin	Solder	0.091 "	2.3 mm	Black	Square	-40 C	105 ░C	0.05 in	1.27 mm	40	Push-Pull	All	UL94 V-0	Gold	2	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	1 A

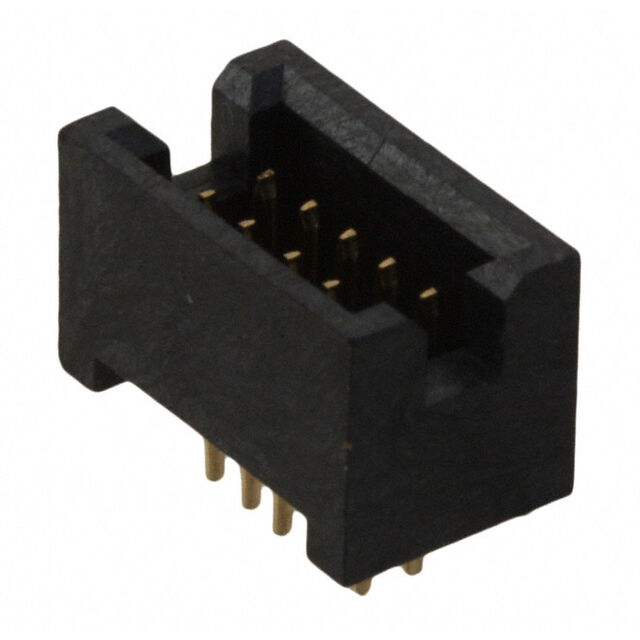

Harwin Inc. M50-4700545	6 mm	Gold	5.69 mm	0.224 in	Header	Through Hole	Male Pin	Solder	0.091 "	2.3 mm	Black	Square	-40 C	105 ░C	0.05 in	1.27 mm	10	Push-Pull	All	UL94 V-0	Gold	2	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	1 A

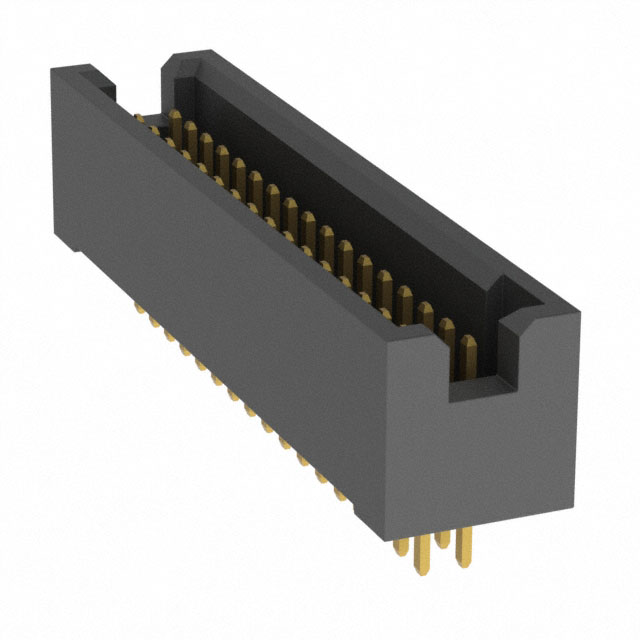

Harwin Inc. M50-4701745	6 mm	Gold	5.69 mm	0.224 in	Header	Through Hole	Male Pin	Solder	0.091 "	2.3 mm	Black	Square	-40 C	105 ░C	0.05 in	1.27 mm		Push-Pull	All	UL94 V-0	Gold	2	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	1 A	34

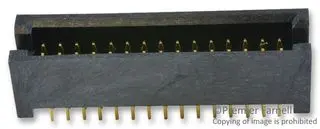

Harwin Inc. M50-4701545	6 mm	Gold	5.69 mm	0.224 in	Header	Through Hole	Male Pin	Solder	0.091 "	2.3 mm	Black	Square	-40 C	105 ░C	0.05 in	1.27 mm	30	Push-Pull	All	UL94 V-0	Gold	2	Shrouded - 4 Wall	Copper Alloy	Liquid Crystal Polymer (LCP)	1.27 mm	0.05 in	1 A
