S10LAC-P Series
Manufacturer: ODU
Beta
⌘K

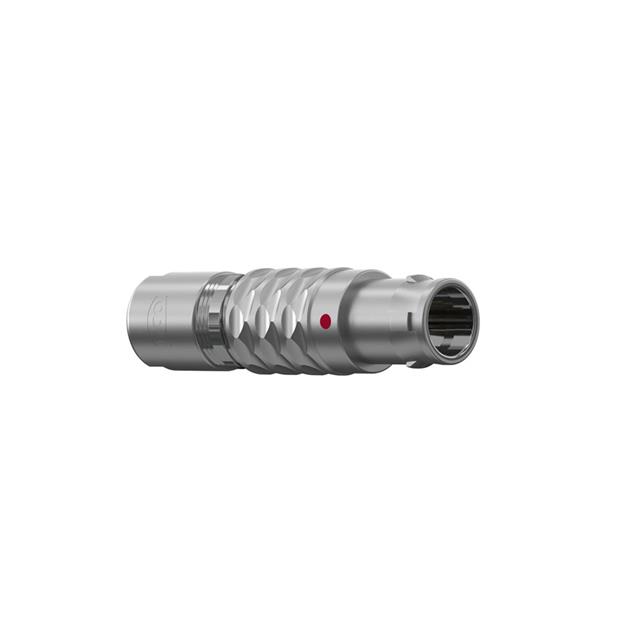

CONN PLUG MALE 6P GOLD SLDR CUP
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Shell Material | Cable Opening [Max] | Cable Opening [Min] | Color | Shell Size - Insert [custom] | Fastening Type | Connector Type | Backshell Material, Plating | Current Rating (Amps) | Features | Orientation | Primary Material | Shell Finish | Number of Positions | Contact Material | Contact Finish - Mating | Mounting Type | Insert Material | Applications | Shielding | Cable Opening | Cable Opening [Max] | Cable Opening [Min] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 6 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | ||||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.205 in | 0.157 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 10 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 4 mm 5.2 mm | |||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.22 in | 0.197 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 7.5 A | Backshell | A | Metal | Chrome over Nickel | 2 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 5.6 mm | 5 mm | ||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.205 in | 0.157 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 7 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 4 mm 5.2 mm | |||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.205 in | 0.157 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 6 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 4 mm 5.2 mm | |||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.087 " 2.2 mm | 0.059 " 1.5 mm | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 6 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | ||||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.22 in | 0.197 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 7 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 5.6 mm | 5 mm | ||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.22 in | 0.197 in | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 7.5 A | Backshell | A | Metal | Chrome over Nickel | 5 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | 5.6 mm | 5 mm | ||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 7.5 A | Backshell | A | Metal | Chrome over Nickel | 5 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded | ||||
120 °C | -40 C | IP50 - Dust Protected | Brass | 0.126 in 3.2 mm | 0.079 in 2 mm | Silver | 0 | Push-Pull | Plug Male Pins | Brass Chrome over Nickel | 4 A | Backshell | A | Metal | Chrome over Nickel | 7 | Brass | Gold | Free Hanging (In-Line) | Polyetheretherketone (PEEK) | Industrial Medical Military Testing Equipment & Measurement | Shielded |
