XH5-N Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

BOARD TO BOARD & MEZZANINE CONNECTORS HALF-PITCH 50PIN SMT PLUG STRAIGHT

Part	Contact Finish - Mating	Number of Positions	Connector Type	Pitch - Mating	Pitch - Mating	Features	Shrouding	Mounting Type	Contact Shape	Insulation Material	Row Spacing - Mating	Row Spacing - Mating	Material Flammability Rating	Termination	Contact Finish - Post	Fastening Type	Number of Positions Loaded	Number of Rows [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Style	Voltage Rating	Contact Type	Insulation Color	Insulation Height [custom]	Insulation Height [custom]	Contact Material	Mated Stacking Heights	Insulation Height [z]	Insulation Height [z]	Mated Stacking Heights [z]	Mated Stacking Heights [custom]	Insulation Height	Insulation Height
Omron Electronics Inc-EMC Div XH5E-5015-1N	Gold	50	Header	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black	6.6 mm	0.26 in	Copper Alloy

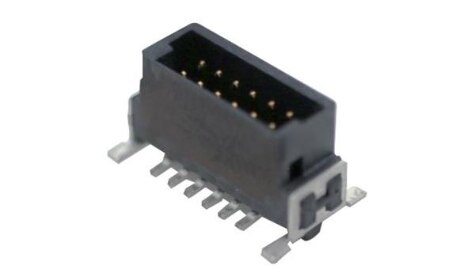

Omron Electronics Inc-EMC Div XH5E-8015-2N	Gold	80	Header	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black			Copper Alloy	9.5 mm 12.3 mm	0.319 in	8.1 mm
Omron Electronics Inc-EMC Div XH5E-2615-1N	Gold	26	Header	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black	6.6 mm	0.26 in	Copper Alloy
Omron Electronics Inc-EMC Div XH5E-6815-1N	Gold	68 positions	Header	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black	6.6 mm	0.26 in	Copper Alloy				8 mm 10.8 mm

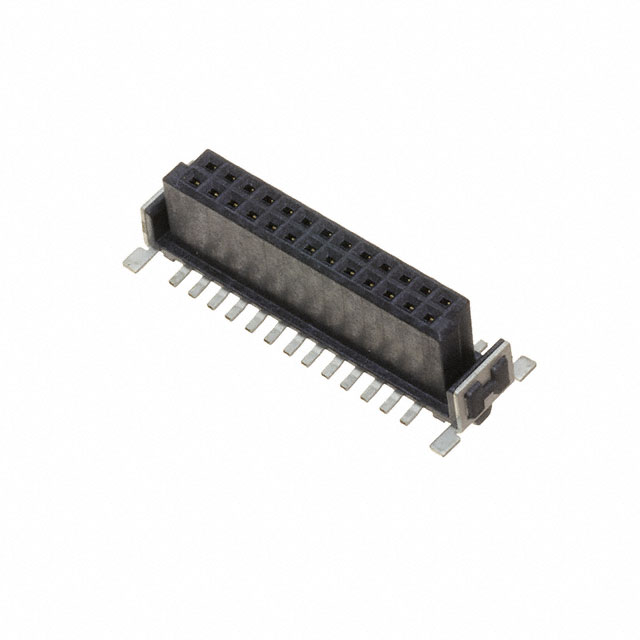

Omron Electronics Inc-EMC Div XH5B-5015-4N	Gold	50	Socket	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention		Surface Mount			0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Female Socket	Black								8 mm 9.5 mm	6.25 mm	0.246 in

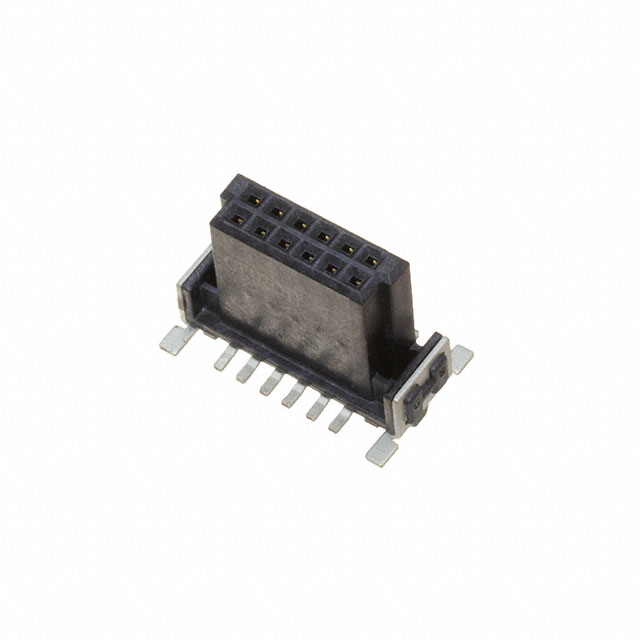

Omron Electronics Inc-EMC Div XH5F-1215-N	Gold	12	Socket	1.27 mm	0.05 in	Board Guide Solder Retention		Right Angle Surface Mount			0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Female Socket	Black									3.7 mm	0.146 in
Omron Electronics Inc-EMC Div XH5B-6815-4N	Gold	68 positions	Socket	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention		Surface Mount			0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Female Socket	Black								8 mm 9.5 mm	6.25 mm	0.246 in
Omron Electronics Inc-EMC Div XH5E-8015-1N	Gold	80	Header	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention	Shrouded - 4 Wall	Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black	6.6 mm	0.26 in	Copper Alloy

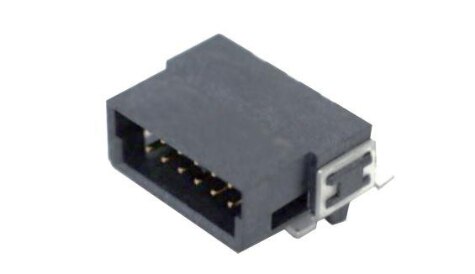

Omron Electronics Inc-EMC Div XH5A-2615-N	Gold	26	Header	1.27 mm	0.05 in	Board Guide Solder Retention	Shrouded - 4 Wall	Right Angle Surface Mount	Square	Liquid Crystal Polymer (LCP)	0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Male Pin	Black			Copper Alloy						4.25 mm	0.167 "
Omron Electronics Inc-EMC Div XH5B-8015-4N	Gold	80	Socket	1.27 mm	0.05 in	Board Guide Pick and Place Solder Retention		Surface Mount			0.05 in	1.27 mm	UL94 V-0	Solder	Tin	Push-Pull	All	2	-55 C	105 ░C	Board to Board Cable	100 VAC	Female Socket	Black								8 mm 9.5 mm	6.25 mm	0.246 in
