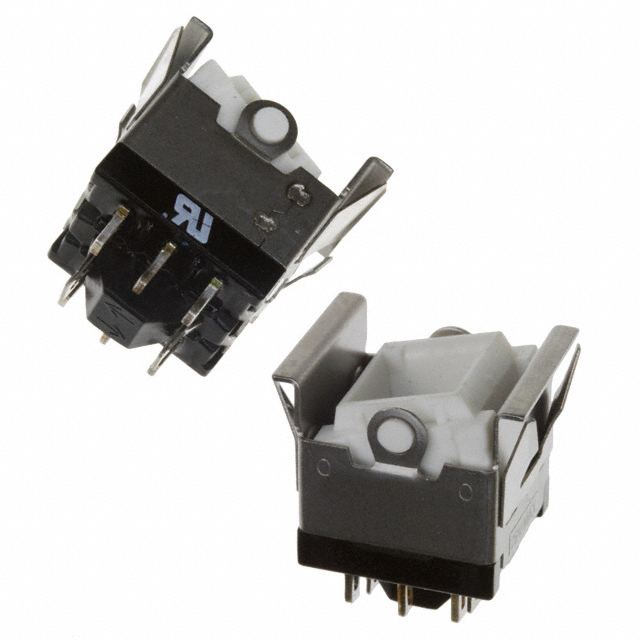

MLW3029 Series
Manufacturer: NKK Switches
Beta
⌘K
SWITCH ROCKER DPDT 5A 125V
| Part | Electrical Life | Mechanical Life | Actuator Marking | Features | Operating Temperature [Max] | Operating Temperature [Min] | Termination Style | Color - Actuator/Cap | Actuator Type | Voltage Rating - AC | Circuit | Approval Agency | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - DC | Mounting Type | Current Rating (Amps) | Switch Function | Panel Cutout Dimensions [custom] | Illumination Voltage (Nominal) | Illumination Type, Color | Panel Cutout Dimensions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 NKK Switches | 10000 Cycles | 30000 Steps | No Marking | Epoxy Sealed Terminals | 50 °C | -10 °C | Solder Lug | White | Concave (Curved) | 125 V | DPDT | UL | 16.7 mm | 18.7 mm | 30 V | Panel Mount Snap-In | 3 A 5 A | On-Off-Mom | ||||
NKK Switches | 10000 Cycles | 30000 Steps | No Marking | Epoxy Sealed Terminals | 50 °C | -10 °C | Solder Lug | Red | Concave (Curved) | 125 V | DPDT | UL | 16.7 mm | 18.7 mm | 30 V | Panel Mount Snap-In | 3 A 5 A | On-Off-Mom | ||||
NKK Switches | 10000 Cycles | 30000 Steps | No Marking | Epoxy Sealed Terminals | 50 °C | -10 °C | Solder Lug | Green | Sculptured - Illuminated | 125 V | DPDT | UL | 30 V | Panel Mount Snap-In | 3 A 5 A | On-Off-Mom | 19.2 mm˛ | 2.1 VDC | Green LED | 19.2 mm² | ||
NKK Switches | ||||||||||||||||||||||
 NKK Switches | 10000 Cycles | 30000 Steps | Varies by Cap | Epoxy Sealed Terminals | 50 °C | -10 °C | Solder Lug | Actuator Arm Cap Required | 125 V | DPDT | UL | 16.7 mm | 18.7 mm | Panel Mount Snap-In | 5 A | On-Off-Mom |
