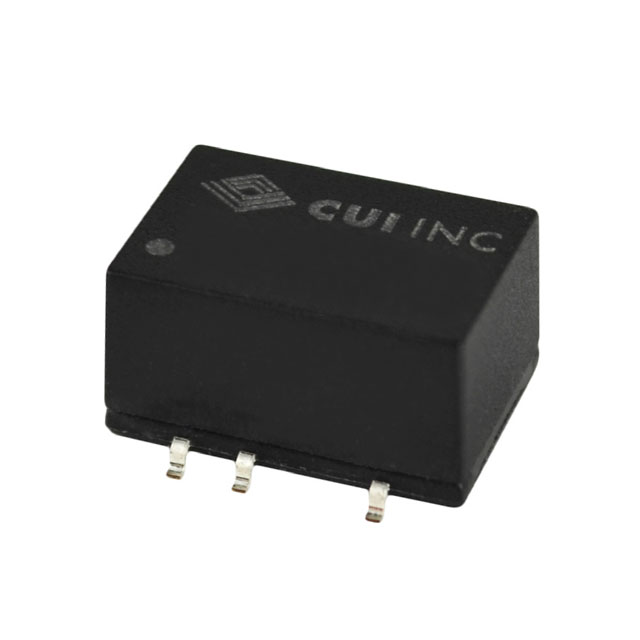

PCN1-S5 Series

Manufacturer: CUI Inc.

Catalog

DC DC CONVERTER +/-15V 1W

Part	Voltage - Input (Max) [Max]	Type	Voltage - Output 1	Voltage - Input (Min) [Min]	Standard Number	Package / Case	Applications	Mounting Type	Efficiency	Number of Outputs	Approval Agency	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [z]	Voltage - Output 2	Voltage - Isolation	Operating Temperature [Min]	Operating Temperature [Max]	Current - Output (Max) [Max]	Current - Output (Max) [Min]	Features	Current - Output (Max)
CUI Inc. PCN1-S5-D15-M-TR	5.5 V	Isolated Module	15 V	4.5 V	55032 Class A	10-SMD Module 6 Leads	ITE (Commercial)	Surface Mount	78 %	2	EN	0.3 in	9.1 mm	0.36 in	16.3 mm	0.64 "	7.6 mm	-15 V	1.5 kV	-40 C	100 °C	33 mA	33 mA
CUI Inc. PCN1-S5-D12-M-TR	5.5 V	Isolated Module	12 V	4.5 V	55032 Class A	10-SMD Module 5 Leads	ITE (Commercial)	Surface Mount	78 %	2	EN	0.29 in	9.8 mm	0.39 in	16.2 mm	0.64 "	7.4 mm	-12 V	1.5 kV	-40 C	100 °C			SCP	42 mA
