B07D03 Series
Manufacturer: TE Connectivity Aerospace, Defense and Marine
Beta
⌘K

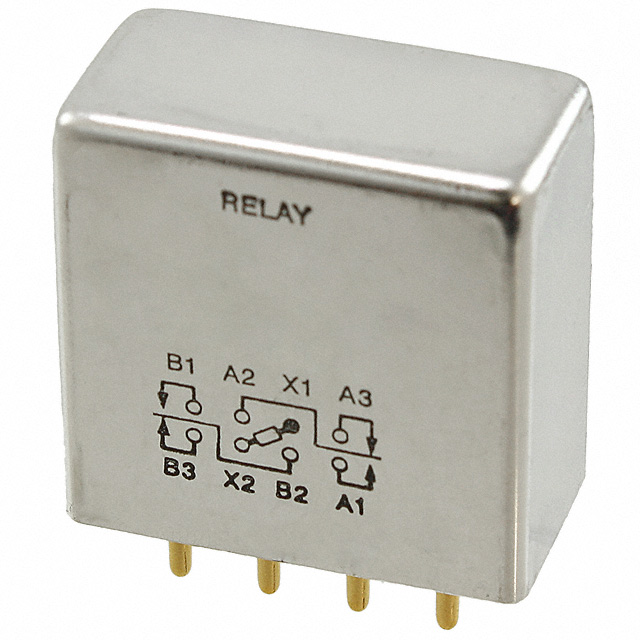

RELAY GEN PURPOSE DPDT 10A 26.5V
| Part | Contact Form | Must Operate Voltage | Contact Material | Contact Rating (Current) | Coil Current | Seal Rating | Release Time | Operating Temperature [Max] | Operating Temperature [Min] | Mounting Type | Termination Style | Relay Type | Coil Type | Grade | Must Release Voltage | Coil Voltage | Operate Time | Coil Resistance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Aerospace, Defense and Marine | DPDT (2 Form C) | 13 VDC | Silver Cadmium Oxide (AgCdO) | 10 A | 88.3 mA | Sealed - Hermetically | 15 ms | 125 °C | -65 ░C | Through Hole | PC Pin | General Purpose | Non Latching | Military | 2.3 VDC | 26.5 VDC | 15 ms | 300 Ohms |
 TE Connectivity Aerospace, Defense and Marine | DPDT (2 Form C) | 6.5 VDC | Silver Cadmium Oxide (AgCdO) | 10 A | 160 mA | Sealed - Hermetically | 15 ms | 125 °C | -65 ░C | Through Hole | PC Pin | General Purpose | Non Latching | Military | 0.8 VDC | 12 VDC | 15 ms | 75 Ohms |
