MMF881A31 Series
Manufacturer: METZ CONNECT USA Inc.
Beta
⌘K

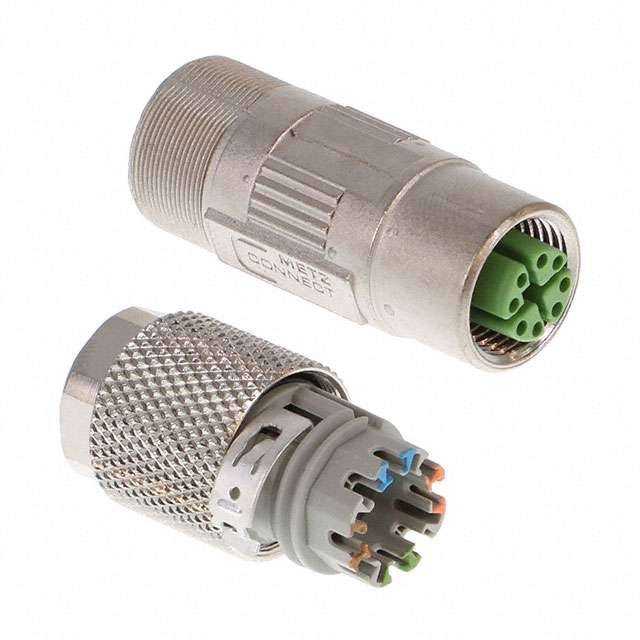

CONN JACK FMALE 8POS GOLD IDC
| Part | Applications | Contact Material | Backshell Material, Plating | Insert Material [custom] | Insert Material [custom] | Termination | Features | Contact Finish - Mating | Ingress Protection | Material Flammability Rating | Connector Type | Shell Finish | Shell Size - Insert | Orientation [x] | Number of Positions | Color | Mounting Type | Primary Material | Fastening Type | Cable Opening [Max] | Cable Opening [Min] | Cable Opening [Min] | Cable Opening [Max] | Voltage Rating | Shielding | Operating Temperature [Max] | Operating Temperature [Min] | Shell Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 METZ CONNECT USA Inc. | Railway | Brass | Nickel Zinc Die Cast | Nylon | Polyamide (PA) | IDC | Backshell | Nickel-Gold | IP67 - Dust Tight Waterproof | UL94 V-0 | Jack Female Sockets | Nickel | M12-8 | X | 8 | Silver | Free Hanging (In-Line) | Metal | Threaded | 9.7 mm | 5 mm | 0.197 in | 0.382 in | 50 VAC 60 VDC | Shielded | 85 °C | -40 C | Zinc Die Cast |
