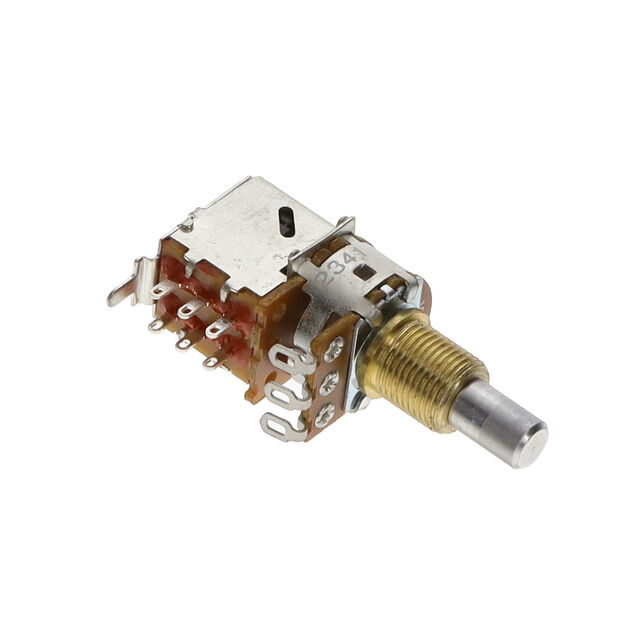

PDB183 Series
Manufacturer: Bourns Inc.
Beta
⌘K
PANEL CONTROL - 17MM-ST-CARBON /BULK, BAG PACKAGING
| Part | Resistive Material | Tolerance | Rotation | Mounting Type | Number of Gangs | Built in Switch | Resistance (Ohms) | Actuator Length [x] | Actuator Length [x] | Actuator Type | Number of Turns | Taper | Termination Style | Adjustment Type | Power (Watts) | Power (Watts) | Size - Body [diameter] | Size - Body [diameter] | Actuator Diameter [diameter] | Actuator Diameter [diameter] | Bushing Thread | Resistance (Ohms) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 250000 Ohms | 0.748 in | 19 mm | Knurled and Slotted | 1 | Logarithmic | Board Locks PC Pins | Side Adjustment | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 500 kOhms | 0.748 in | 19 mm | Knurled and Slotted | 1 | Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 1 MΩ | 0.984 in | 25 mm | Knurled and Slotted | 1 | Reverse Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | M7 x 0.75 | |
 Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 250000 Ohms | 0.748 in | 19 mm | Knurled and Slotted | 1 | Linear | Board Locks PC Pins | Side Adjustment | 0.2 W | 0.2 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 500 kOhms | 0.748 in | 19 mm | Knurled and Slotted | 1 | Linear | Solder Lug | User Defined | 0.2 W | 0.2 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 1 MΩ | 1.083 in | 27.5 mm | Knurled and Slotted | 1 | Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 0.748 in | 19 mm | Knurled and Slotted | 1 | Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | 100k | ||
 Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 500 kOhms | 0.748 in | 19 mm | Round | 1 | Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
 Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 1 MΩ | 0.748 in | 19 mm | Round | 1 | Logarithmic | Solder Lug | User Defined | 0.1 W | 0.1 W | 17 mm | 0.669 " | 6 mm | 0.236 in | ||
Bourns Inc. | Carbon | 20 % | 300 ░ | Panel Mount | 1 | Push-Pull DPDT | 1 MΩ | 0.748 in | 19 mm | Knurled and Slotted | 1 | Linear | Solder Lug | User Defined | 0.2 W | 0.2 W | 17 mm | 0.669 " | 6 mm | 0.236 in |
