M2T22S4 Series

Catalog

SWITCH TOGGLE DPDT 0.4VA 28V

Part	Actuator Material	Electrical Life	Illumination	Actuator Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	Actuator Type	Current Rating (Amps)	Mounting Type	Features	Voltage Rating - DC	Bushing Thread	Voltage Rating - AC	Circuit	Switch Function	Termination Style

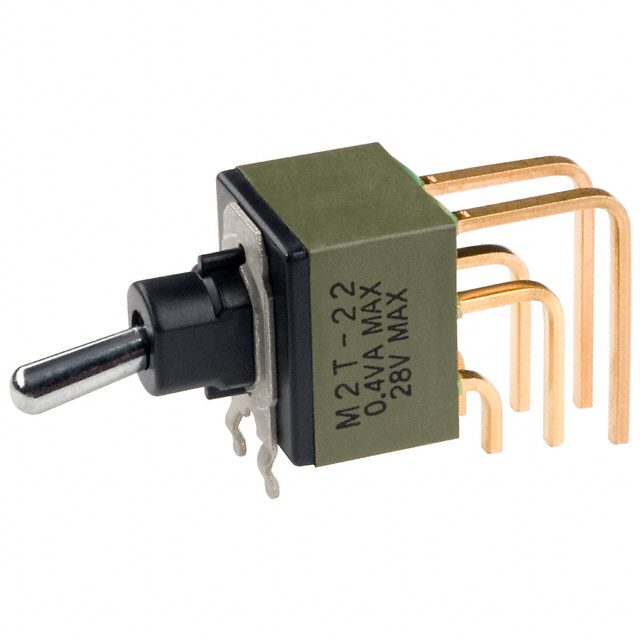

NKK Switches M2T22S4A5G40	Brass Nickel Plated	50000 Cycles	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	0.4 VA	Right Angle Through Hole Vertical	Process Sealed	28 V	Unthreaded	28 V	DPDT	On-On	PC Pin

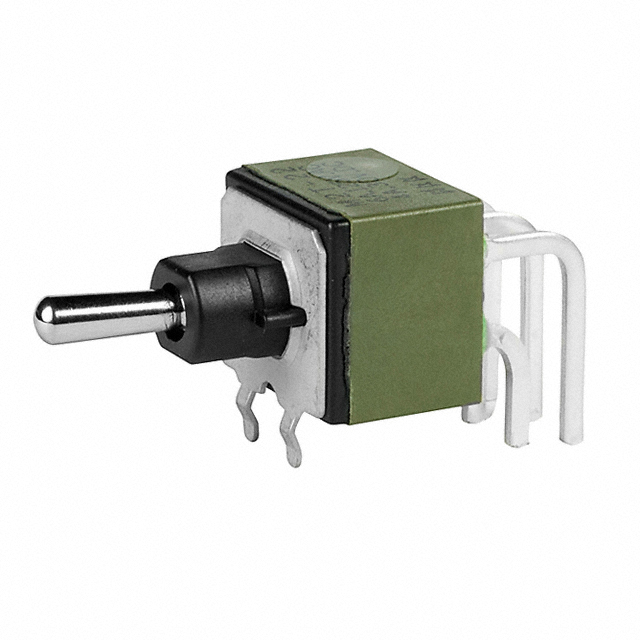

NKK Switches M2T22S4A5W30	Brass Nickel Plated	25000 Steps	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	4 A 6 A	Right Angle Through Hole	Process Sealed	30 V	Unthreaded	125 V	DPDT	On-On	PC Pin

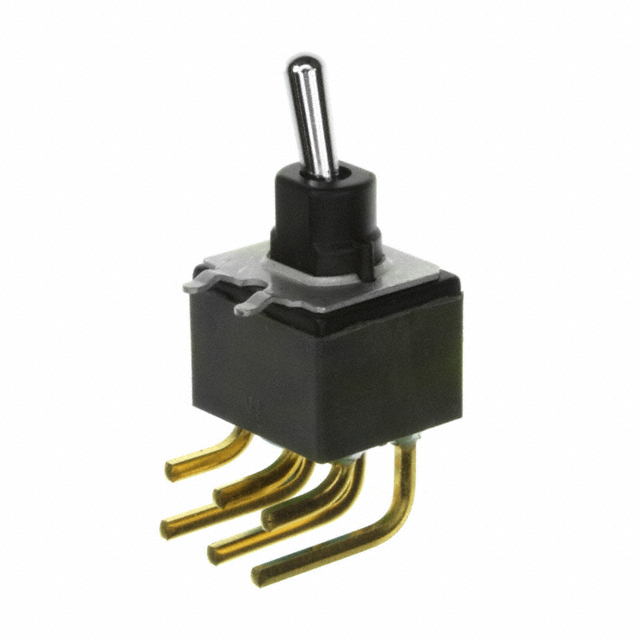

NKK Switches M2T22S4A5G30	Brass Nickel Plated	50000 Cycles	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	0.4 VA	Right Angle Through Hole	Process Sealed	28 V	Unthreaded	28 V	DPDT	On-On	PC Pin
NKK Switches M2T22S4A5W13/CUL	Brass Nickel Plated	25000 Steps	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	6 A	Through Hole	Process Sealed	28 V	Unthreaded	125 V	DPDT	On-On	PC Pin
NKK Switches M2T22S4A5W40	Brass Nickel Plated	25000 Steps	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	4 A 6 A	Right Angle Through Hole Vertical	Process Sealed	30 V	Unthreaded	125 V	DPDT	On-On	PC Pin
NKK Switches M2T22S4A5A30	Brass Nickel Plated	25000 Steps	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	4 A 6 A	Right Angle Through Hole	Process Sealed	30 V	Unthreaded	125 V	DPDT	On-On	PC Pin

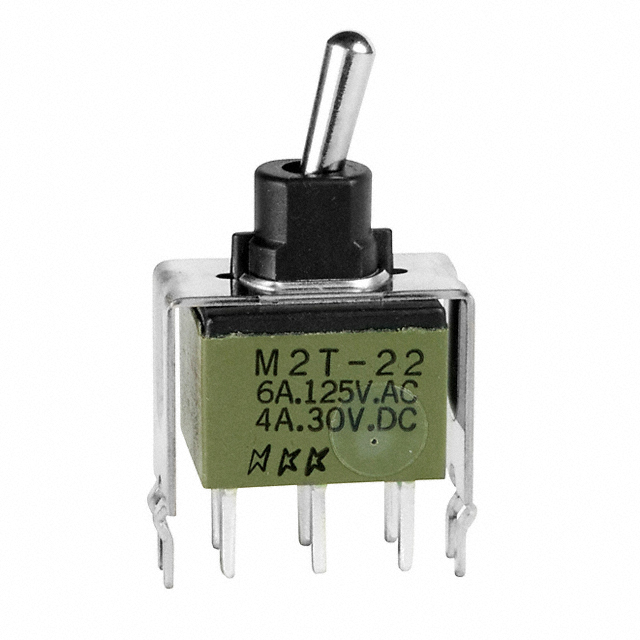

NKK Switches M2T22S4A5W13	Brass Nickel Plated	25000 Steps	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	4 A 6 A	Through Hole	Process Sealed	30 V	Unthreaded	125 V	DPDT	On-On	PC Pin

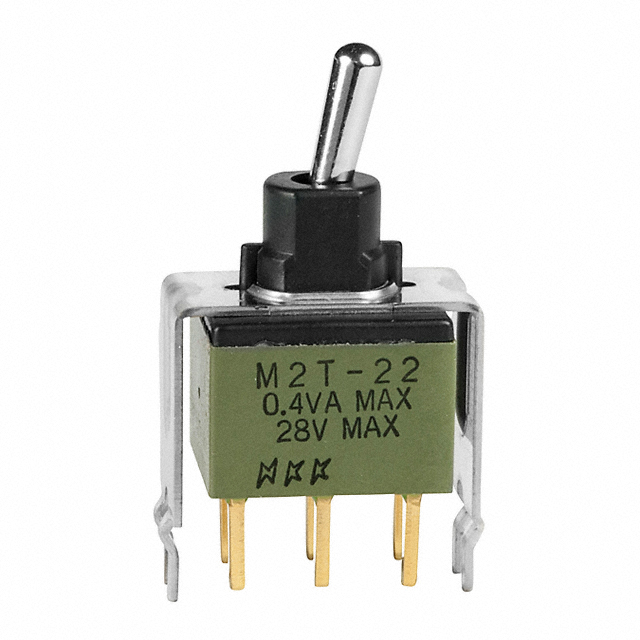

NKK Switches M2T22S4A5G13	Brass Nickel Plated	50000 Cycles	Non-Illuminated	7.62 mm	85 °C	-30 ░C	Standard Round	0.4 VA	Through Hole	Process Sealed	28 V	Unthreaded	28 V	DPDT	On-On	PC Pin
