BU-P3690 Series
Manufacturer: Mueller Electric Co
Beta
⌘K

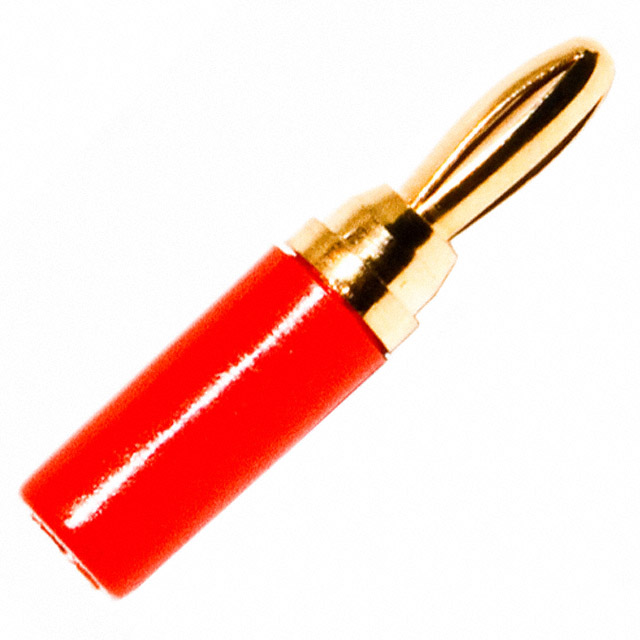

BANANA TEST CONNECTOR, PLUG, CABLE MOUNT, 5 A, 1 KV, GOLD PLATED CONTACTS, RED
| Part | Contact Material | Contact Finish | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Gender | Color | Mounting Type | Plug/Mating Plug Diameter | Wire Gauge [Max] | Wire Gauge [Min] | Type | Insulation |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mueller Electric Co | Beryllium Copper | Gold | Polyamide (PA) Nylon | -50 °C | 105 ░C | Solder | Male | Red | Free Hanging (In-Line) | Miniature | 22 AWG | 19.5 AWG | Banana Plug | Non-Mating End Insulated |
 Mueller Electric Co | Beryllium Copper | Gold | Polyamide (PA) Nylon | -50 °C | 105 ░C | Solder | Male | Black | Free Hanging (In-Line) | Miniature | 22 AWG | 19.5 AWG | Banana Plug | Non-Mating End Insulated |
