V48SR Series

Catalog

DC DC CONVERTER 12V 66W

Part	Mounting Type	Efficiency	Power (Watts)	Number of Outputs	Current - Output (Max) [Max]	Applications	Features	Voltage - Isolation	Voltage - Input (Min) [Min]	Voltage - Output 1	Type	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [z]	Operating Temperature [Max]	Operating Temperature [Min]	Package / Case	Control Features	Voltage - Input (Max) [Max]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [z]

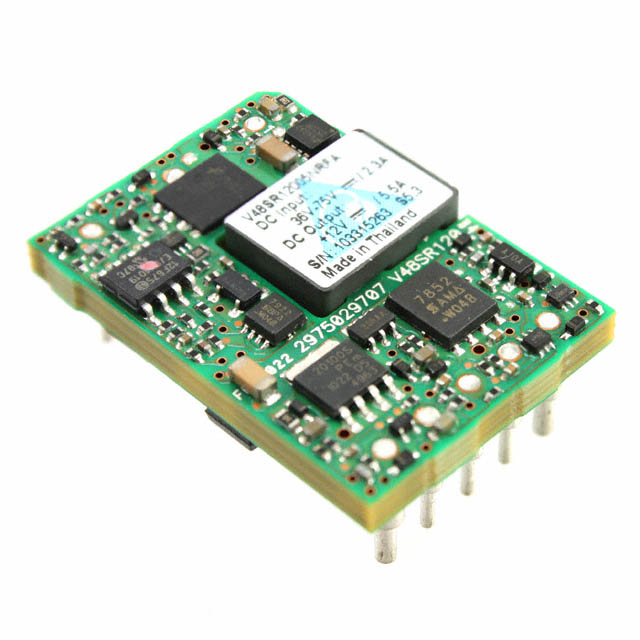

Delta Electronics V48SR12005NRFA	Through Hole	91 %	66 W	1	5.5 A	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	2250 VDC	36 V	12 V	Isolated Module	9.2 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.36 in	120 °C	-40 C	8-DIP Module 1/16 Brick	Active Low Enable	75 V
Delta Electronics V48SR15004NRFA	Through Hole	90.5 %	66 W	1	4.4 A	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	2250 VDC	36 V	15 V	Isolated Module	0.37 in		22.86 mm		1.3 in		121 C	-40 C	8-DIP Module 1/16 Brick	Active Low Enable	75 V	33 mm	9.5 mm	22.8 mm
Delta Electronics V48SR1R825NNFA	Through Hole	87 %	66 W	1	25 A	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	2250 VDC	36 V	1.8 V	Isolated Module		1.3 in		0.9 in	33 mm	0.37 in			8-DIP Module 1/16 Brick	Active Low Enable	75 V			22.9 mm	9.5 mm

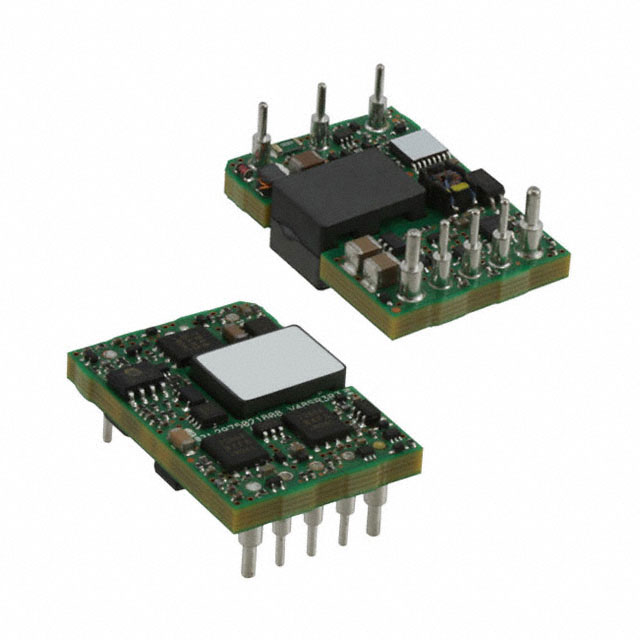

Delta Electronics V48SR3R320NRFA	Through Hole	90.5 %	66 W	1	20 A	ITE (Commercial)	OCP OTP OVP Remote On/Off UVLO	2250 VDC	36 V	3.3 V	Isolated Module	9.4 mm	1.3 in	22.9 mm	0.9 in	33 mm	0.37 in			8-DIP Module 1/16 Brick	Active Low Enable	75 V
