8691 Series
Manufacturer: Belden Inc.
Beta
⌘K

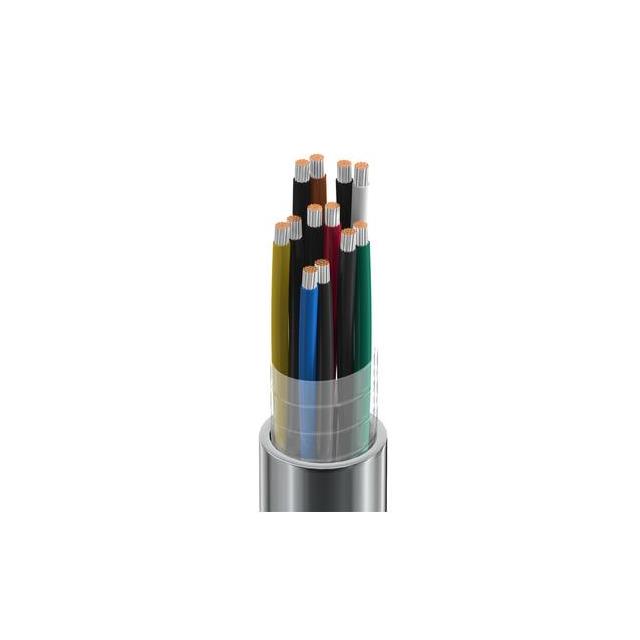

MULTI-PAIR 12COND 18AWG
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Number of Conductors | Ratings | Jacket (Insulation) Thickness | Jacket (Insulation) Thickness | Voltage | Usage | Cable Type | Conductor Insulation | Jacket (Insulation) Material | Conductor Material | Jacket Color | Wire Gauge | Conductor Strand [custom] | Conductor Strand [custom] | Jacket (Insulation) Diameter | Jacket (Insulation) Diameter | Length | Length |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Belden Inc. | 80 °C | -20 ░C | 12 | UL Style 2464 | 0.813 mm | 0.032 in | 300 VDC | Audio Control Instrumentation | Multi-Pair | Poly-Vinyl Chloride (PVC) | Poly-Vinyl Chloride (PVC) | Copper Tinned | Chrome | 18 AWG | 16 | 30 AWG | 11 mm | 0.433 " | 304.8 m | 1000 ft |
