Terminal Block Tools & Accessories D-STTB 2.5/4P
Terminal Block Tools & Accessories D-STTB 2.5/4P
| Part | Material Flammability Rating | Material - Insulation | Stripping Length | Voltage - UL | Current - UL | Terminal - Width [y] | Color | Features | Voltage - IEC | Current - IEC | Number of Positions | Wire Gauge or Range - AWG [Max] | Wire Gauge or Range - AWG [Min] | Wire Gauge or Range - mm² [Min] | Wire Gauge or Range - mm² [Max] | Termination Style | Type | Number of Levels | Number of Levels | For Use With/Related Products | Housing Color | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

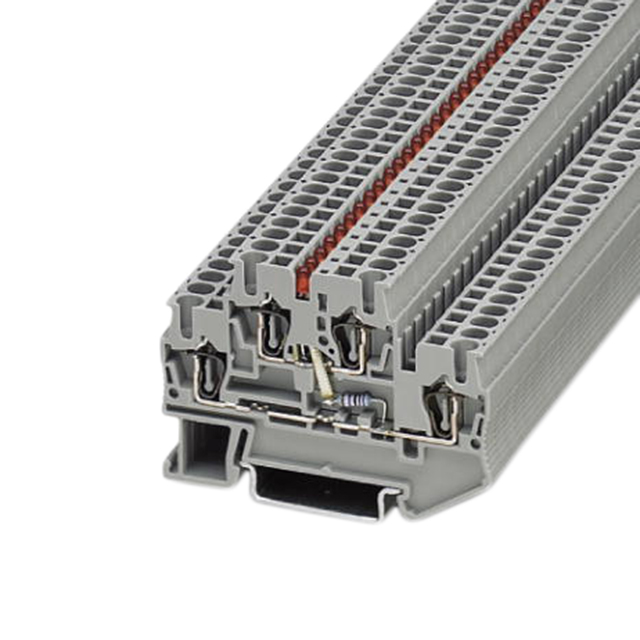

 Phoenix Contact | UL94 V-0 | Nylon Polyamide (PA) | 10 mm | 300 V | 20 A | 5.2 mm | Gray | LED | 500 V | 22 A | 4 | 28 AWG | 12 AWG | 0.08 mm² | 4 mm² | Push In Spring | Feed Through | 2 | Connected | |||

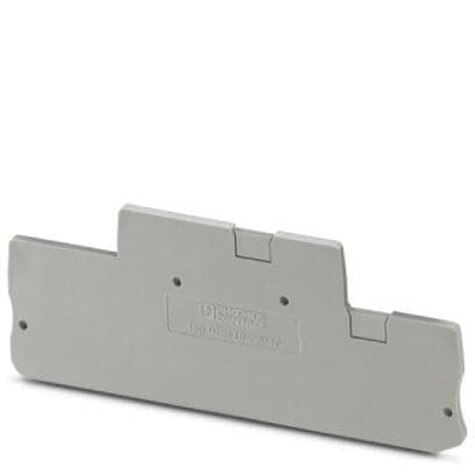

 Phoenix Contact | Green | End Plate | CLIPLINE STTB Series | |||||||||||||||||||
 Phoenix Contact | 5.2 mm | Green Yellow | 6 | 28 AWG | 12 AWG | 0.08 mm² | 4 mm² | Push In Spring | Ground Earth | 2 | Connected | |||||||||||
 Phoenix Contact | 20 A | 5.2 mm | 500 V | 22 A | 4 | 28 AWG | 12 AWG | 0.08 mm² | 4 mm² | Plug Receptacles Push In Spring | Plug Connection | 2 | Gray | DIN Rail | ||||||||
 Phoenix Contact | 600 V | 30 A | 6.2 mm | Blue | 500 V | 30 A | 4 | 28 AWG | 10 AWG | 0.08 mm² | 6 mm² | Push In Spring | Feed Through | 2 | Connected | |||||||
 Phoenix Contact | 600 V | 20 A | 5.2 mm | Gray | Diode | 500 V | 22 A | 4 | 28 AWG | 12 AWG | 0.08 mm² | 4 mm² | Push In Spring | Feed Through | 2 | Connected |
