9TS48 Series
Manufacturer: Sanyo Denki America Inc.
Beta
⌘K

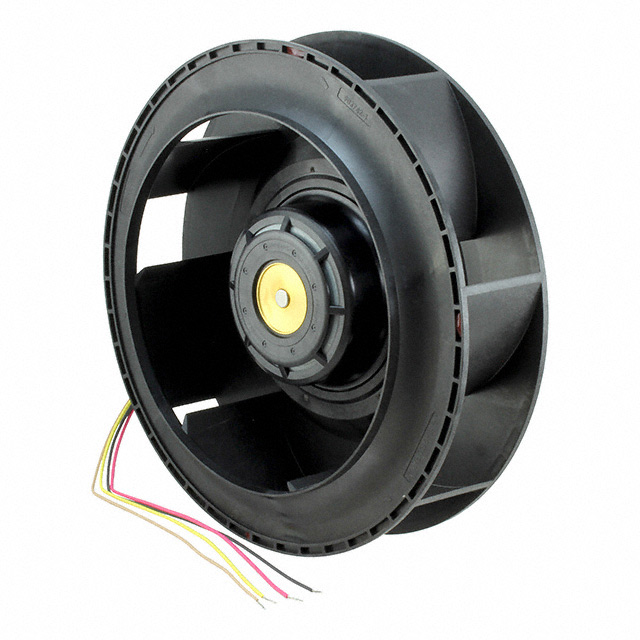

FAN IMP MTRZD 225X99MM 48VDC
| Part | Current Rating (Amps) | Material - Blade | Material - Frame | Lifetime @ Temp. | Air Flow | Air Flow | Voltage Range [Min] | Voltage Range [Max] | Operating Temperature [Max] | Operating Temperature [Max] | Operating Temperature [Min] | Operating Temperature [Min] | Weight | Weight | Voltage - Rated | Static Pressure | Static Pressure | Bearing Type | Fan Type | Features | Power (Watts) | RPM | Approval Agency | Noise | Termination | Width [y] | Size / Dimension [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Sanyo Denki America Inc. | 3.65 A | Plastic | Aluminum | Varies Based on Temperature | 991.8 CFM | 27.77 m³/min | 37 VDC | 72 VDC | 60 °C | 60 °C | -4 °F | -20 ░C | 2.6 lbs | 1.2 kg | 48 VDC | 3.457 in H2O | 861.1 Pa | Ball | Motorized Impellers | PWM Control Speed Sensor (Tach) | 175.2 W | 3550 RPM | CSA TUV UL | 74.5 dB(A) | 4 Wire Leads | 99 mm | 225 mm |
