HSD-04F Series
Manufacturer: Adam Tech
Beta
⌘K
CONN FAKRA HIGH SPEED DATA 4POS
| Part | Body Material | Operating Temperature [Min] | Operating Temperature [Max] | Center Contact Plating | Dielectric Material | Mating Cycles | Frequency - Max [Max] | Mounting Type | Impedance | Connector Style | Connector Type | Shield Termination | Number of Ports | Housing Color | Center Contact Material | Fastening Type | Features | Contact Termination |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

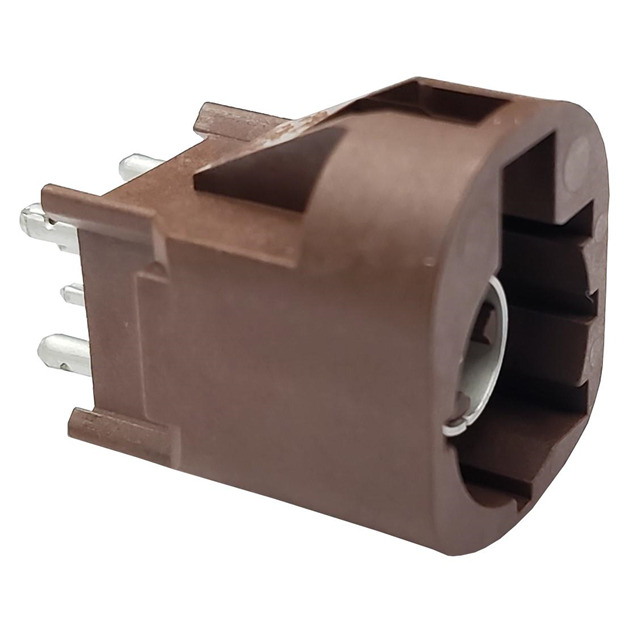

 Adam Tech | Brass | -40 C | 105 ░C | Gold | Polyamide (PA) Nylon | 25 | 2 GHz | Through Hole | 100 Ohms | Fakra HSD® Quadraxial | Plug Male Pin | Solder | 1 | Brown | Brass | Latch Lock | Code F | Solder |

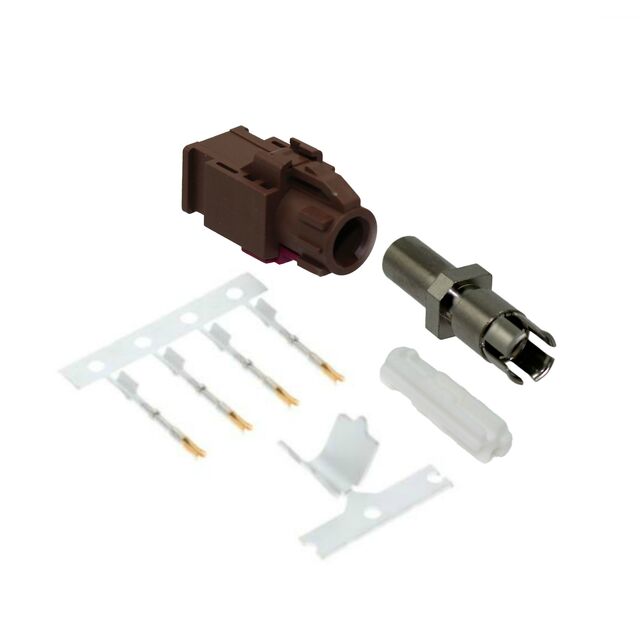

 Adam Tech | Brass | -40 C | 105 ░C | Gold | Polybutylene Terephthalate (PBT) | 25 | 2 GHz | Free Hanging (In-Line) | 100 Ohms | Fakra HSD® Quadraxial | Female Socket Jack | Crimp | 1 | Brown | Phosphor Bronze | Latch Lock | Code F | Solder |
