392-110 Series

Manufacturer: EDAC Inc.

Catalog

CONN EDGE DUAL FML 110POS 0.100

Part	Termination Rows [custom]	Material - Insulation	Color	Operating Temperature [Min]	Operating Temperature [Max]	Pitch	Pitch	Card Thickness [Max]	Card Thickness [Min]	Contact Finish	Contact Type	Number of Positions	Read Out	Termination	Number of Positions/Bay/Row	Features	Mounting Type	Gender	Number of Rows [custom]	Card Type	Contact Finish Thickness	Contact Finish Thickness	Contact Material	Flange Feature	Flange Feature [diameter]	Flange Feature [diameter]
EDAC Inc. 392-110-556-202	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55	Card Extender	Board Edge Straddle Mount	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 392-110-542-202	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Wire Wrap	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "

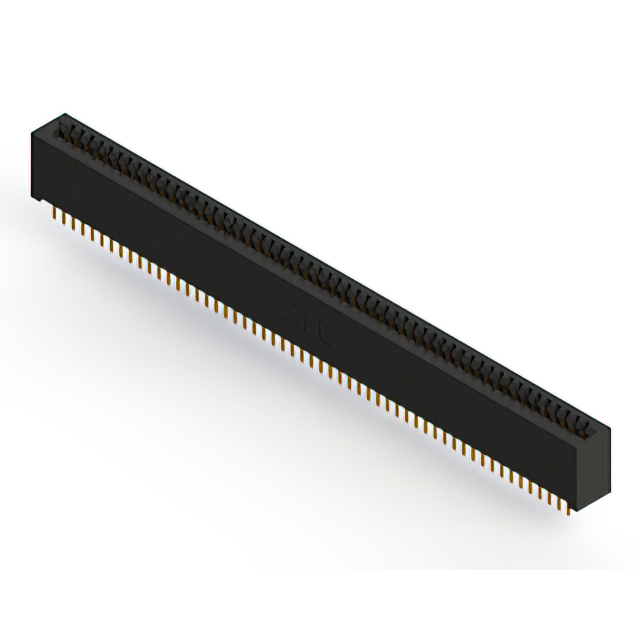

EDAC Inc. 392-110-521-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy
EDAC Inc. 392-110-523-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy
EDAC Inc. 392-110-542-201	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Wire Wrap	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy
EDAC Inc. 392-110-524-207	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
EDAC Inc. 392-110-524-204	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	3.96 mm	0.156 "
EDAC Inc. 392-110-520-203	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55		Through Hole	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Floating Bobbin Flush Mount	2.95 mm	0.116 "
EDAC Inc. 392-110-560-202	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55	Card Extender	Board Edge Straddle Mount	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount Top Opening Unthreaded	3.25 mm	0.128 "
EDAC Inc. 392-110-556-207	2	Polyester Thermoplastic	Black	-40 C	105 ░C	0.1 "	2.54 mm	0.07 in 1.78 mm	0.054 in 1.37 mm	Gold	Cantilever	110	Dual	Solder	55	Card Extender	Board Edge Straddle Mount	Female	2	Non Specified - Dual Edge	0.25 Ám	10 Áin	Copper Alloy	Flush Mount M3 Threaded Insert Top Opening
