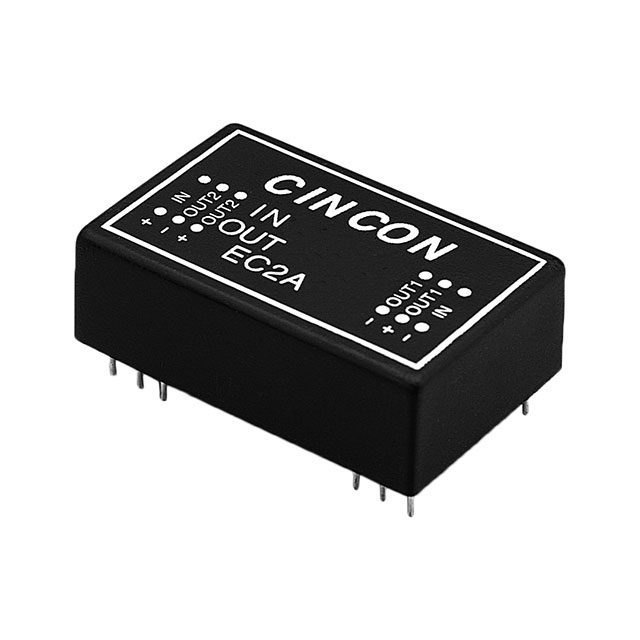

EC2A Series

Manufacturer: Cincon Electronics Co. LTD

Catalog

DC DC CONVERTER 15V 1.5W

Part	Features	Applications	Current - Output (Max) [Max]	Voltage - Input (Min) [Min]	Efficiency	Voltage - Output 1	Voltage - Isolation	Mounting Type	Type	Package / Case	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [x]	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Power (Watts)	Voltage - Input (Max) [Max]	Current - Output (Max)	Voltage - Output 2
Cincon Electronics Co. LTD EC2A33H	SCP	ITE (Commercial)	100 mA	25.2 V	50 %	15 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	71 °C	-25 °C	1.5 W	30.8 V
Cincon Electronics Co. LTD EC2A15H	SCP	ITE (Commercial)		10.8 V	50 %	15 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	13.2 V	50 mA	-15 V
Cincon Electronics Co. LTD EC2A04H	SCP	ITE (Commercial)		4.5 V	50 %	12 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	5.5 V	60 mA	-12 V
Cincon Electronics Co. LTD EC2A22H	SCP	ITE (Commercial)	125 mA	21.6 V	50 %	12 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	71 °C	-25 °C	1.5 W	26.4 V
Cincon Electronics Co. LTD EC2A14M	SCP	ITE (Commercial)		10.8 V	50 %	12 V	500 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	13.2 V	60 mA	-12 V
Cincon Electronics Co. LTD EC2A34H	SCP	ITE (Commercial)		25.2 V	50 %	12 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	30.8 V	60 mA	-12 V
Cincon Electronics Co. LTD EC2A25M	SCP	ITE (Commercial)		21.6 V	50 %	15 V	500 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	26.4 V	50 mA	-15 V
Cincon Electronics Co. LTD EC2A45H	SCP	ITE (Commercial)		43.2 V	50 %	15 V	3000 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	2	71 °C	-25 °C	1.5 W	52.8 V	50 mA	-15 V
Cincon Electronics Co. LTD EC2A21M	SCP	ITE (Commercial)	0.3 A	21.6 V	50 %	5 V	500 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	71 °C	-25 °C	1.5 W	26.4 V
Cincon Electronics Co. LTD EC2A42M	SCP	ITE (Commercial)	125 mA	43.2 V	50 %	12 V	500 V	Through Hole	Isolated Module	24-DIP Module 14 Leads	0.8 "	0.4 "	31.8 mm	10.2 mm	20.3 mm	1.25 in	1	71 °C	-25 °C	1.5 W	52.8 V
