CWN-350 Series

Catalog

CONN HEADER VERT 26POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish - Post	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Insulation Material	Contact Length - Mating [x]	Contact Length - Mating [x]	Contact Finish - Mating	Number of Positions Loaded	Shrouding	Mounting Type	Contact Type	Termination	Insulation Color	Number of Positions	Pitch - Mating	Pitch - Mating	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Material	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Height [z]	Insulation Height [z]	Contact Shape	Connector Type	Fastening Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating
CW Industries CWN-350-26-0021	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	26	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.76 Ám	30 Áin	UL94 V-0
CW Industries CWN-350-40-0021	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	40	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.76 Ám	30 Áin	UL94 V-0

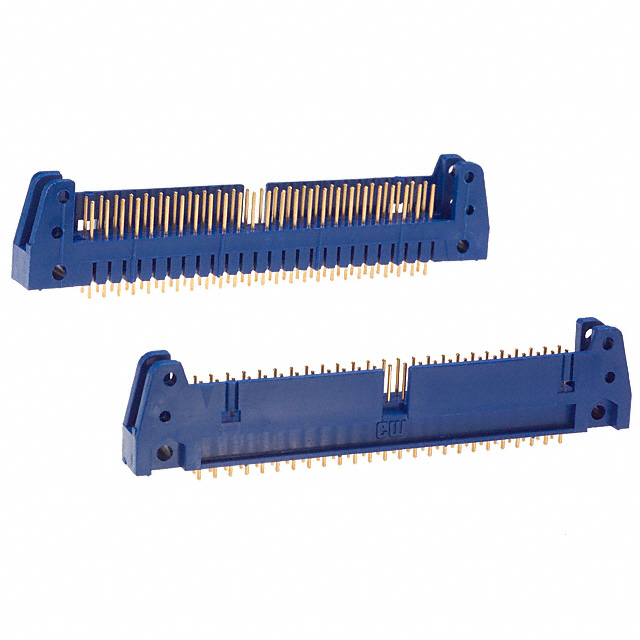

CW Industries CWN-350-50-0021	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	50	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.76 Ám	30 Áin	UL94 V-0
CW Industries CWN-350-50-0000	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	50	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.25 µm	10 µin	UL94 V-0
CW Industries CWN-350-26-0000	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	26	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.25 µm	10 µin	UL94 V-0
CW Industries CWN-350-14-0000	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	14	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.25 µm	10 µin	UL94 V-0
CW Industries CWN-350-16-0000	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	16	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.25 µm	10 µin	UL94 V-0
CW Industries CWN-350-40-0000	1.27 µm	50 µin	Nickel	2	2.29 mm	0.09 in	Thermoplastic	0.24 in	6.1 mm	Gold	All	Shrouded - 4 Wall	Through Hole	Male Pin	Solder	Blue	40	0.1 "	2.54 mm	Board to Cable/Wire	0.1 in	2.54 mm	Phosphor Bronze	-55 C	125 °C	0.681 in	17.3 mm	Circular	Header	Push-Pull	0.25 µm	10 µin	UL94 V-0
