9BM Type Series

Catalog

BLOWERS & CENTRIFUGAL FANS DC BLOWER, 97X33MM, 24VDC, LOCKED ROTOR SENSOR

Part	Operating Temperature [Min]	Operating Temperature [Max]	Width	Bearing Type	Features	Termination	Weight	Weight	Power (Watts)	Voltage - Rated	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	RPM	Air Flow	Air Flow	Approval Agency	Fan Type	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Current Rating (Amps)	Material - Frame	Lifetime @ Temp.	Material - Blade	Noise

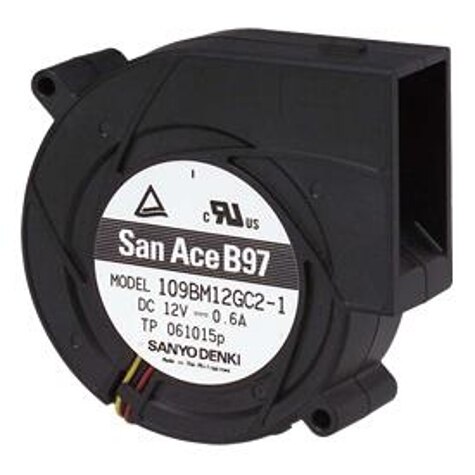

Sanyo Denki America Inc. 109BM24MD2-1	-20 ░C	70 °C	33 mm	Ball	Locked Rotor Sensor	3 Wire Leads	175.09 g	0.386 lb	3.6 W	24 VDC	94.5 mm	97.2 mm	Rectangular/Rounded	2700 RPM	20.5 CFM	0.574 m³/min	CSA TUV UL	Blower	119.1 Pa	0.478 in H2O
Sanyo Denki America Inc. 109BM24HD2-1	-20 ░C	70 °C	33 mm	Ball	Locked Rotor Sensor	3 Wire Leads	175.09 g	0.386 lb	6.24 W	24 VDC	94.5 mm	97.2 mm	Rectangular/Rounded	3300 RPM	25.1 CFM	0.703 m³/min	CSA TUV UL	Blower	204 Pa	0.819 in H2O	12	27.6 VDC	0.26 A	Plastic	40000 Hrs	Plastic	48.5 dB(A)
Sanyo Denki America Inc. 109BM12GD2-1	-20 ░C	70 °C	33 mm	Ball	Locked Rotor Sensor	3 Wire Leads	175.09 g	0.386 lb	7.2 W	12 VDC	94.5 mm	97.2 mm	Rectangular/Rounded	3800 RPM	28.9 CFM	0.809 m³/min	CSA TUV UL	Blower	281 Pa	1.129 in H2O	7 V	13.8 VDC	600 mA	Plastic	40000 Hrs	Plastic	51.5 dB
Sanyo Denki America Inc. 109BM12HD2-1	-20 ░C	70 °C	33 mm	Ball	Locked Rotor Sensor	3 Wire Leads	175.09 g	0.386 lb	4.8 W	12 VDC	94.5 mm	97.2 mm	Rectangular/Rounded	3300 RPM	25.1 CFM	0.703 m³/min	CSA TUV UL	Blower	204 Pa	0.819 in H2O							48.5 dB(A)

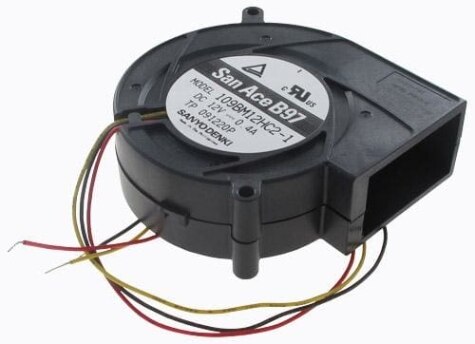

Sanyo Denki America Inc. 109BM24GC2-1	-20 ░C	70 °C	33 mm	Ball	Locked Rotor Protection Speed Sensor (Tach)	3 Wire Leads	175.09 g	0.386 lb	7.44 W	24 VDC	94.4 mm	97.2 mm	Rectangular/Rounded	3800 RPM	28.9 CFM	0.809 m³/min	CSA TUV UL	Blower	281 Pa	1.129 in H2O							51.5 dB
