TUSB522 Series

Catalog

IC REDRIVER DUAL USB 3.1 24VQFN

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Type	Input	Supplier Device Package	Capacitance - Input [custom]	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Number of Channels	Output	Package / Case	Data Rate (Max) [Max]	Applications	Current - Supply	Signal Conditioning	Supplied Contents	Secondary Attributes	Function	Utilized IC / Part	Primary Attributes [custom]	Contents
Texas Instruments TUSB522PRGET	3.6 V	3 V	Buffer ReDriver	Differential	24-VQFN (4x4)	1.25 pF	70 °C	0 °C	Surface Mount	2	Differential	24-VFQFN Exposed Pad	5 Gbps	USB	98 mA	Input Equalization Output De-Emphasis
Texas Instruments TUSB522PIRGET	3.6 V	3 V	Buffer ReDriver	Differential	24-VQFN (4x4)	1.25 pF	85 °C	-40 C	Surface Mount	2	Differential	24-VFQFN Exposed Pad	5 Gbps	USB	98 mA	Input Equalization Output De-Emphasis
Texas Instruments TUSB522PRGER	3.6 V	3 V	Buffer ReDriver	Differential	24-VQFN (4x4)	1.25 pF	70 °C	0 °C	Surface Mount	2	Differential	24-VFQFN Exposed Pad	5 Gbps	USB	98 mA	Input Equalization Output De-Emphasis

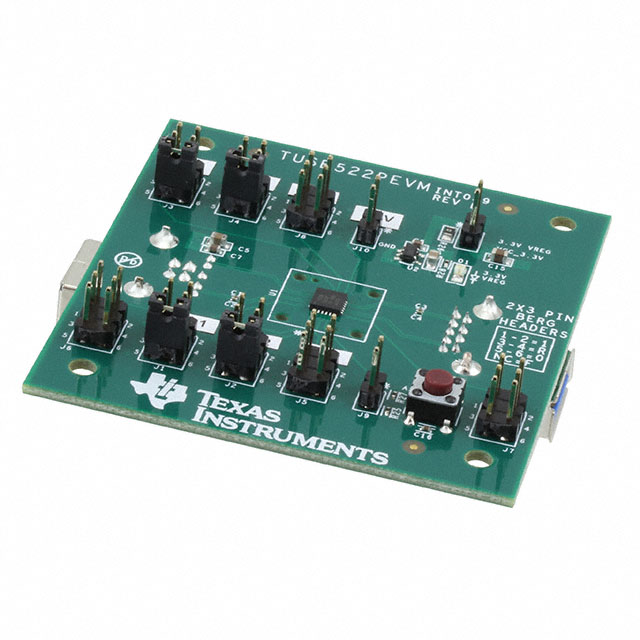

Texas Instruments TUSB522PEVM			Interface														Board(s)	On-Board LEDs	Re-Driver	TUSB522P	2-Channel (Dual)	Board(s)
Texas Instruments TUSB522PIRGER	3.6 V	3 V	Buffer ReDriver	Differential	24-VQFN (4x4)	1.25 pF	85 °C	-40 C	Surface Mount	2	Differential	24-VFQFN Exposed Pad	5 Gbps	USB	98 mA	Input Equalization Output De-Emphasis
