G3VM-60 Series

Catalog

SSR RELAY SPST-NO 90MA 0-400V

Part	Supplier Device Package	Load Current	Mounting Type	Output Type	Termination Style	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	On-State Resistance (Max) [Max]	Voltage - Load [Max]	Voltage - Load [Min]	Package / Case	Package / Case	Voltage - Input	Package / Case

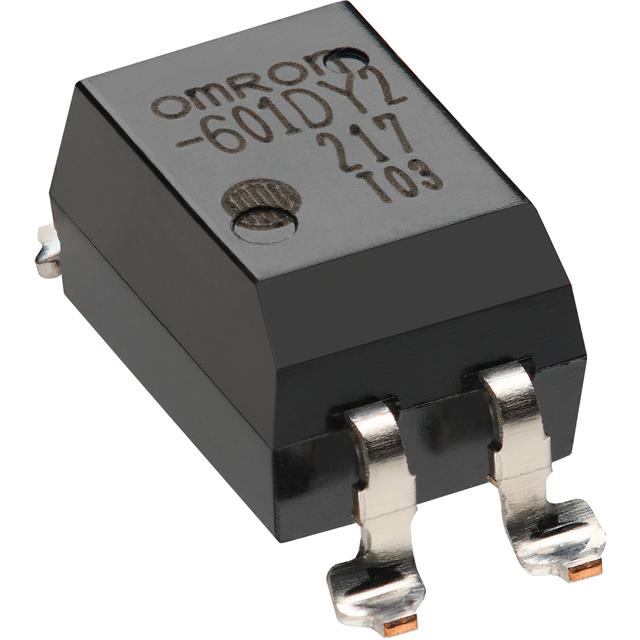

Omron Electronics Inc-EMC Div G3VM-601DY2	4-SMD	90 mA	Surface Mount	AC DC	Gull Wing	4-SMD Gull Wing	85 °C	-40 °C	60 Ohm
Omron Electronics Inc-EMC Div G3VM-601G1(TR)	4-SOP	70 mA	Surface Mount	AC DC	Gull Wing	4-SOP	85 °C	-40 °C	60 Ohm	600 V	0 V	0.173 in	4.4 mm
Omron Electronics Inc-EMC Div G3VM-601FR	8-SMD	600 mA	Surface Mount	AC DC	Gull Wing	8-SMD	85 °C	-40 °C	2 Ohm	600 V	0 V	0.3 in	7.62 mm	1.64 VDC
Omron Electronics Inc-EMC Div G3VM-601DY(TR)	4-SMT	90 mA	Surface Mount	AC DC	Gull Wing	4-SMD	85 °C	-40 °C	60 Ohm	600 V	0 V			1.63 VDC	0.3 in 7.62 mm
Omron Electronics Inc-EMC Div G3VM-601DY2(TR05)	4-SMD	90 mA	Surface Mount	AC DC	Gull Wing	4-SMD Gull Wing	85 °C	-40 °C	60 Ohm

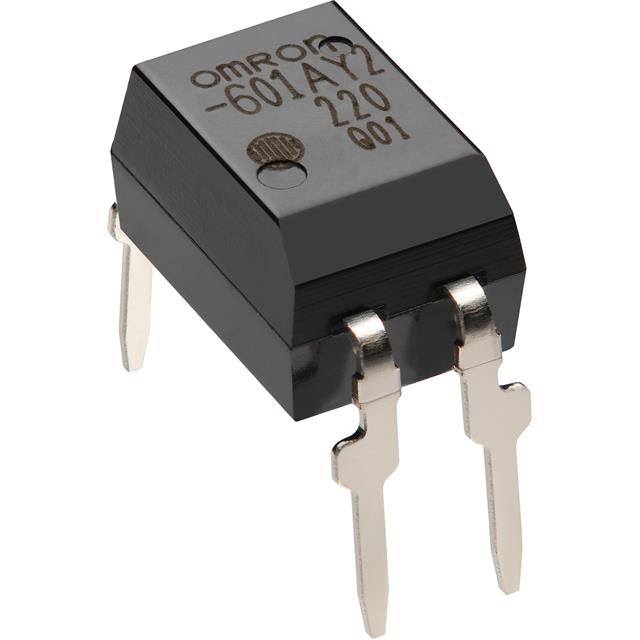

Omron Electronics Inc-EMC Div G3VM-601AY2	4-DIP	90 mA	Through Hole	AC DC	PC Pin	4-DIP (0.300" 7.62mm)	85 °C	-40 °C	60 Ohm
Omron Electronics Inc-EMC Div G3VM-601CR	8-DIP	600 mA	Through Hole	AC DC	PC Pin	8-DIP	85 °C	-40 °C	2 Ohm	600 V	0 V	0.3 in	7.62 mm	1.64 VDC
