1437653 Series

Catalog

CONN TERMINAL BLOCK 10 POS 9.52MM SOLDER ST THRU-HOLE 25A/CONTACT PACKAGE

Part	Mounting Type	Material Flammability Rating	Terminal Screw Material	Operating Temperature	Material - Insulation	Top Termination	Pitch	Pitch	Current Rating (Amps)	Bottom Termination	Number of Rows	Wire Gauge [Max]	Wire Gauge [Min]	Number of Wire Entries	Terminal Block Type	Voltage Rating	Number of Circuits	Barrier Type	Color	Terminal Screw Finish	Features

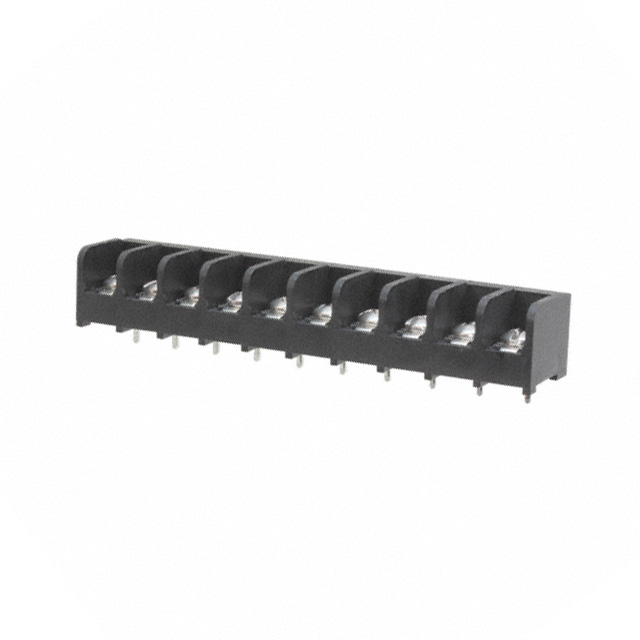

TE Connectivity AMP Connectors 3-1437653-8	Through Hole	UL94 V-0	Stainless Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	10	Barrier Block	300 VDC	10	3 Wall (Tri)	Black

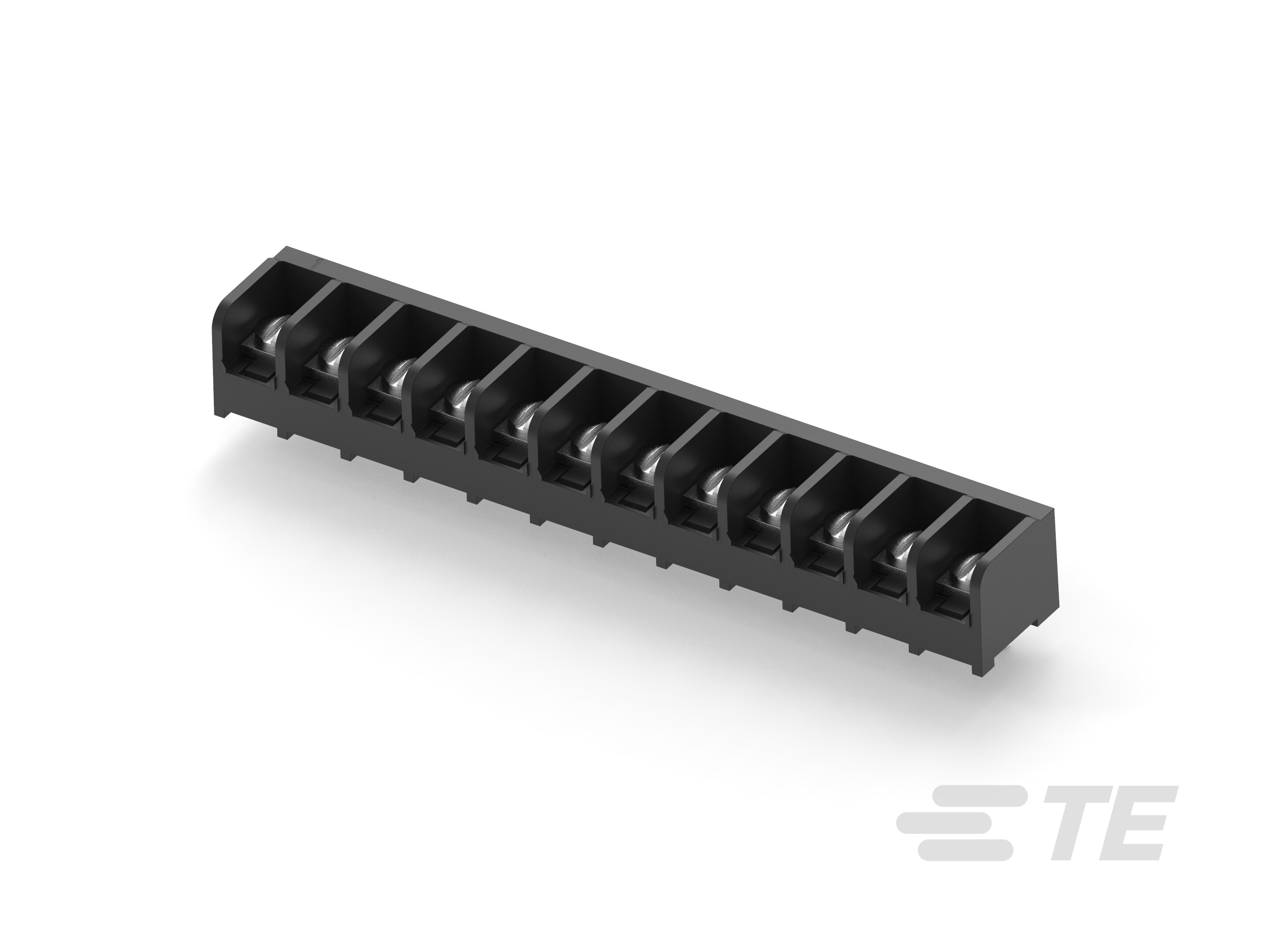

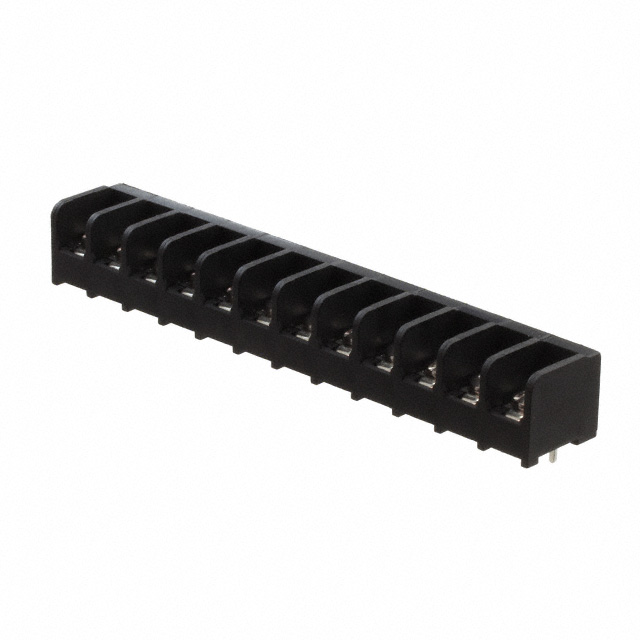

TE Connectivity AMP Connectors 5-1437653-8	Through Hole	UL94 V-0	Stainless Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	12	Barrier Block	300 VDC	12	3 Wall (Tri)	Black
TE Connectivity AMP Connectors 1-1437653-6	Chassis Panel Through Hole	UL94 V-0	Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	8	Barrier Block	300 VDC	8	3 Wall (Tri)	Black	Clear Chromate Zinc	Flange

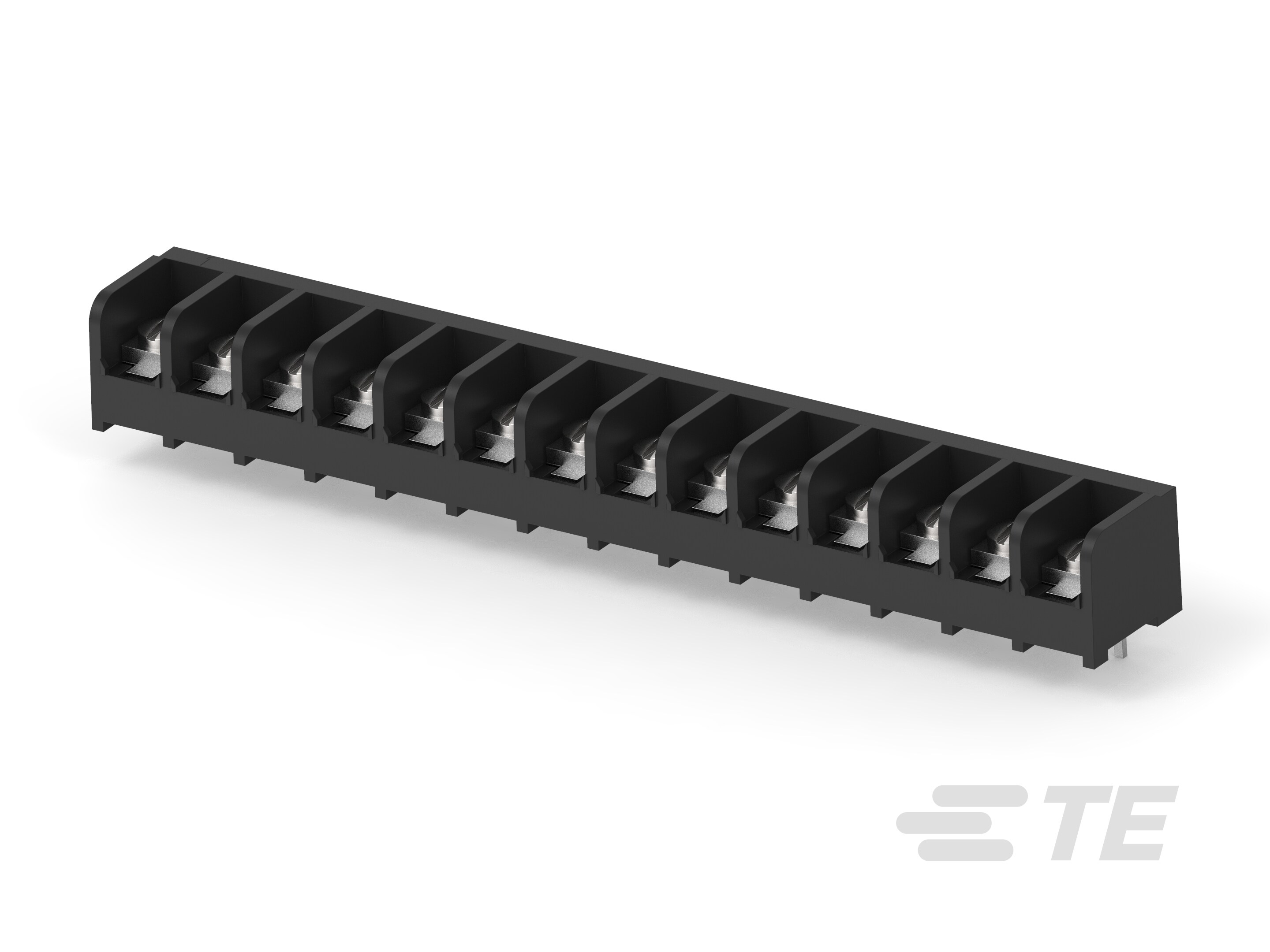

TE Connectivity AMP Connectors 7-1437653-0	Through Hole	UL94 V-0	Stainless Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	14	Barrier Block	300 VDC	14	3 Wall (Tri)	Black

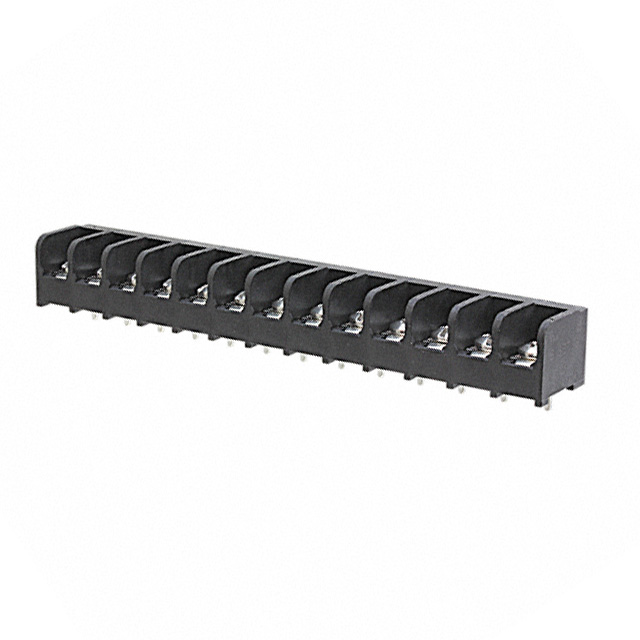

TE Connectivity AMP Connectors 6-1437653-5	Through Hole	UL94 V-0	Stainless Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	13	Barrier Block	300 VDC	13	3 Wall (Tri)	Black

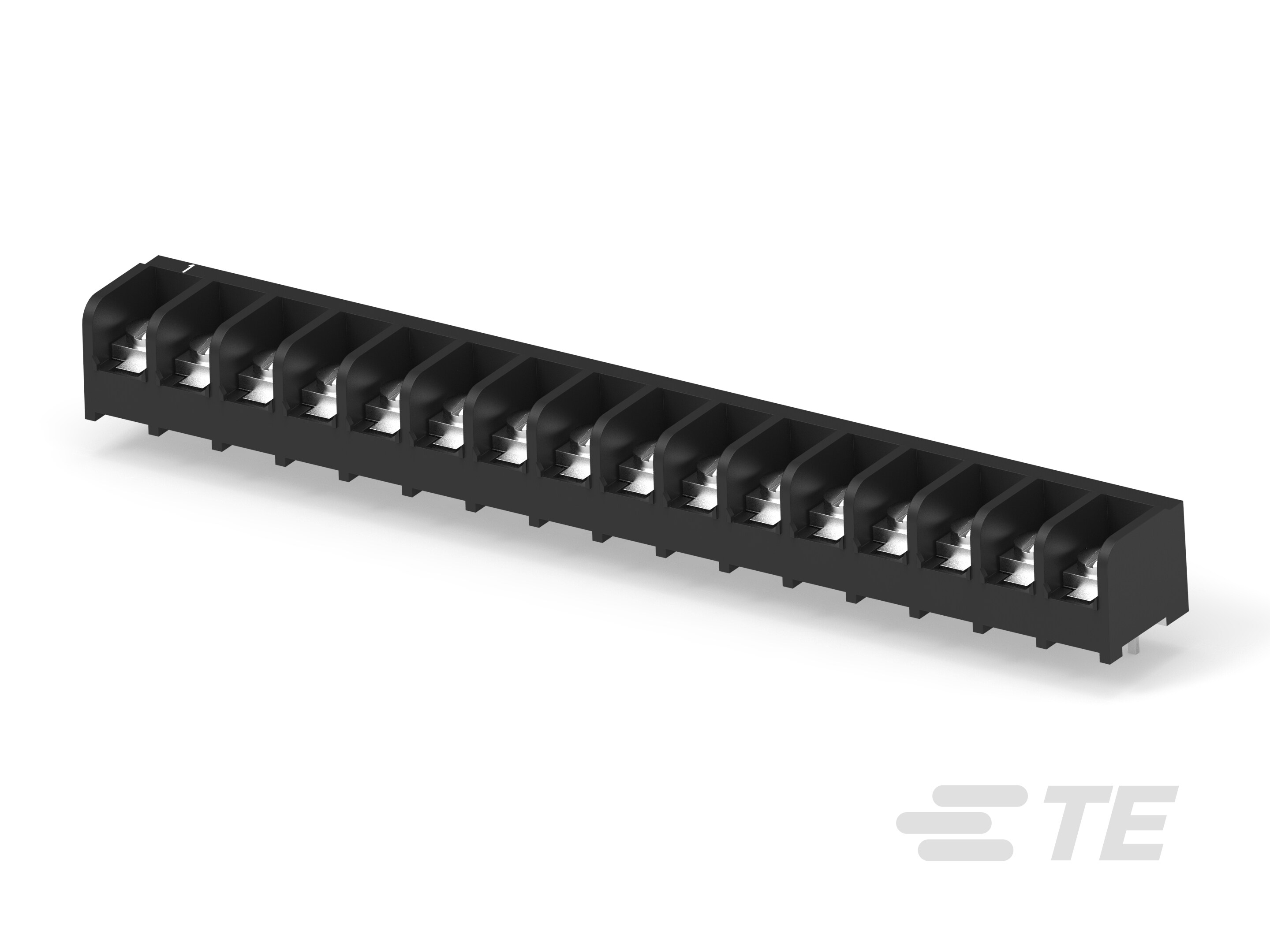

TE Connectivity AMP Connectors 9-1437653-4	Through Hole	UL94 V-0	Stainless Steel	105 C	Thermoplastic	Screws	9.53 mm	0.375 in	25 A	PC Pin	1	22 AWG	12 AWG	16	Barrier Block	300 VDC	16	3 Wall (Tri)	Black
