LN242 Series

Catalog

LED RED SQUARE TYPE LED T/H

Part	Wavelength - Peak	Supplier Device Package	Lens Size [y]	Lens Size [x]	Millicandela Rating	Package / Case	Configuration	Mounting Type	Color	Current - Test	Height (Max) [Max] [z]	Lens Style	Voltage - Forward (Vf) (Typ)	Height (Max) [Max]	Lens Transparency	Lens Color

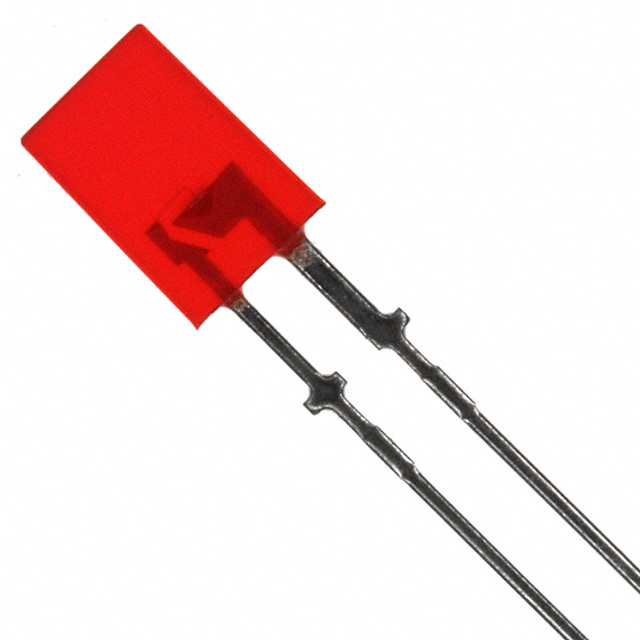

Panasonic Industrial Automation Sales LN242RPH	700 nm	Square Type LED	2 mm	5 mm	0.4 mcd	Radial	Standard	Through Hole	Red	20 mA	12.2 mm	Rectangle with Flat Top	2.2 V

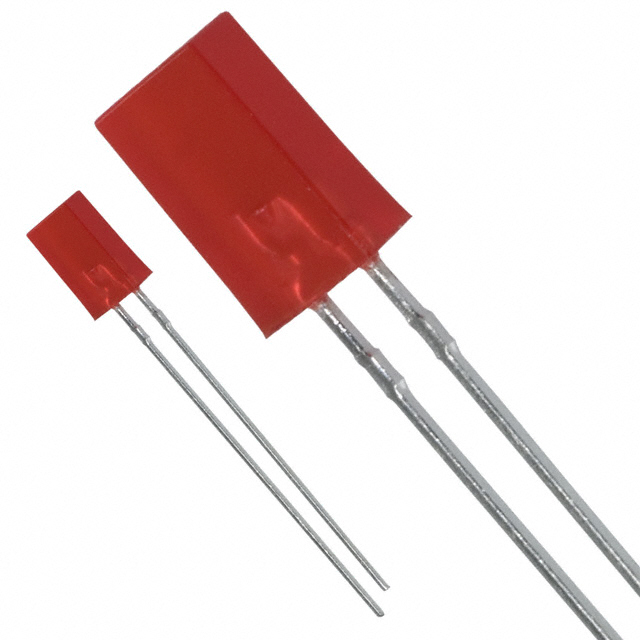

Panasonic Industrial Automation Sales LN242RPX	700 nm	Square Type LED	2 mm	5 mm	0.4 mcd	Radial	Standard	Through Hole	Red	15 mA		Rectangle with Flat Top	2.2 V	7.7 mm	Diffused	Red
