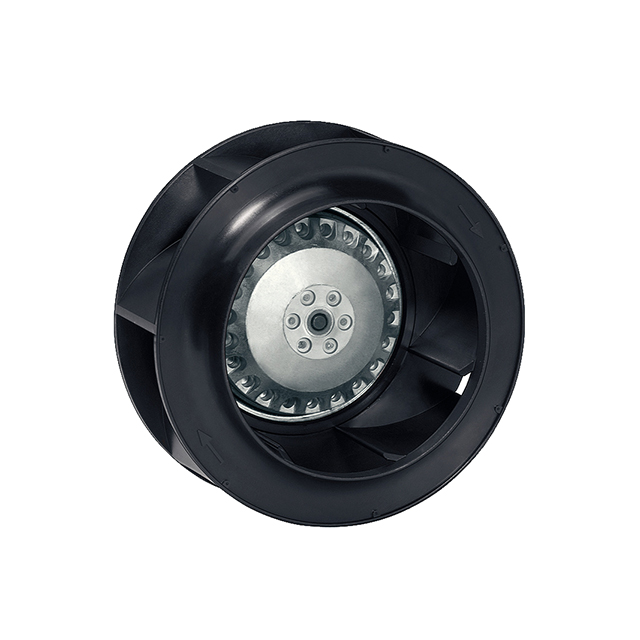

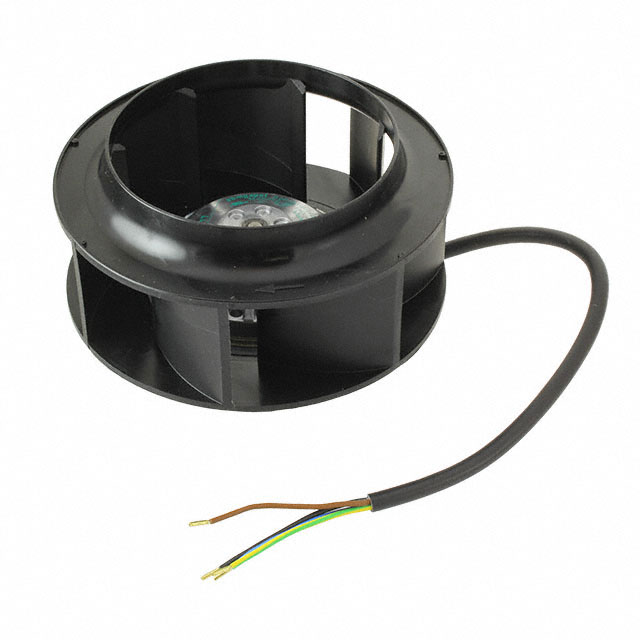

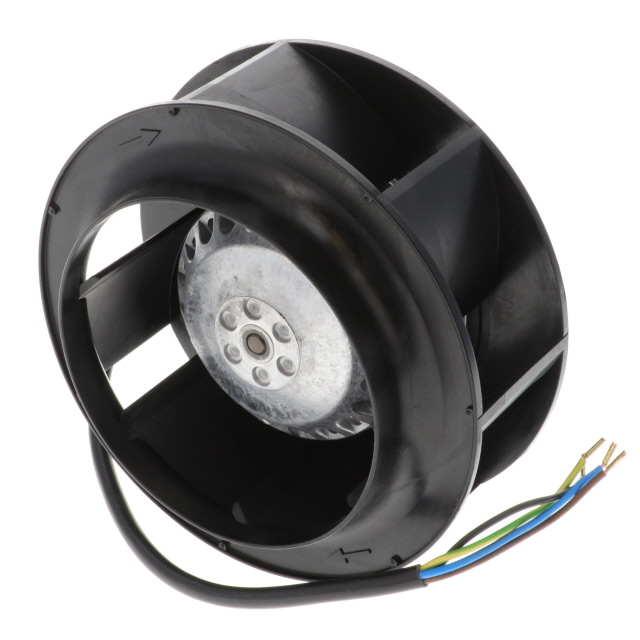

R2E133 Series
Manufacturer: ebm-papst Inc.
Beta
⌘K
AC MOTORIZED IMPELLER
| Part | Material - Blade | Fan Type | Width [x] | Approval Agency | Power (Watts) | Weight [custom] | Weight [custom] | Size / Dimension [diameter] | Size / Dimension | Termination | Air Flow | Air Flow | Bearing Type | Voltage - Rated | Current Rating (Amps) | Features | Operating Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Operating Temperature [Max] | Ingress Protection | RPM |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 ebm-papst Inc. | Polyamide (PA) Nylon | Motorized Impellers | 91 mm | CE CSA UL | 30 Watts | 680.4 g | 1.5 lbs | 133 mm | Round | 2 Wire Leads | 5.68 mł/min | 203 CFM | Ball | 115 VAC | ||||||||
 ebm-papst Inc. | Plastic | Motorized Impellers | 60.6 mm | CE CSA UL VDE | 20 W | 133.4 mm | Round | 4 Wire Leads with Splice Terminals | Ball | 115 VAC | 0.18 A | Capacitor Thermal Overload Protector (TOP) | -25 °C | -25 °C | 65 °C | 65 °C | IP44 | |||||
 ebm-papst Inc. | Polyamide (PA) Nylon Fiberglass Reinforced | Motorized Impellers | 91 mm | CCC CE EAC | 27 W | 680.4 g | 1.5 lbs | 133 mm | Round | Ball | 230 VAC | -25 °C | 60 °C | IP44 | 3300 RPM | |||||||
 ebm-papst Inc. | Plastic | Motorized Impellers | 73 mm | CCC CE EAC | 28 W | 133.4 mm | Round | 4 Wire Leads with Splice Terminals | Ball | 230 VAC | Capacitor Thermal Overload Protector (TOP) | -25 °C | -25 °C | 65 °C | 65 °C | IP44 | 3200 RPM |
