HDSP-860 Series
Manufacturer: Broadcom Limited
Beta
⌘K

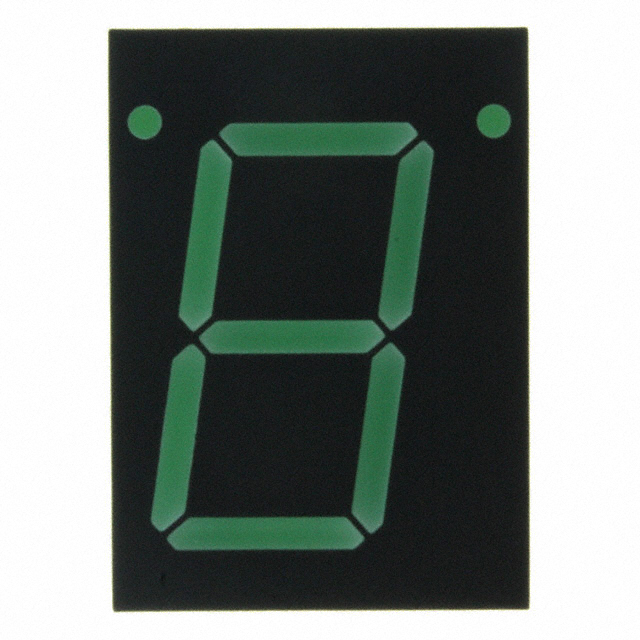

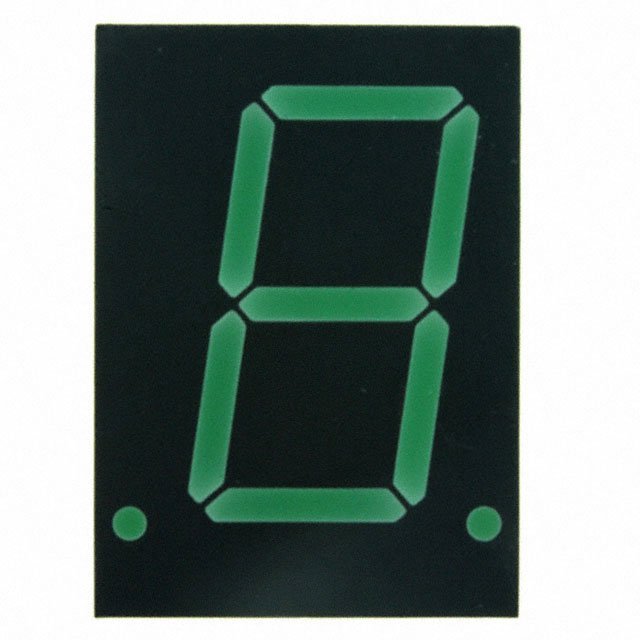

DISPLAY 7SEG 0.8" SGL GRN 18DIP
| Part | Wavelength - Peak | Number of Characters [custom] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Color | Common Pin | Millicandela Rating | Digit/Alpha Size | Digit/Alpha Size | Current - Test | Display Type | Power Dissipation (Max) [Max] | Package / Case | Voltage - Forward (Vf) (Typ) |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Broadcom Limited | 566 nm | 1 | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | Green | Common Anode | 1.5 mcd | 20.32 mm | 0.8 in | 10 mA | 7-Segment | 105 mW | 18-DIP (0.600" 15.24mm) 12 Leads | 2.1 V |
 Broadcom Limited | 566 nm | 1 | 0.33 in | 1.09 " | 0.786 in | 8.38 mm | 19.96 mm | 27.69 mm | Green | Common Cathode | 1.5 mcd | 20.32 mm | 0.8 in | 10 mA | 7-Segment | 105 mW | 18-DIP (0.600" 15.24mm) 12 Leads | 2.1 V |
