XZDGK55 Series

Manufacturer: SunLED

Catalog

LED GREEN CLEAR CHIP SMD

Part	Millicandela Rating	Wavelength - Peak	Current - Test	Wavelength - Dominant	Lens Style	Viewing Angle	Voltage - Forward (Vf) (Typ)	Color	Supplier Device Package	Configuration	Size / Dimension [y]	Size / Dimension [x]	Mounting Type	Lens Size [x]	Lens Size [y]	Lens Color	Package / Case	Lens Transparency	Height (Max) [z]	Lens Size [diameter]	Height (Max) [Max] [z]

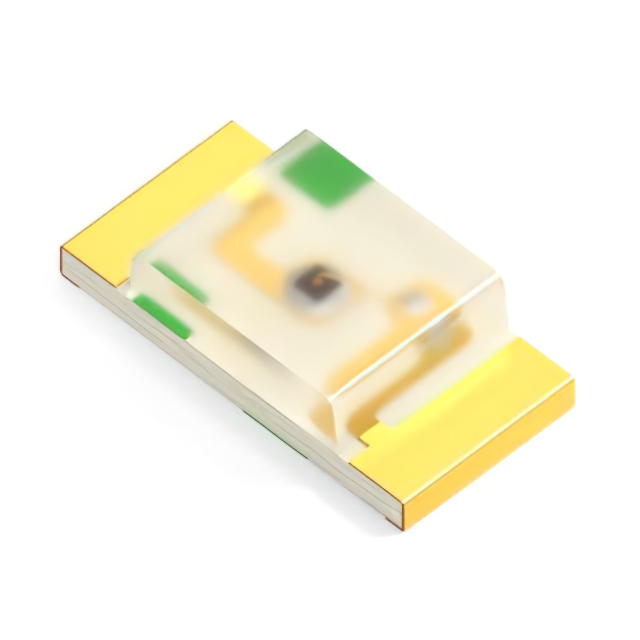

SunLED XZDGK55W-1	347 mcd	515 nm	20 mA	525 nm	Rectangle with Flat Top	120 °	3.3 V	Green	Chip LED	Standard	1.6 mm	3.2 mm	Surface Mount	1.9 mm	1.6 mm	Colorless	1206 (3216 Metric)	Clear
SunLED XZDGK55W-A2	995 mcd	515 nm	20 mA	525 nm	Round with Flat Top	70 °	3.3 V	Green	2-SMD	Standard	1.6 mm	3.2 mm	Surface Mount			Colorless	1206 (3216 Metric)	Clear	1.1 mm	2.6 mm Dia
SunLED XZDGK55W10MAV-3HTA		515 nm	10 mA	525 nm	Round with Domed Top	30 °	3 V	Green	Chip LED		1.6 mm	3.2 mm	Surface Mount			Colorless	1206 (3216 Metric)	Clear		1.6 mm	2 mm
SunLED XZDGK55W-A2RT	995 mcd	515 nm	20 mA	525 nm	Round with Flat Top	70 °	3.3 V	Green	2-SMD	Standard	1.6 mm	3.2 mm	Surface Mount			Colorless	1206 (3216 Metric)	Clear		1.1 mm	1.2 mm
