104130 Series
Manufacturer: Molex
Beta
⌘K

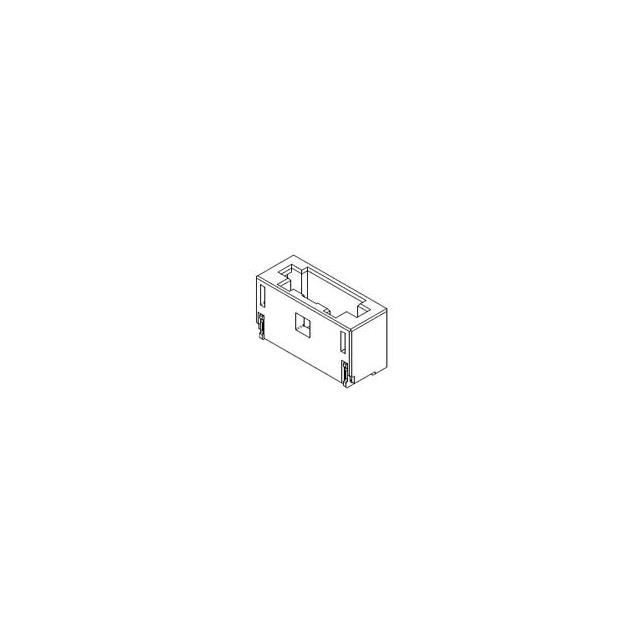

CONN HEADER SMD 3POS 1.25MM
| Part | Style | Number of Positions Loaded | Mounting Type | Contact Length - Mating | Contact Length - Mating | Features | Connector Type | Contact Shape | Termination | Applications | Contact Material | Shrouding | Insulation Color | Number of Rows | Mated Stacking Heights | Pitch - Mating | Pitch - Mating | Insulation Material | Fastening Type | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Contact Type | Material Flammability Rating | Insulation Height | Insulation Height | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Contact Finish - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Molex | Board to Cable/Wire | All | Surface Mount | 1.4 mm | 0.055 in | Solder Retention | Header | Rectangular | Solder | General Purpose Medical | Phosphor Bronze | Shrouded - 4 Wall | Natural | 1 | 5.1 mm 5.9 mm | 1.25 mm | 0.049 in | Liquid Crystal Polymer (LCP) Glass Filled Halogen Free | Latch Holder | 118.1 µin | 3 µm | Male Pin | UL94 V-0 | 0.156 in | 3.96 mm | 3 µm | 118.1 µin | Tin |
