R22230 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

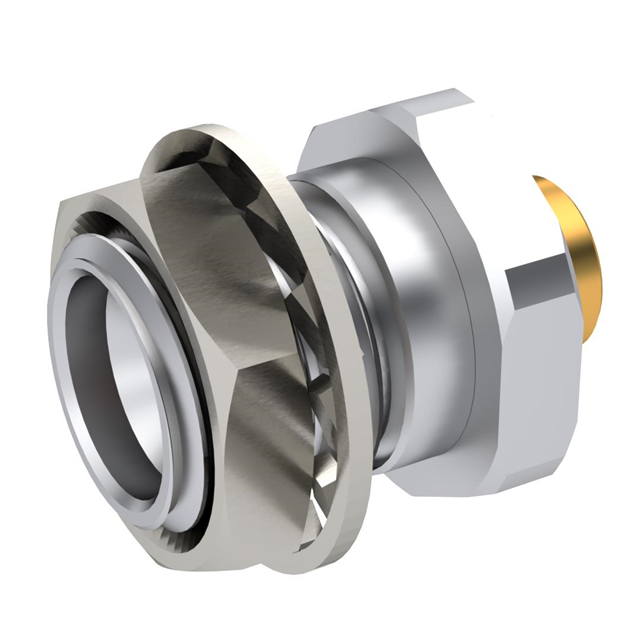

SMP M BHD LD SD .085
| Part | Operating Temperature [Min] | Operating Temperature [Max] | Body Material | Voltage Rating | Mating Cycles | Dielectric Material | Center Contact Plating | Body Finish | Number of Ports | Fastening Type | Connector Type | Frequency - Max [Max] | Cable Group | Housing Color | Center Contact Material | Contact Termination | Impedance | Shield Termination | Mounting Type | Mounting Feature | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass Stainless Steel | 335 V | 500 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1 | Snap-On | Jack Male Pin | 40 GHz | RG-405 (.085" Semi Rigid) | Gold Silver | Beryllium Copper | Solder | 50 Ohms | Solder | Panel Mount | Bulkhead - Front Side Nut | Limited Detent |
 Radiall USA, Inc. | -65 ░C | 165 °C | Brass Stainless Steel | 335 V | 1000 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1 | Snap-On | Jack Male Pin | 40 GHz | RG-405 (.085" Semi Rigid) | Gold Silver | Beryllium Copper | Solder | 50 Ohms | Solder | Panel Mount | Bulkhead - Front Side Nut | Full Detent |
Radiall USA, Inc. | -65 ░C | 165 °C | Brass Stainless Steel | 335 V | 1000 | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1 | Snap-On | Jack Male Pin | 40 GHz | RG-405 (.085" Semi Rigid) | Gold Silver | Beryllium Copper | Solder | 50 Ohms | Solder | Panel Mount | Bulkhead - Front Side Nut | Smooth Bore |
Radiall USA, Inc. | -65 ░C | 165 °C | Brass Stainless Steel | 335 V | Polytetrafluoroethylene (PTFE) | Gold | Gold | 1 | Snap-On | Jack Male Pin | 40 GHz | RG-405 (.085" Semi Rigid) | Gold Silver | Beryllium Copper | Solder | 50 Ohms | Solder | Panel Mount | Bulkhead - Front Side Nut | Full Detent |
