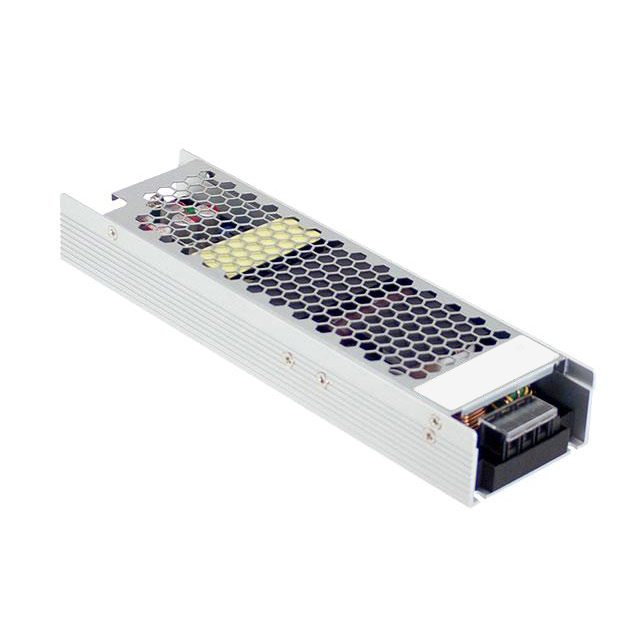

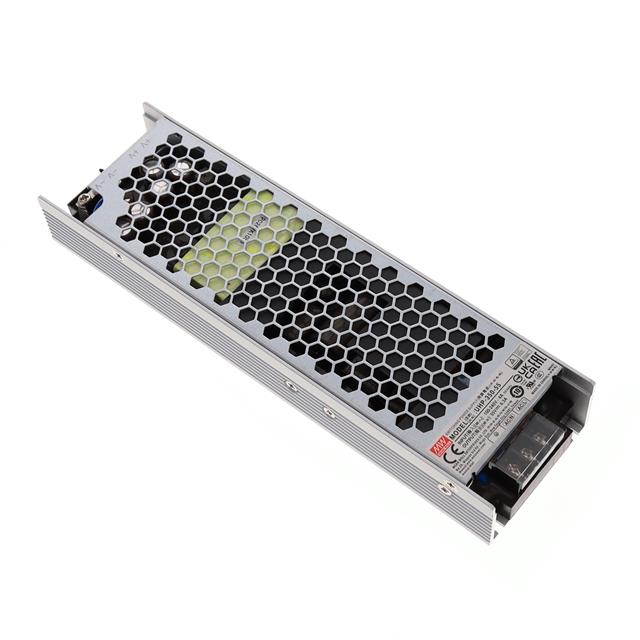

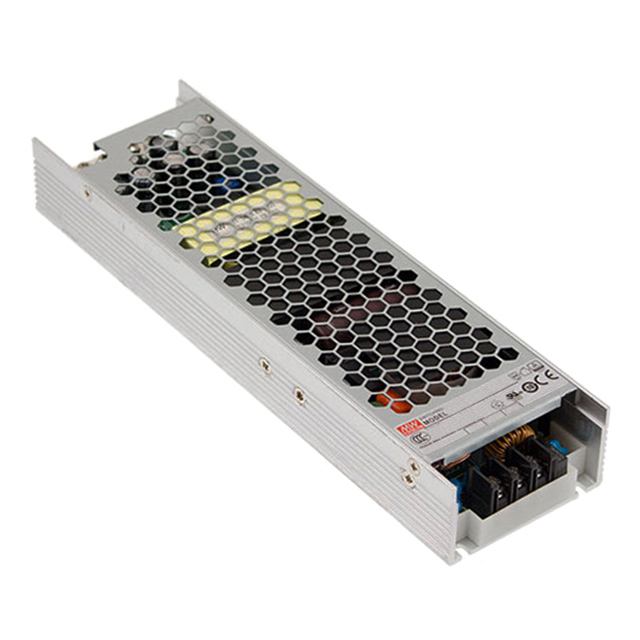

UHP-350 Series
Manufacturer: MEAN WELL USA Inc.
Beta
⌘K
AC/DC CONVERTER 15V 351W
| Part | Applications | Voltage - Input [Max] | Voltage - Input [Min] | Current - Output 1 | Power (Watts) | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Number of Outputs | Voltage - Output 1 | Approval Agency | Voltage - Isolation | Operating Temperature [Min] | Operating Temperature [Max] | Mounting Type | Efficiency | Type | Features | Standard Number | Voltage - Output 1 [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 23.4 A | 351 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 15 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 92 % | Enclosed | Adjustable Output PFC Universal Input | ||
 MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 6.3 A | 347 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 55 V | CB CCC CE cURus EAC TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 94 % | Enclosed | Adjustable Output PFC Universal Input | 60335-1 62368-1 | |
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 29.2 A | 350 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 12 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 91 % | Enclosed | Adjustable Output PFC Universal Input | ||
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 9.75 A | 351 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 94 % | Enclosed | Adjustable Output PFC Universal Input | 36 V | ||
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 60 A | 300 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 5 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 90 % | Enclosed | Adjustable Output PFC Universal Input | ||
 MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 60 A | 198 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 3.3 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 88.5 % | Enclosed | Adjustable Output PFC Universal Input | ||
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 9.75 A | 351 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 94 % | Enclosed | Adjustable Output PFC Universal Input | 36 V | ||
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 60 A | 300 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 5 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 90 % | Enclosed | Adjustable Output PFC Universal Input | ||
MEAN WELL USA Inc. | Household Appliances ITE (Commercial) | 264 VAC 370 VDC | 90 VAC 127 VDC | 60 A | 198 W | 1.22 in | 220 mm | 31 mm | 8.66 in | 2.44 " | 62 mm | 1 | 3.3 V | CB CCC CE cURus TUV | 3750 VDC | -30 °C | 70 °C | Chassis Mount | 88.5 % | Enclosed | Adjustable Output PFC Universal Input |
