DRL-24 Series
Manufacturer: Delta Electronics
Beta
⌘K
AC/DC DIN RAIL SUPPLY 24V 240W
| Part | AC Voltage - Input [Max] | AC Voltage - Input [Min] | Input Type | Current - Output (Max) [Max] | Applications | Voltage - Isolation | Number of Outputs | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] | Features | Approval Agency | Operating Temperature [Max] | Operating Temperature [Min] | Power (Watts) | Voltage - Output 1 | Efficiency |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Delta Electronics | 264 VAC | 85 VAC | AC | 10 A | ITE (Commercial) | 3000 V | 1 | 123.6 mm | 2.36 " | 4.63 in | 117.6 mm | 60 mm | 4.87 " | Adjustable Output IP20 Load Sharing PFC Universal Input | CB CCC CE cURus TUV | 70 °C | -20 °C | 240 Watts | 24 V | 90 % |

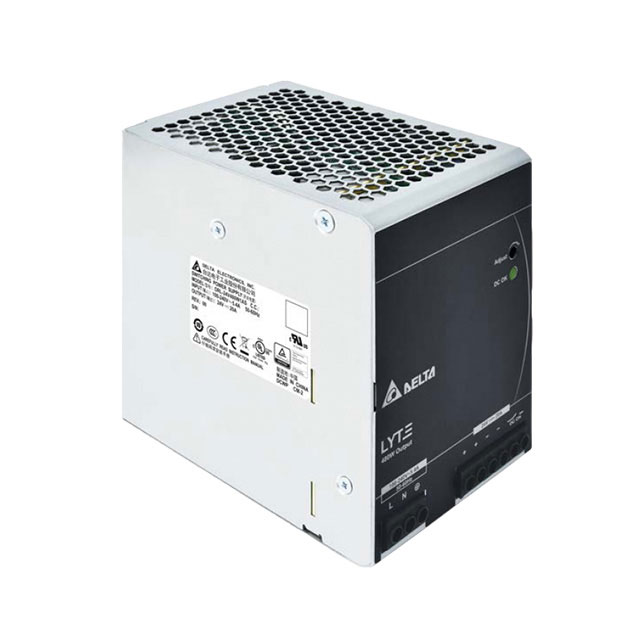

 Delta Electronics | 264 VAC | 85 VAC | AC | 20 A | ITE (Commercial) | 3000 V | 1 | 123.6 mm | 3.37 in | 5.03 in | 127.7 mm | 85.5 mm | 4.87 " | Adjustable Output IP20 Load Sharing PFC Universal Input | CB CCC CE cULus cURus TUV | 70 °C | -20 °C | 480 W | 24 V | 88 % |
