EL02M Series
Manufacturer: WITHWAVE CO LTD
Beta
⌘K

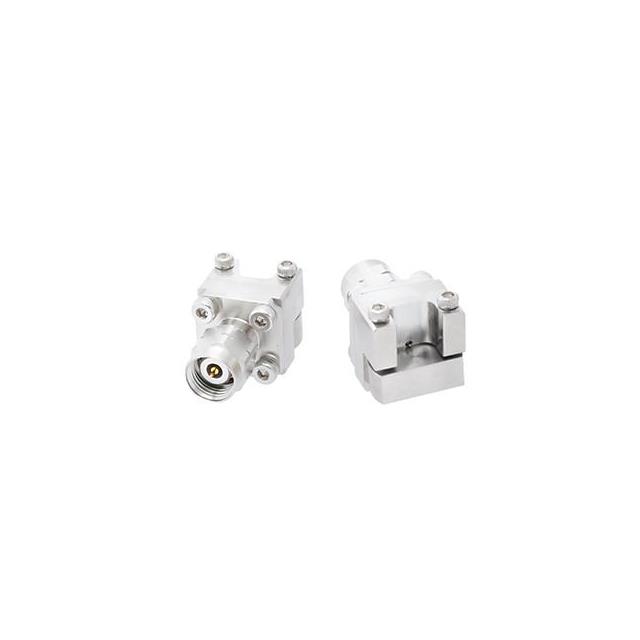

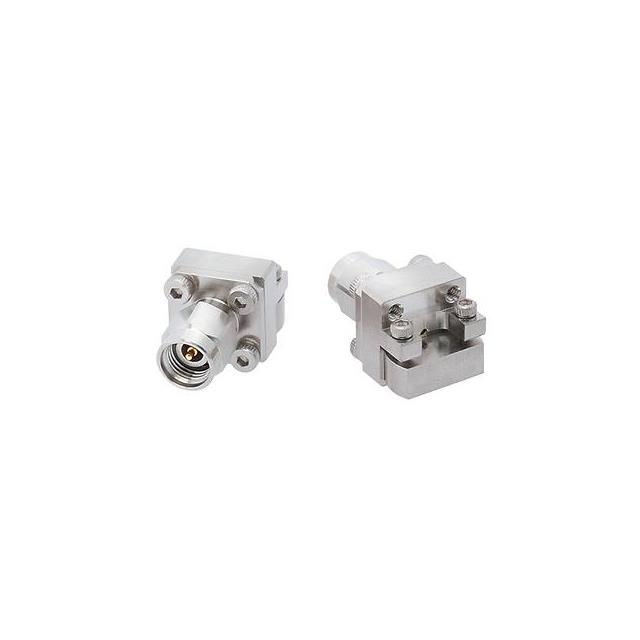

END LAUNCH 2.4 MM CONNECTOR(DC T
| Part | Center Contact Plating | Body Material | Fastening Type | Number of Ports | Contact Termination | Shield Termination | Mounting Type | Impedance | Frequency - Max [Max] | Connector Style [x] | Connector Style | Connector Style | Connector Type | Center Contact Material |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 WITHWAVE CO LTD | Gold | Stainless Steel | Threaded | 1 | Compression | Screw | Board Edge End Launch | 50 Ohms | 50 GHz | 2.4 mm | OS-50 | APC-2.4 | Plug Male Pin | Beryllium Copper |
 WITHWAVE CO LTD | Gold | Stainless Steel | Threaded | 1 | Compression | Screw | Board Edge End Launch | 50 Ohms | 50 GHz | 2.4 mm | OS-50 | APC-2.4 | Plug Male Pin | Beryllium Copper |
