292171 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

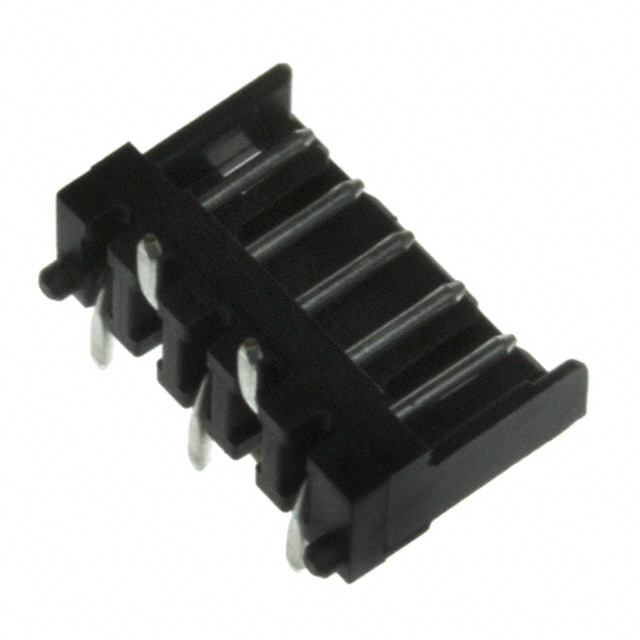

CONN SHROUDED HEADER (3 SIDES) HDR 5 POS 2MM SOLDER ST SMD BOX/TUBE
| Part | Contact Type | Current Rating (Amps) | Number of Rows | Termination | Voltage Rating | Shrouding | Mounting Type | Contact Material | Style | Insulation Color | Contact Length - Mating | Contact Length - Mating | Insulation Material | Number of Positions Loaded | Pitch - Mating [x] | Pitch - Mating [x] | Fastening Type | Contact Finish - Post | Connector Type | Material Flammability Rating | Applications | Contact Shape | Features | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Male Pin | Varies by Wire Gauge | 1 | Solder | 125 VAC | Shrouded - 3 Wall | Surface Mount | Brass | Board to Cable/Wire | Black | 0.177 in | 4.5 mm | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.079 in | 2 mm | Detent Lock | Tin | Header | UL94 V-0 | General Purpose | Circular | Board Guide | |

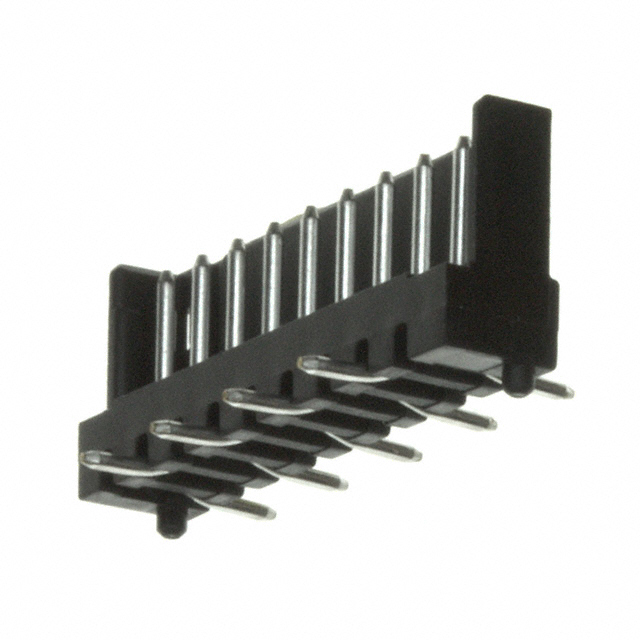

 TE Connectivity Raychem Cable Protection | Male Pin | Varies by Wire Gauge | 1 | Solder | 125 VAC | Shrouded - 3 Wall | Surface Mount | Brass | Board to Cable/Wire | Black | 0.177 in | 4.5 mm | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.079 in | 2 mm | Detent Lock | Tin | Header | UL94 V-0 | General Purpose | Circular | Board Guide | 9 |

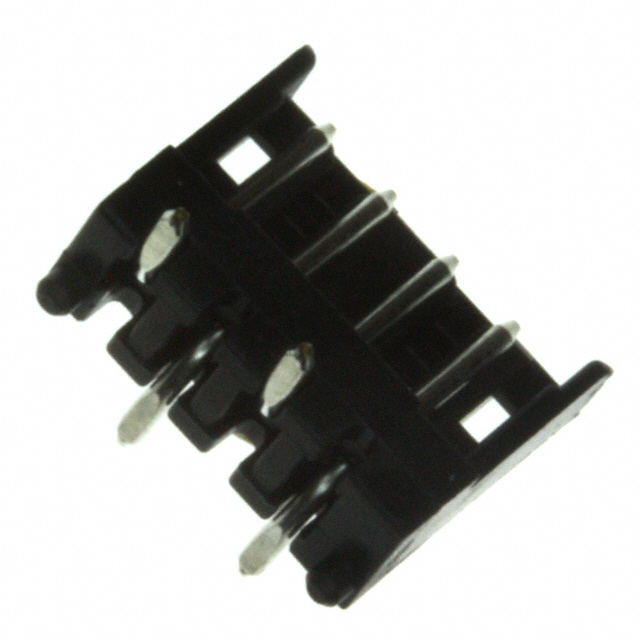

 TE Connectivity Raychem Cable Protection | Male Pin | Varies by Wire Gauge | 1 | Solder | 125 VAC | Shrouded - 3 Wall | Surface Mount | Brass | Board to Cable/Wire | Black | 0.177 in | 4.5 mm | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.079 in | 2 mm | Detent Lock | Tin | Header | UL94 V-0 | General Purpose | Circular | Board Guide | 4 |
TE Connectivity Raychem Cable Protection | Male Pin | Varies by Wire Gauge | 1 | Solder | 125 VAC | Shrouded - 3 Wall | Surface Mount | Brass | Board to Cable/Wire | Natural | 0.177 in | 4.5 mm | Glass Filled Nylon 6T Polyamide (PA6T) | All | 0.079 in | 2 mm | Detent Lock | Tin | Header | UL94 V-0 | General Purpose | Circular | Board Guide |
