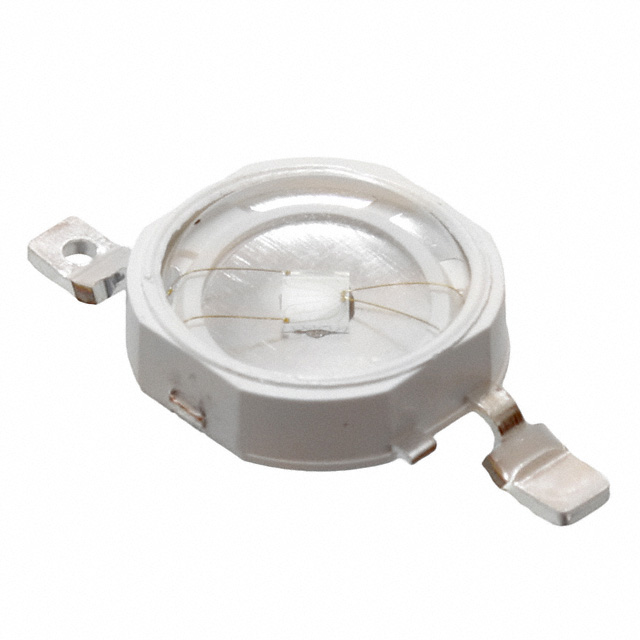

ASMT-AB31 Series
Manufacturer: Broadcom Limited
Beta
⌘K
LED BLUE 460NM 3W 2SMD
| Part | Current - Test | Height - Seated (Max) | Height - Seated (Max) [Max] [z] | Wavelength | Lumens/Watt @ Current - Test | Mounting Type | Supplier Device Package | Temperature - Test | Voltage - Forward (Vf) (Typ) | Current - Max [Max] | Color | Package / Case | Viewing Angle | Luminous Flux @ Current/Temperature | Size / Dimension [diameter] | Size / Dimension [diameter] | Thermal Resistance of Package |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Broadcom Limited | 350 mA | 4.2 mm | 0.165 " | 460 nm | 21 lm/W | Surface Mount | 2-SMD | 25 °C | 3.2 V | 700 mA | Blue | 2-SMD Gull Wing Exposed Pad | 140 ° | 23 lm | 0.315 in | 8 mm | |
Broadcom Limited | 350 mA | 4.2 mm | 0.165 " | 460 nm | 21 lm/W | Surface Mount | 2-SMD | 25 °C | 3.2 V | 700 mA | Blue | 2-SMD Gull Wing Exposed Pad | 140 ° | 23 lm | 0.315 in | 8 mm | 10 °C/W |
 Broadcom Limited | 350 mA | 4.2 mm | 0.165 " | 460 nm | 16 lm/W | Surface Mount | 2-SMD | 25 °C | 3.2 V | 700 mA | Blue | 2-SMD Gull Wing Exposed Pad | 140 ° | 18 lm | 0.315 in | 8 mm | 10 °C/W |
