S-1172 Series

Catalog

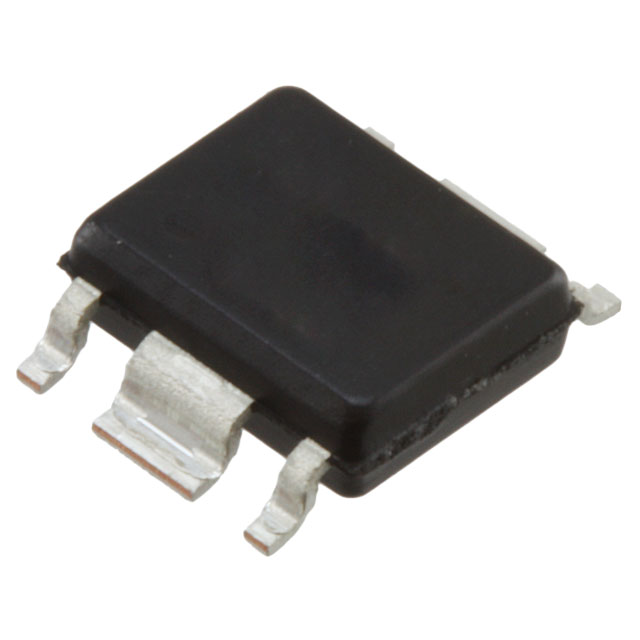

IC REG LINEAR 1.8V 1A 6HSOP

Part	Control Features	PSRR	Voltage Dropout (Max)	Voltage - Input (Max) [Max]	Current - Output	Current - Quiescent (Iq)	Voltage - Output (Min/Fixed)	Package / Case	Package / Case	Output Configuration	Protection Features	Current - Supply (Max) [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Number of Regulators	Mounting Type	Current - Supply (Max)	Supplier Device Package	Voltage Dropout (Max) [Max]	Voltage - Output (Min/Fixed) [Min]
ABLIC Inc. S-1172B18-E6T1U	Enable	65 dB	0.15 V	5.5 V	1 A	1 µA	1.8 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount
ABLIC Inc. S-1172B12-U5T1G	Enable	65 dB		5.5 V	1 A	1 µA	1.2 V		SOT-89-5/6	Positive	Over Current Thermal Shutdown		85 C	-40 ¯C	1	Surface Mount	110 µA	SOT-89-5	0.38 V
ABLIC Inc. S-1172B15-U5T1U	Enable	65 dB	0.15 V	5.5 V	1 A	1 µA	1.5 V		SOT-89-5/6	Positive	Over Current Thermal Shutdown		85 C	-40 ¯C	1	Surface Mount	110 µA	SOT-89-5
ABLIC Inc. S-1172B12-E6T1U	Enable	65 dB		5.5 V	1 A	1 µA	1.2 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	Positive	Over Current Thermal Shutdown		85 C	-40 ¯C	1	Surface Mount	110 µA		0.38 V
ABLIC Inc. S-1172B15-E6T1G	Enable	65 dB	0.15 V	5.5 V	1 A	1 µA	1.5 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	Positive	Over Current Thermal Shutdown		85 C	-40 ¯C	1	Surface Mount	110 µA
ABLIC Inc. S-1172B39-E6T1U	Enable	60 dB		5.5 V	1 A	1 µA		0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount			0.1 V	3.9 V
ABLIC Inc. S-1172B33-E6T1U	Enable	60 dB		5.5 V	1 A	1 µA	3.3 V	0.154 in 3.9 mm	4 Leads + 2 Fins 6-SOIC Variation	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount			0.1 V
ABLIC Inc. S-1172B35-U5T1G	Enable	60 dB		5.5 V	1 A	1 µA			SOT-89-5/6	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount		SOT-89-5	0.1 V	3.5 V
ABLIC Inc. S-1172B30-U5T1U	Enable	65 dB		5.5 V	1 A	1 µA	3 V		SOT-89-5/6	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount		SOT-89-5	0.1 V
ABLIC Inc. S-1172B33-U5T1G	Enable	60 dB		5.5 V	1 A	1 µA	3.3 V		SOT-89-5/6	Positive	Over Current Thermal Shutdown	90 µA	85 C	-40 ¯C	1	Surface Mount		SOT-89-5	0.1 V
