M80-543 Series

Catalog

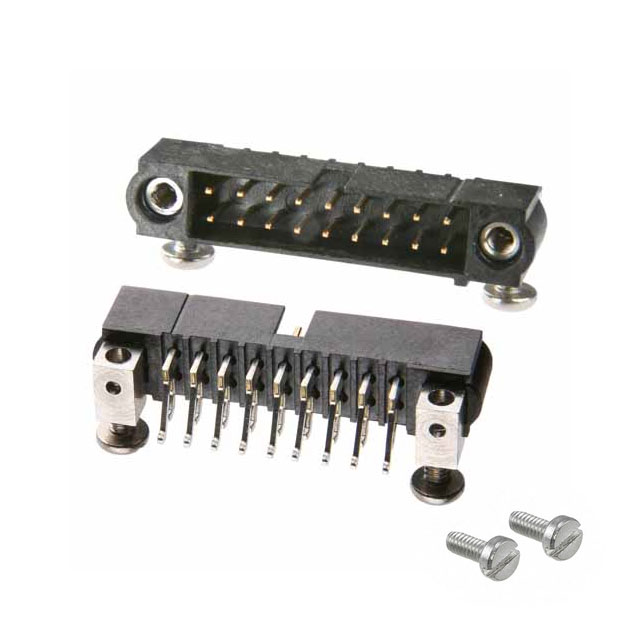

6+6 POS. MALE DIL HORIZONTAL SMT CONN. JACKSCREWS ROHS COMPLIANT: YES

Part	Contact Finish Thickness - Post [custom]	Contact Finish Thickness - Post [custom]	Number of Positions Loaded	Voltage Rating	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Pitch - Mating	Pitch - Mating	Termination	Row Spacing - Mating	Row Spacing - Mating	Contact Finish - Mating	Number of Positions	Insulation Material	Connector Type	Mounting Type	Features	Insulation Height	Insulation Height	Fastening Type	Insulation Color	Number of Rows [custom]	Contact Material	Contact Finish - Post	Contact Type	Shrouding	Style	Contact Shape	Material Flammability Rating	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Contact Finish Thickness - Post
Harwin Inc. M80-5431242	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	12	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
Harwin Inc. M80-5432042	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	20	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
Harwin Inc. M80-5430442			All	800 VAC	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	4	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C	12 µin	0.3 µm
Harwin Inc. M80-5431042	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	10	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
Harwin Inc. M80-5434205			All	800 VAC	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	42	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Threaded	Black	2	Copper Alloy	Gold	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C		29.5 µin	0.75 µm
Harwin Inc. M80-5431022	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	10	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin-Lead	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
Harwin Inc. M80-5430805			All	800 VAC	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	8	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.6 mm	0.22 in	Threaded	Black	2	Copper Alloy	Gold	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C		29.5 µin	0.75 µm
Harwin Inc. M80-5431805			All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	18	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Gold	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C		29.5 µin	0.75 µm
Harwin Inc. M80-5432022	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	20	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin-Lead	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
Harwin Inc. M80-5431822	118.1 µin	3 µm	All	800 V	29.5 µin	0.75 µm	0.079 "	2 mm	Solder	2 mm	0.079 in	Gold	18	Polyphenylene Sulfide (PPS) Glass Filled	Header	Right Angle Surface Mount	Keying Slot Mating Flange Mounting Flange Mounting Hardware	5.55 mm	0.218 in	Threaded	Black	2	Copper Alloy	Tin-Lead	Male Pin	Shrouded - 4 Wall	Board to Board Cable	Circular	UL94 V-0	2.2 A	-55 C	125 °C
