5140-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K

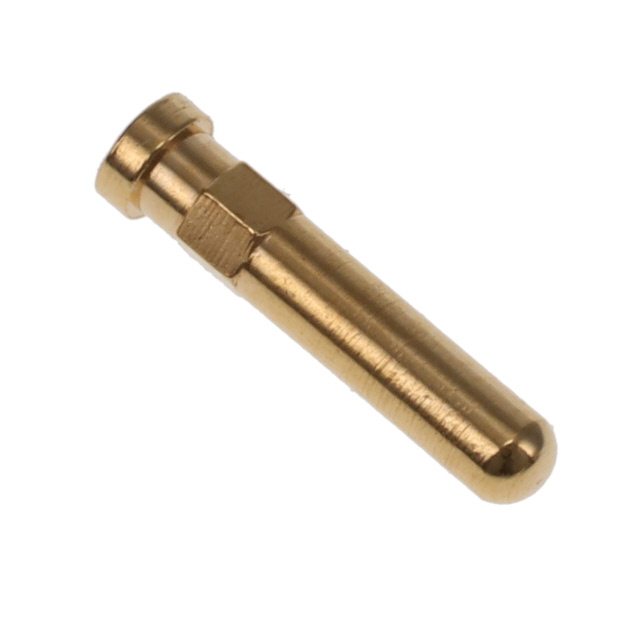

PRESS-FIT PCB PIN
| Part | Length - Above Flange [x] | Length - Above Flange [x] | Contact Material | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Finish Thickness | Contact Finish Thickness | Insulation | Mounting Type | Termination | Terminal Type | Length - Overall [x] | Length - Overall [x] | Pin Size - Above Flange [diameter] | Pin Size - Above Flange [diameter] | Flange Diameter [diameter] | Flange Diameter [diameter] | Terminal Style | Contact Finish |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 5.53 mm 5.54 mm | 0.218 " | Brass Alloy | 0.066 in | 1.68 mm | 0.25 Ám | 10 Áin | Non-Insulated | Through Hole | Hex Press-Fit | PC Pin | 8.26 mm | 0.325 in | 1.52 mm | 0.06 in | 1.96 mm | 0.077 in | Single End | Gold |
