MHR-34 Series

Manufacturer: Adam Tech

Catalog

CONN HEADER R/A 34POS 2.54MM

Part	Contact Finish Thickness - Post	Contact Type	Contact Finish Thickness - Mating	Contact Material	Number of Positions Loaded	Mounting Type	Number of Rows [custom]	Contact Length - Post	Contact Length - Post	Current Rating (Amps)	Number of Positions [custom]	Pitch - Mating	Pitch - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Material Flammability Rating	Contact Shape	Insulation Material	Insulation Color	Voltage Rating	Features	Contact Finish - Post	Shrouding	Connector Type	Insulation Height [z]	Insulation Height	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Style	Contact Finish - Mating	Fastening Type	Termination	Contact Length - Post [x]

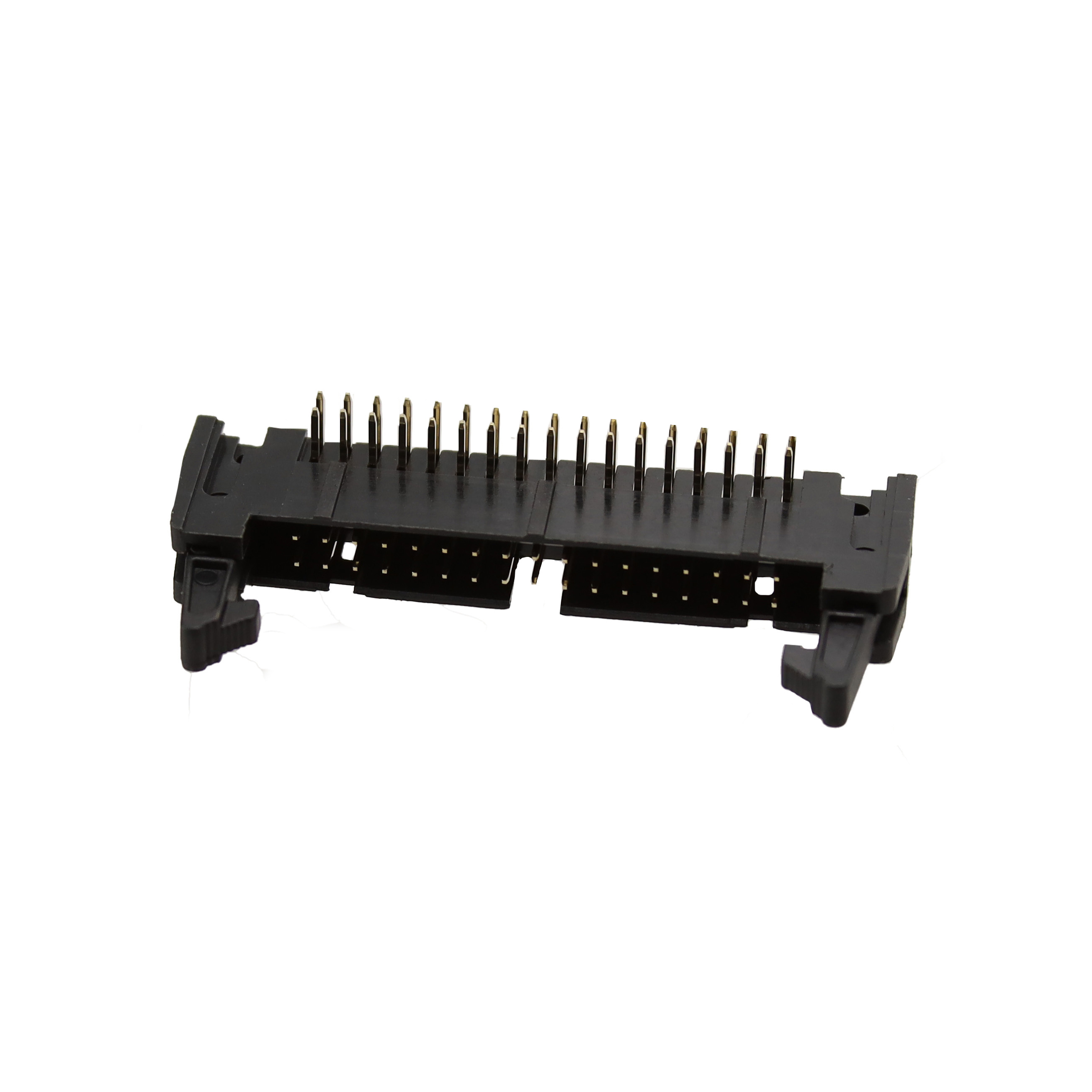

Adam Tech MHR-34-HUAL	Flash	Male Pin	Flash	Brass	All	Right Angle Through Hole	2	0.142 in	3.6 mm	3 A	34	0.1 "	2.54 mm	-55 C	105 ░C	UL94 V-0	Square	Polybutylene Terephthalate (PBT)	Black	250 VAC	Keying Slot	Gold	Shrouded - 4 Wall	Header	0.331 in	8.4 mm	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Latch Lock/Eject Hooks Long	Solder

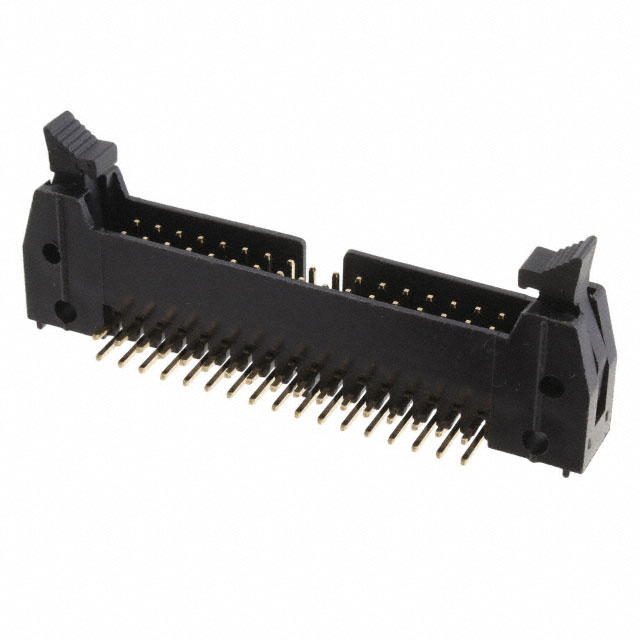

Adam Tech MHR-34-HUAS	Flash	Male Pin	Flash	Brass	All	Right Angle Through Hole	2		4 mm	3 A	34	0.1 "	2.54 mm	-55 C	105 ░C	UL94 V-0	Square	Polybutylene Terephthalate (PBT)	Black	250 VAC	Keying Slot	Gold	Shrouded - 4 Wall	Header	0.331 in	8.4 mm	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Latch Lock/Eject Hooks	Solder	0.157 in

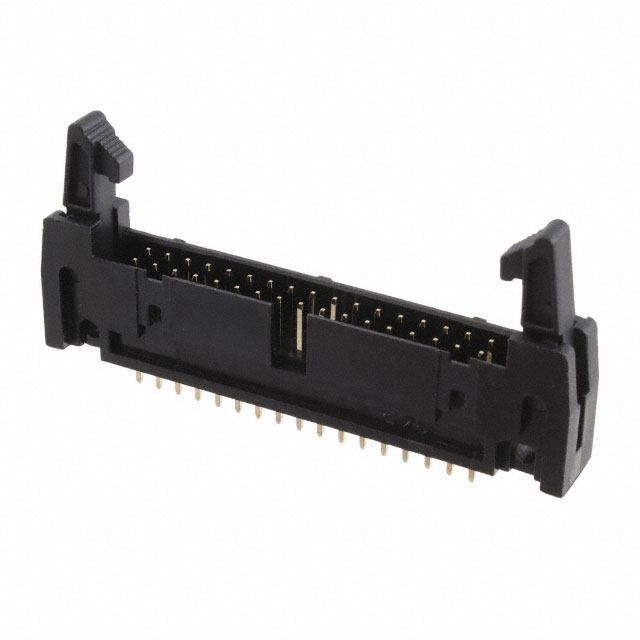

Adam Tech MHR-34-VUAL	Flash	Male Pin	Flash	Brass	All	Through Hole	2	0.142 in	3.6 mm	3 A	34	0.1 "	2.54 mm	-55 C	105 ░C	UL94 V-0	Square	Polybutylene Terephthalate (PBT)	Black	250 VAC	Keying Slot	Gold	Shrouded - 4 Wall	Header	0.331 in	8.4 mm	0.1 in	2.54 mm	Board to Cable/Wire	Gold	Latch Lock/Eject Hooks Long	Solder
