FGB.2B Series

Manufacturer: LEMO

Catalog

CONN PLUG MALE 19P GOLD SLDR CUP

Part	Primary Material	Number of Positions	Current Rating (Amps)	Connector Type	Operating Temperature [Min]	Operating Temperature [Max]	Shell Material	Contact Material	Shell Size - Insert	Shell Finish	Mounting Type	Material Flammability Rating	Contact Finish - Mating	Backshell Material, Plating	Shielding	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Min]	Cable Opening [Max]	Fastening Type	Contact Finish Thickness - Mating [custom]	Contact Finish Thickness - Mating [custom]	Color	Features	Ingress Protection	Insert Material	Orientation	Termination	Cable Opening [Min]	Cable Opening [Max]	Shell Size - Insert [custom]
LEMO FGB.2B.319.CLAD62Z	Metal	19	5 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	319	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	6.2 mm	5.2 mm	0.205 in	0.244 "	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B
LEMO FGB.2B.319.CLAD52	Metal	19	5 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	319	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	5.2 mm	4.2 mm	0.165 "	0.205 in	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B
LEMO FGB.2B.303.CYCD92Z	Metal		17 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	303	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	9.2 mm	8.2 mm	0.323 in	0.362 in	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B	Crimp
LEMO FGB.2B.319.CLAD82Z	Metal	19	5 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	319	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	8.2 mm	7.2 mm	0.283 "	0.323 "	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B
LEMO FGB.2B.304.CYCD92Z	Metal	4	15 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	304	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	9.2 mm	8.2 mm	0.323 in	0.362 in	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B	Crimp
LEMO FGB.2B.308.CLAD72	Metal	8	10 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	308	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	7.2 mm	6.2 mm			Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B		0.244 in	0.283 in

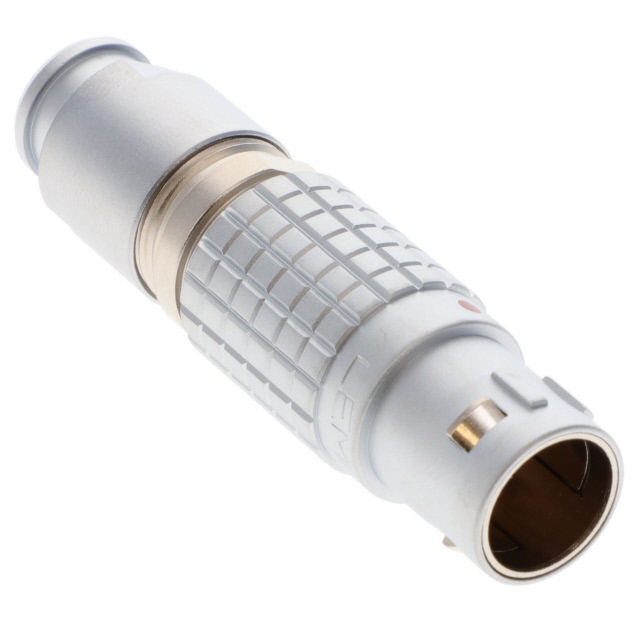

LEMO FGB.2B.316.CLAD72Z	Metal	16	6 A	Plug Male Pins	-55 C	250 °C	Brass	Brass		Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	7.2 mm	6.2 mm			Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B		0.244 in	0.283 in	316

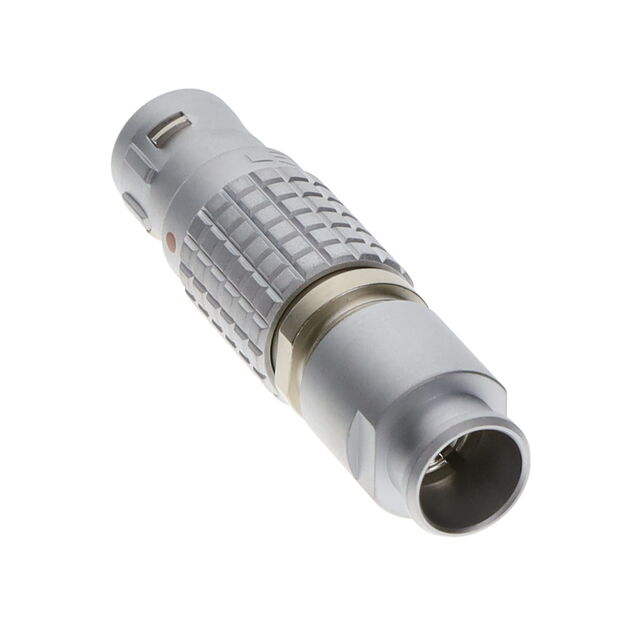

LEMO FGB.2B.316.CLAD62Z	Metal	16	6 A	Plug Male Pins	-55 C	250 °C	Brass	Brass		Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	6.2 mm	5.2 mm	0.205 in	0.244 "	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B				316
LEMO FGB.2B.319.CLAD62	Metal	19	5 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	319	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	6.2 mm	5.2 mm	0.205 in	0.244 "	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B
LEMO FGB.2B.319.CYCD99	Metal	19	5 A	Plug Male Pins	-55 C	250 °C	Brass	Brass	319	Chrome	Free Hanging (In-Line)	UL94 V-0	Gold	Brass Chrome	Shielded	9.9 mm	9.2 mm	0.362 in	0.39 in	Push-Pull	39.4 µin	1 µm	Silver	Backshell	IP50 - Dust Protected	Polyetheretherketone (PEEK)	B	Crimp
