FMC Series

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring

Manufacturer: Phoenix Contact

Catalog

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring

Catalog

Pluggable Terminal Blocks 7 Pos 3.5mm pitch Plug 24-16AWG Spring

Part	Positions Per Level	Features	Number of Levels	Termination Style	Pitch	Pitch	Plug Wire Entry	Mounting Type	Contact Mating Finish	Wire Gauge or Range - mm² [Max]	Wire Gauge or Range - mm² [Min]	Current - IEC	Color	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - AWG [Max]	Current - UL	Voltage - IEC	Type	Voltage - UL	Number of Positions	Wire Strip Length	Material Flammability Rating	Wire Gauge or Range - mm˛ [Max]	Wire Gauge or Range - mm˛ [Min]	Housing Material	Insulation Height [z]	Insulation Height [z]
Phoenix Contact 1748383	5	Mating Flange	1	Screwless - Push-In Spring	3.81 mm	0.15 in	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	5
Phoenix Contact 1821106	3		1	Push-In Spring Screwless - Leg Spring	2.54 mm	0.1 "	180 °	Free Hanging (In-Line)	Gold	0.5 mm²	0.14 mm²	6 A	Black	20 AWG	26 AWG	6 A	160 V	Plug Female Sockets	150 V
Phoenix Contact 1706393	9	Strain Relief	1	Screwless - Push-In Spring	3.5 mm	0.138 "	180 °	Free Hanging (In-Line)	Tin			8 A	Green					Plug Female Sockets		9

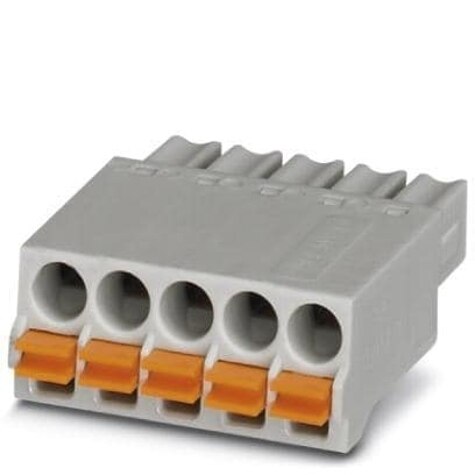

Phoenix Contact 1798375	10	Mating Flange	1	Screwless - Push-In Spring	3.81 mm	0.15 in	180 °	Free Hanging (In-Line)	Gold	1.5 mm²	0.2 mm²	8 A	Black	16 AWG	24 AWG	8 A	160 V	Plug Female Sockets	150 V	10	10 mm
Phoenix Contact 1748370	4	Mating Flange	1	Screwless - Push-In Spring	3.81 mm	0.15 in	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	4	10 mm	UL94 V-0	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon

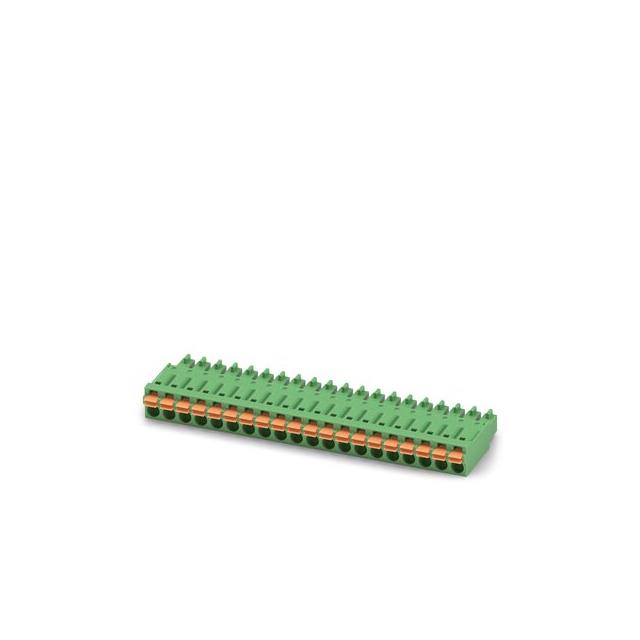

Phoenix Contact 1748150	20		1	Screwless - Push-In Spring	3.81 mm	0.15 in	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	20	10 mm	UL94 V-0	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon

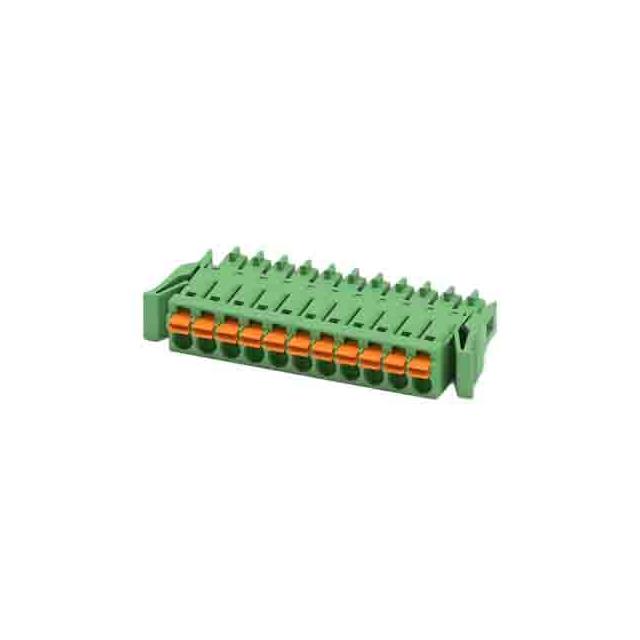

Phoenix Contact 1952115	11	Latch Lock	1	Screwless - Push-In Spring	3.5 mm	0.138 "	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	11	10 mm	UL94 V-0			Polyamide (PA) Nylon

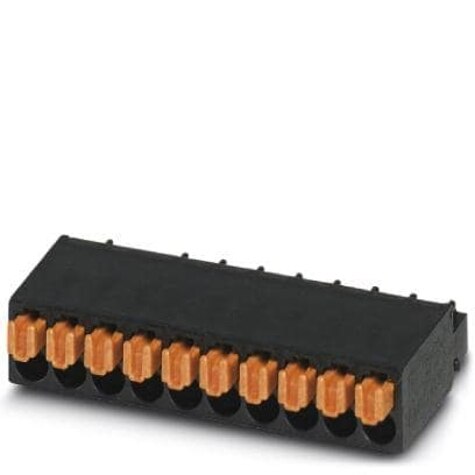

Phoenix Contact 1706239	6		1	Push-In Spring Screwless - Leg Spring	2.54 mm	0.1 "	180 °	Free Hanging (In-Line)	Gold	0.5 mm²	0.14 mm²	6 A	Black	20 AWG	26 AWG	6 A	160 V	Plug Female Sockets	150 V	6	7 mm	UL94 V-0	0.5 mm˛	0.14 mm˛	Liquid Crystal Polymer (LCP)	0.213 "	5.4 mm
Phoenix Contact 1952364	12		1	Screwless - Push-In Spring	3.5 mm	0.138 "	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	12
Phoenix Contact 1966185	11	Mating Flange	1	Screwless - Push-In Spring	3.5 mm	0.138 "	180 °	Free Hanging (In-Line)	Tin	1.5 mm²	0.2 mm²	8 A	Green	16 AWG	24 AWG	8 A	320 V	Plug Female Sockets	150 V	11	10 mm	UL94 V-0	1.5 mm˛	0.2 mm˛	Polyamide (PA) Nylon
