SFV24R Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

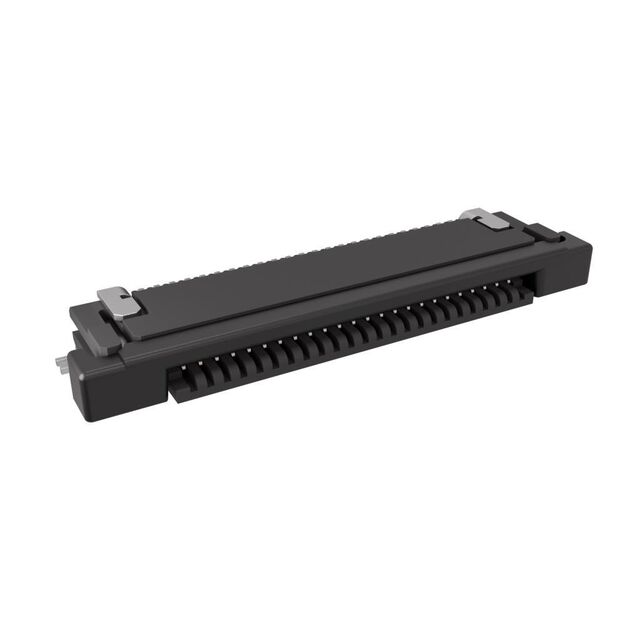

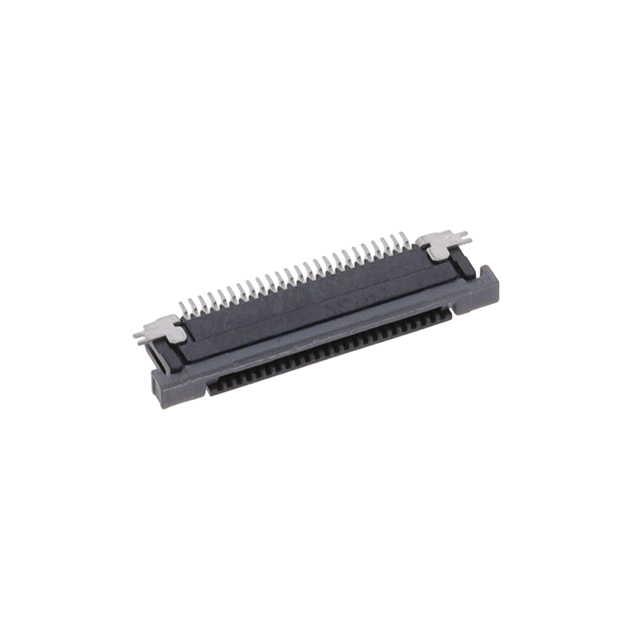

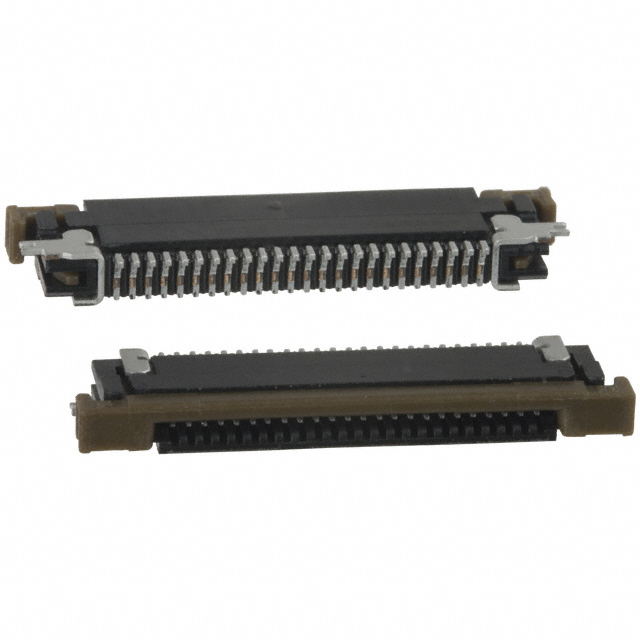

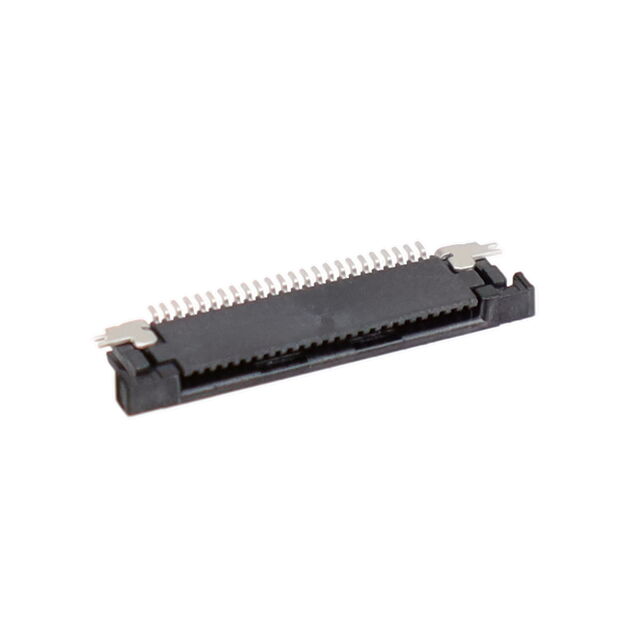

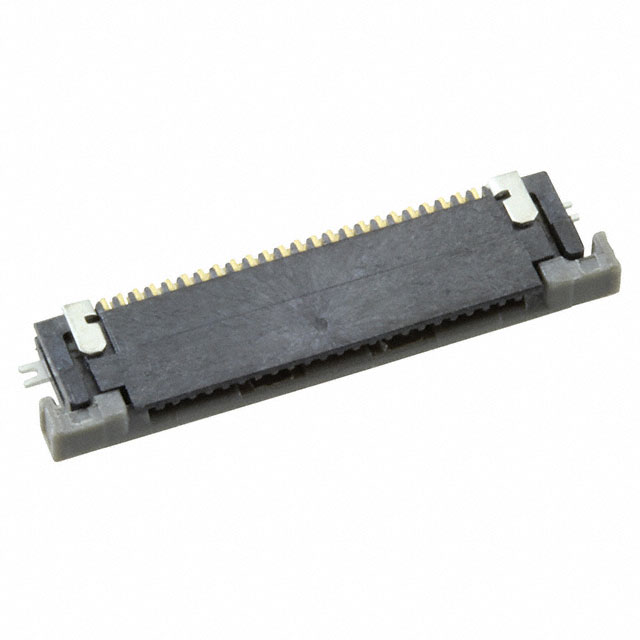

CONN FPC TOP 24POS 0.5MM R/A
| Part | Housing Color | Mating Cycles | Current Rating (Amps) | Actuator Color | Contact Finish | Connector/Contact Type | Cable End Type | Height Above Board [z] | Height Above Board [z] | Voltage Rating | Flat Flex Type | Mounting Type | Actuator Material | Pitch | Pitch | Termination | Contact Material | FFC, FCB Thickness | Number of Positions | Housing Material | Material Flammability Rating | Operating Temperature [Min] | Operating Temperature [Max] | Locking Feature | Features | FFC, FCB Thickness [custom] | FFC, FCB Thickness [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Gold | Contacts Top | Tapered | 0.071 in | 1.8 mm | 50 V | FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 0.33 mm | 24 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | |||
 Amphenol ICC (FCI) | Black | 0.5 A | Brown | Tin | Contacts Bottom | Straight Tapered | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 24 | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Gold | Contacts Bottom | Straight Tapered | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 24 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | 0.3 mm | 0.33 mm | ||
Amphenol ICC (FCI) | |||||||||||||||||||||||||||
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Brown | Tin | Contacts Bottom | Notched | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 24 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | 0.3 mm | 0.33 mm | ||
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Gold | Contacts Bottom | Tapered | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 0.3 mm | 24 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | ||
Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Gold | Contacts Top | Straight Tapered | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 24 | Glass Filled Halogen Free Nylon Polyamide (PA) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm | |
 Amphenol ICC (FCI) | Black | 20 | 0.5 A | Black | Tin | Contacts Top | Tapered | 0.071 in | 1.8 mm | 50 V | FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled Halogen Free | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 0.33 mm | 24 | Glass Filled Halogen Free Liquid Crystal Polymer (LCP) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | |||
Amphenol ICC (FCI) | Black | 20 | 0.5 A | Brown | Tin Alloy | Contacts Top | Straight Tapered | 0.071 in | 1.8 mm | 50 V | FFC FPC | Right Angle Surface Mount | Polyphenylene Sulfide (PPS) Glass Filled | 0.02 " | 0.5 mm | Solder | Phosphor Bronze | 24 | Glass Filled Nylon Polyamide (PA) | UL94 V-0 | -55 C | 105 ░C | Slide Lock | Solder Retention Zero Insertion Force (ZIF) | 0.3 mm | 0.33 mm |
