VOS628 Series

Catalog

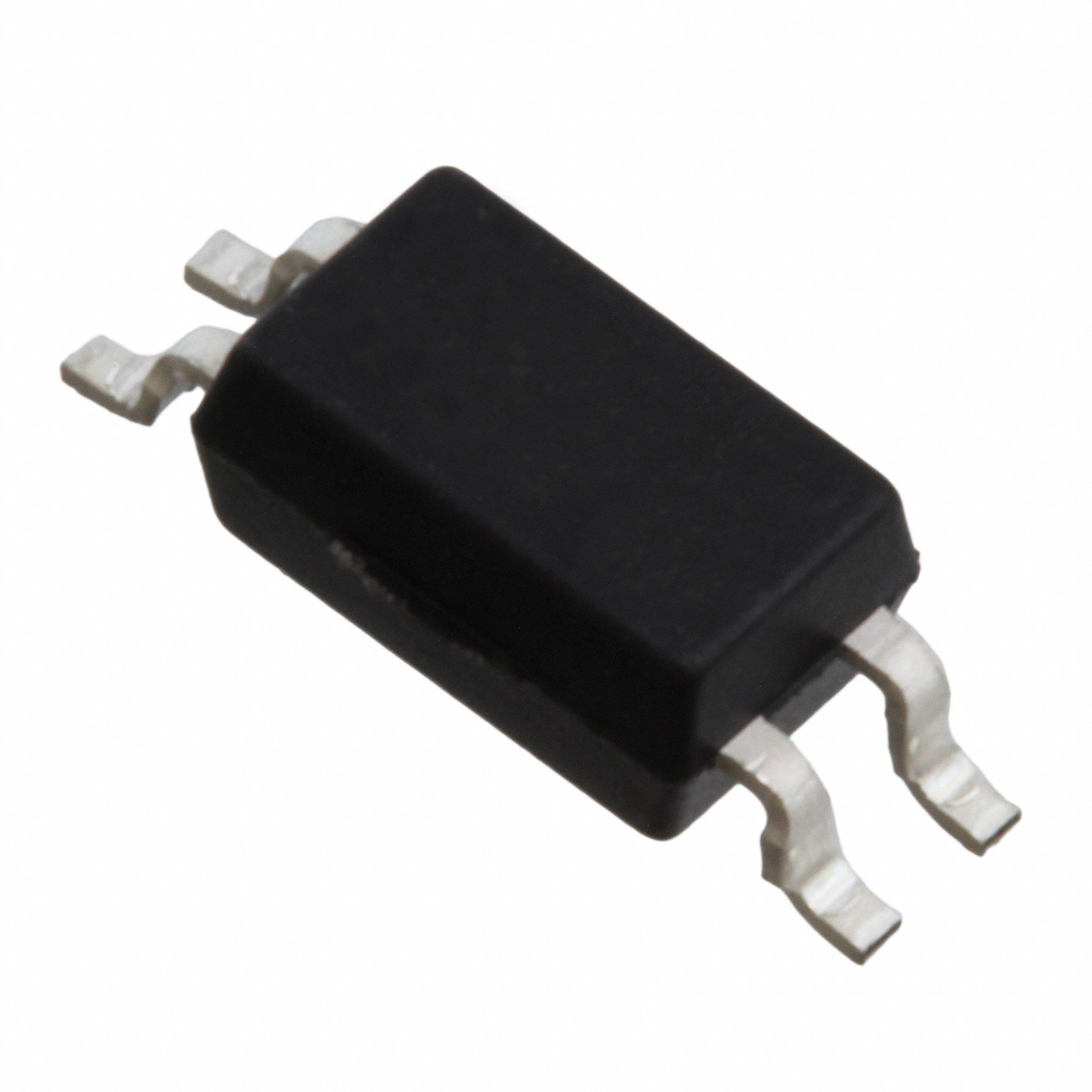

OPTOISOLATOR 3.75KV TRANS 4SSOP

Part	Current Transfer Ratio (Max)	Turn On / Turn Off Time (Typ)	Current - Output / Channel [custom]	Package / Case [x]	Package / Case	Package / Case [y]	Voltage - Forward (Vf) (Typ)	Mounting Type	Operating Temperature [Min]	Operating Temperature [Max]	Current - DC Forward (If) (Max) [Max]	Output Type	Current Transfer Ratio (Min)	Voltage - Isolation	Supplier Device Package	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Number of Channels [custom]	Vce Saturation (Max) [Max]	Current Transfer Ratio (Max) [Max]	Current Transfer Ratio (Min) [Min]
Vishay Semiconductor Opto Division VOS628A-2X001T	125 %	5 µs 8 µs	50 mA	0.173 "	4-SOIC	4.4 mm	1.1 V	Surface Mount	-55 C	110 °C	50 mA	Transistor	63 %	3750 Vrms	4-SSOP	5 µs	7 µs	1	400 mV
Vishay Semiconductor Opto Division VOS628A-X001T		5 µs 8 µs	50 mA	0.173 "	4-SOIC	4.4 mm	1.1 V	Surface Mount	-55 C	110 °C	50 mA	Transistor	50 %	3750 Vrms	4-SSOP	5 µs	7 µs	1	400 mV	600 %
Vishay Semiconductor Opto Division VOS628A-3T	200 %	5 µs 8 µs	50 mA	0.173 "	4-SOIC	4.4 mm	1.16 V	Surface Mount	-40 C	110 °C	60 mA	Transistor		3750 Vrms	4-SSOP	5 µs	7 µs	1	400 mV		100 %
Vishay Semiconductor Opto Division VOS628A-2T	125 %	5 µs 8 µs	50 mA	0.173 "	4-SOIC	4.4 mm	1.16 V	Surface Mount	-40 C	110 °C	60 mA	Transistor	63 %	3750 Vrms	4-SSOP	5 µs	7 µs	1	400 mV
Vishay Semiconductor Opto Division VOS628AT		5 µs 8 µs	50 mA	0.173 "	4-SOIC	4.4 mm	1.1 V	Surface Mount	-55 C	110 °C	50 mA	Transistor	50 %	3750 Vrms	4-SSOP	5 µs	7 µs	1	400 mV	600 %
