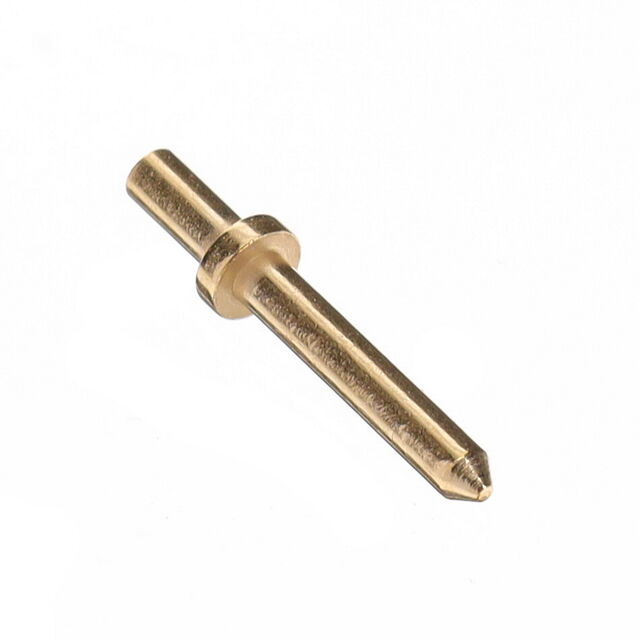

4275-0 Series
Manufacturer: Mill-Max Manufacturing Corp.
Beta
⌘K
CONN PC PIN CIRC
| Part | Mounting Hole Diameter [diameter] | Mounting Hole Diameter [diameter] | Contact Material | Mounting Type | Flange Diameter [diameter] | Flange Diameter [diameter] | Contact Finish | Termination | Terminal Type | Pin Size - Above Flange [diameter] | Pin Size - Above Flange | Terminal Style | Insulation | Length - Below Flange [x] | Length - Below Flange [x] | Contact Finish Thickness | Contact Finish Thickness | Length - Above Flange [x] | Length - Above Flange [x] | Length - Overall [x] | Length - Overall [x] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Mill-Max Manufacturing Corp. | 0.043 in | 1.09 mm | Brass Alloy | Through Hole | 1.78 mm | 0.07 in | Gold | Swage | PC Pin | 0.04 in | 1.02 mm | Single End | Non-Insulated | 2.41 mm | 0.095 " | 0.25 Ám | 10 Áin | 0.235 in | 5.97 mm | 8.89 mm | 0.35 in |
