R1206 Series

Manufacturer: OptiFuse

Catalog

PTC RESET FUSE 60V 100MA 1206

Part	Approval Agency	Type	Voltage - Max [Max]	Current - Max [Max]	Current - Hold (Ih) (Max) [Max]	Mounting Type	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Current - Trip (It)	Resistance - Initial (Ri) (Min) [Min]	Resistance - Post Trip (R1) (Max) [Max] [custom]	Package / Case	Operating Temperature [Max]	Operating Temperature [Min]	Time to Trip	Thickness (Max) [Max]	Thickness (Max) [Max]	Resistance - Post Trip (R1) (Max) [Max]

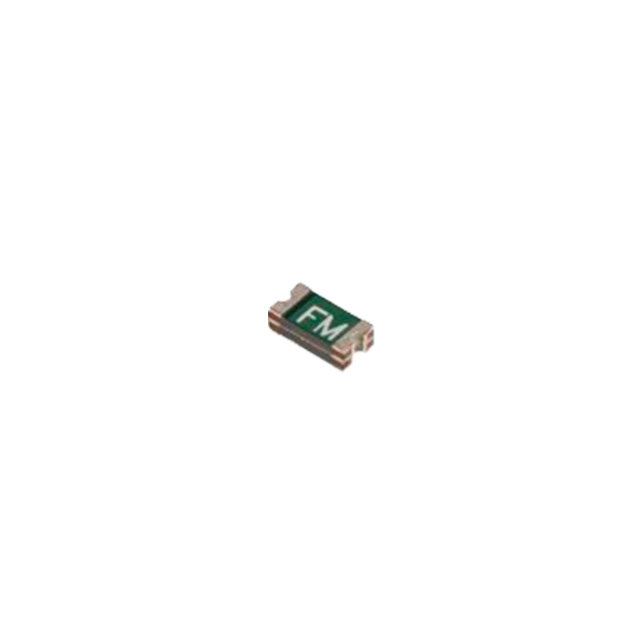

OptiFuse R1206-010	cUL TUV UL	Polymeric	60 V	100 A	100 mA	Surface Mount	3.25 mm	0.065 in	0.128 in	1.65 mm	250 mA	1.6 Ohms	15 Ohms	1206 (3216 Metric)	85 °C	-40 C	1 s	0.85 mm	0.033 in
OptiFuse R1206-010-R	cUL TUV UL	Polymeric	60 V	100 A	100 mA	Surface Mount	3.25 mm	0.065 in	0.128 in	1.65 mm	250 mA	1.6 Ohms	15 Ohms	1206 (3216 Metric) Concave	85 °C	-40 C	1 s	0.85 mm	0.033 in

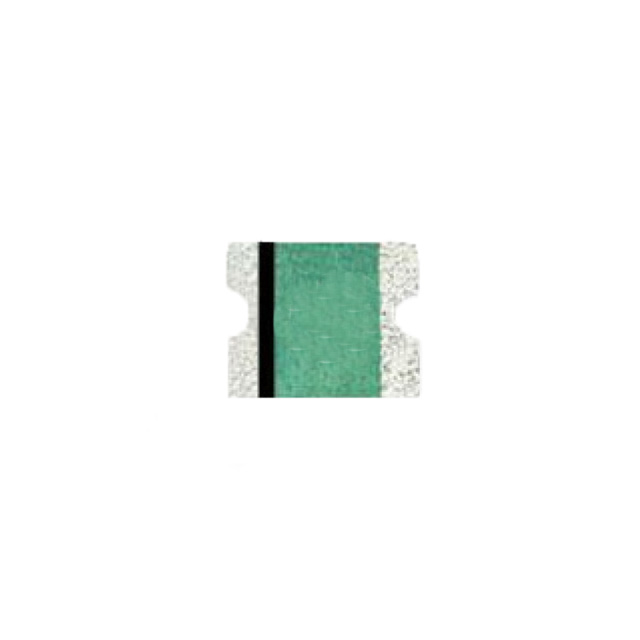

OptiFuse R1206-005-R	cUL TUV UL	Polymeric	60 V	100 A	50 mA	Surface Mount	3.25 mm	0.065 in	0.128 in	1.65 mm	150 mA	3.6 Ohms		1206 (3216 Metric) Concave	85 °C	-40 C	1.5 s	0.85 mm	0.033 in	50 Ohms
