QTLP610CPD Series

Right angle SMD phototransistor

Catalog

Right angle SMD phototransistor

Part	Voltage - Collector Emitter Breakdown (Max) [Max]	Current - Dark (Id) (Max) [Max]	Current - Collector (Ic) (Max) [Max]	Power - Max [Max]	Package / Case	Mounting Type	Orientation	Viewing Angle	Operating Temperature [Min]	Operating Temperature [Max]	Wavelength
ON Semiconductor QTLP610CPDTR	30 V	100 nA	500 µA	75 mW	2-SMD No Lead	Surface Mount	Side View	160 °	-25 °C	85 °C	860 nm

Right angle SMD phototransistor

• NPN Silicon Phototransistor

• Right Angle Surface Mount Package

• Matched Emitters: QTLP610CIR

• Available in 0.315" (8mm) width tape on 7" (178mm) diameter reel; 2,000 units per reel

• High Photo Sensitivity

• Low Junction Capacitance

• Fast Response Time

• Water Clear Lens

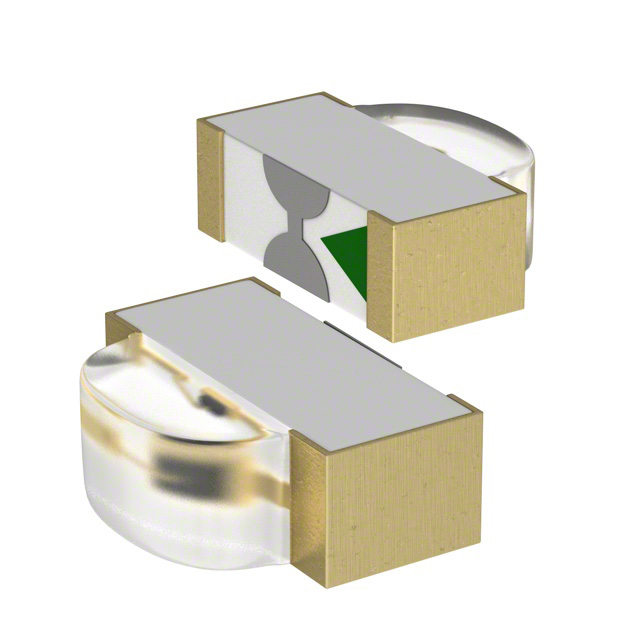

QTLP610CPD is a phototransistor in miniature SMD package molded in a water clear plastic with right angle lens.
