EC01 Series

Manufacturer: TE Connectivity AMP Connectors

Catalog

WIRE MARKER PUSH ON 4.5MM WHITE

Part	Legend	Size	Size	Material	Type	Cable Diameter [Max]	Cable Diameter [Max]	Cable Diameter [Min]	Cable Diameter [Min]	Color	Operating Temperature [Min]	Operating Temperature [Max]	Legend
TE Connectivity AMP Connectors EC0155-000	K	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	White
TE Connectivity AMP Connectors EC0103-000	C	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	Yellow	-45 °C	70 °C
TE Connectivity AMP Connectors EC0100-000		0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	Yellow	-45 °C	70 °C	9
TE Connectivity AMP Connectors EC0155-000	K	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	White	-45 °C	70 °C
TE Connectivity AMP Connectors EC0169-000		0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	White	-45 °C	70 °C

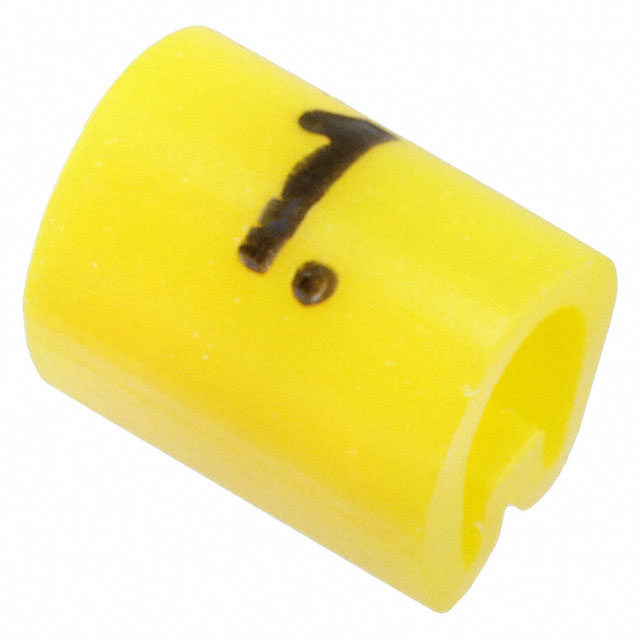

TE Connectivity AMP Connectors EC0190-000	1	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.126 in	3.2 mm	2 mm	0.079 in	Yellow	-45 °C	70 °C
TE Connectivity AMP Connectors EC0114-000		0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	Yellow	-45 °C	70 °C
TE Connectivity AMP Connectors EC0106-000	F	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	Yellow	-45 °C	70 °C
TE Connectivity AMP Connectors EC0136-000	1	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	White	-45 °C	70 °C
TE Connectivity AMP Connectors EC0121-000	U	0.18 in	4.5 mm	Poly-Vinyl Chloride (PVC)	Wire Marker Push On	0.079 in	2 mm	1.5 mm	0.059 "	Yellow	-45 °C	70 °C
