SD-PNL06 Series
Manufacturer: Adam Tech
Beta
⌘K
CONN RCPT FMALE 6POS GOLD SOLDER
| Part | Color | Shell Size - Insert | Shell Material | Shielding | Ingress Protection | Shell Finish | Contact Material | Connector Type | Contact Finish - Mating | Fastening Type | Primary Material | Insert Material [custom] | Termination | Contact Finish Thickness - Mating | Number of Positions | Mounting Feature | Orientation | Mounting Type | Cable Opening | Cable Opening | Features | Material Flammability Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Backshell Material, Plating |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

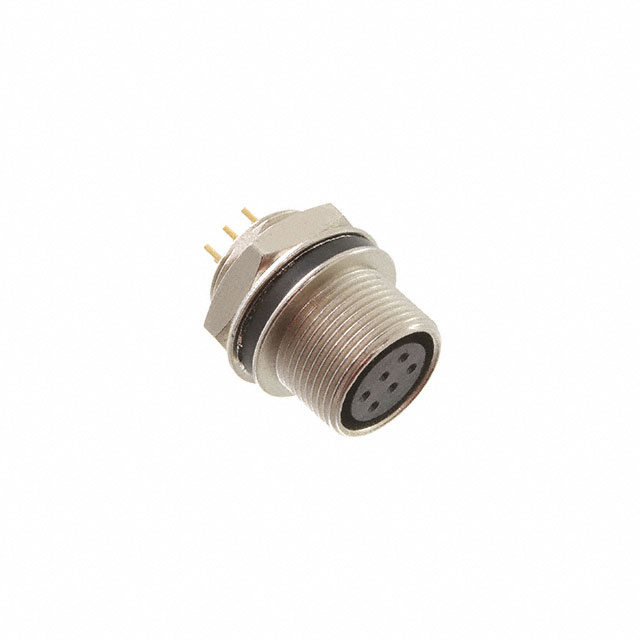

 Adam Tech | Silver | 6 mm 8 mm | Zinc Alloy | Unshielded | IP67 - Dust Tight Waterproof | Nickel | Brass | Receptacle Female Sockets | Gold | Threaded | Metal | Nylon 4/6 Polyamide (PA46) | Solder | Flash | 6 | Bulkhead - Rear Side Nut | Keyed | Panel Mount Through Hole | |||||||

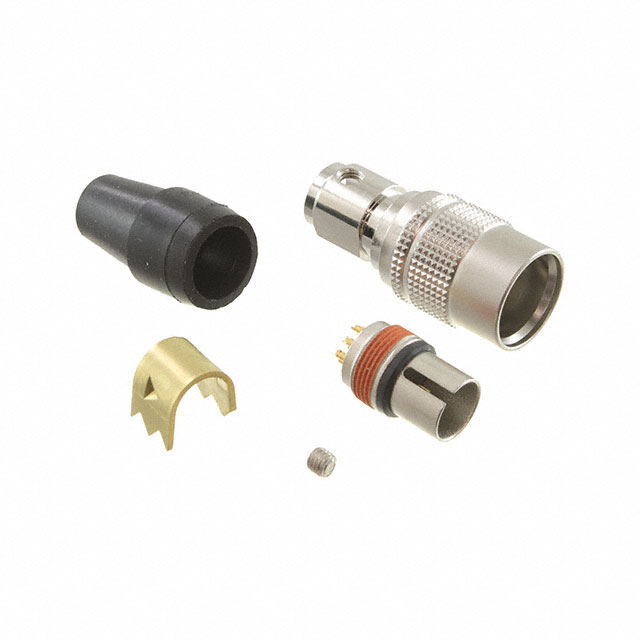

 Adam Tech | Black Silver | 6 mm 8 mm | Zinc Alloy | Unshielded | IP67 - Dust Tight Waterproof | Nickel | Brass | Plug Male Pins | Gold | Threaded | Metal | Nylon 4/6 Polyamide (PA46) | 6 | Keyed | Free Hanging (In-Line) | 4.6 mm | 0.181 in | Backshell Cable Clamp Strain Relief | UL94 V-0 | 0.25 µm | 10 µin | Brass Nickel |
