RJE39288 Series
Manufacturer: Amphenol ICC (Commercial Products)
Beta
⌘K
RA, 8P8C, TWO PORT, WITH SHIELD,
| Part | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Contact Finish Thickness | Contact Finish Thickness | Connector Type | Contact Finish | Mounting Type | Termination | Tab Direction | Number of Positions/Contacts | Shielding | Number of Ports | Contact Material | Orientation | Features | LED Color | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

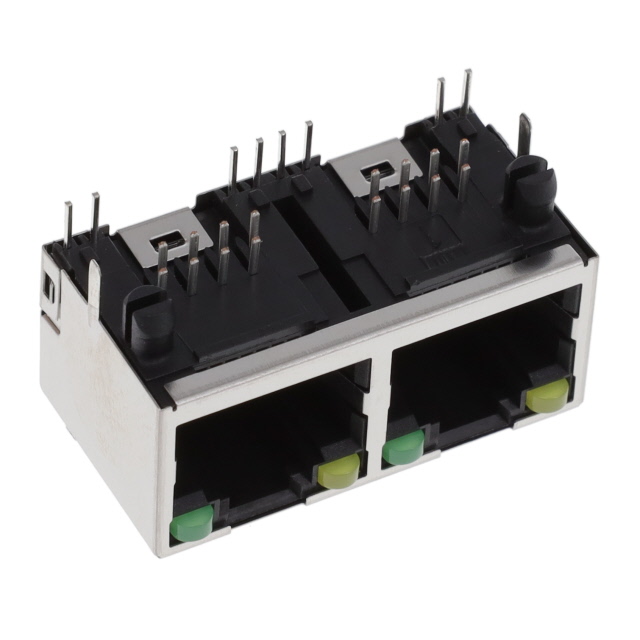

 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Jack | Gold | Through Hole | Solder | Up | 8p8c (RJ45 Ethernet) | Shielded | 2 | Phosphor Bronze | 90 ° | Board Lock | Yellow - Green | 1 |

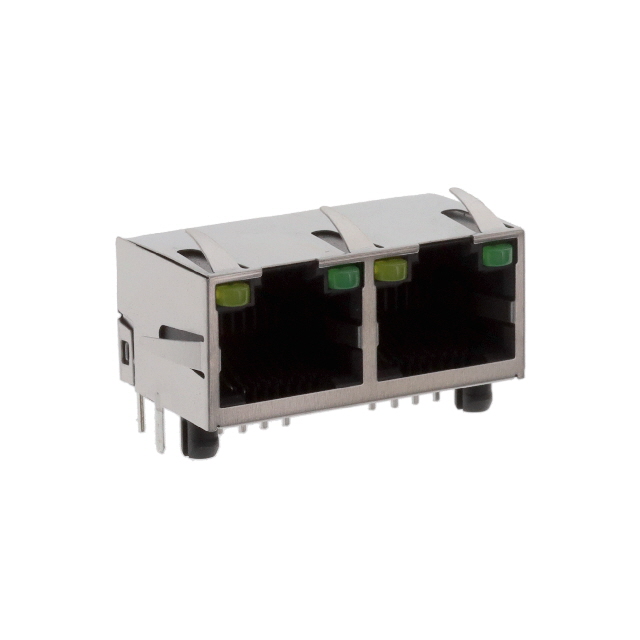

 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Jack | Gold | Through Hole | Solder | Up | 8p8c (RJ45 Ethernet) | EMI Finger Shielded | 2 | Phosphor Bronze | 90 ° | Yellow - Green | 1 | |

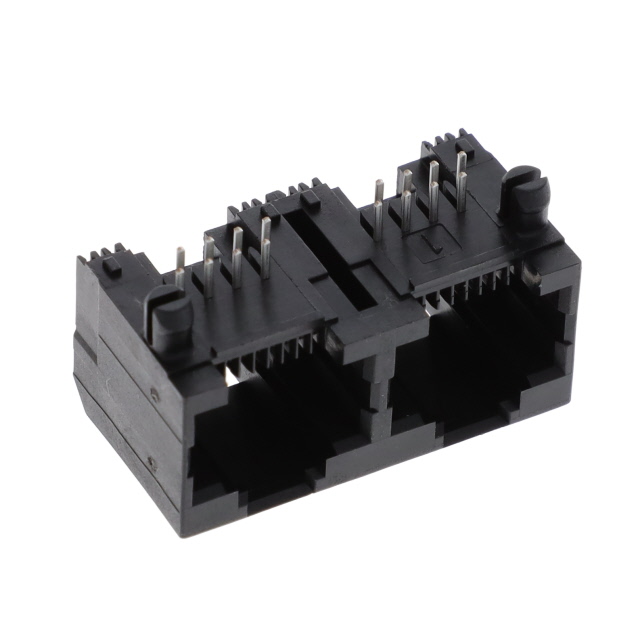

 Amphenol ICC (Commercial Products) | Thermoplastic | -55 C | 85 °C | 50 µin | 1.27 µm | Jack | Gold | Through Hole | Solder | Up | 8p8c (RJ45 Ethernet) | Unshielded | 2 | Phosphor Bronze | 90 ° | Board Lock | Does Not Contain LED | 1 |
