1825375 Series

Catalog

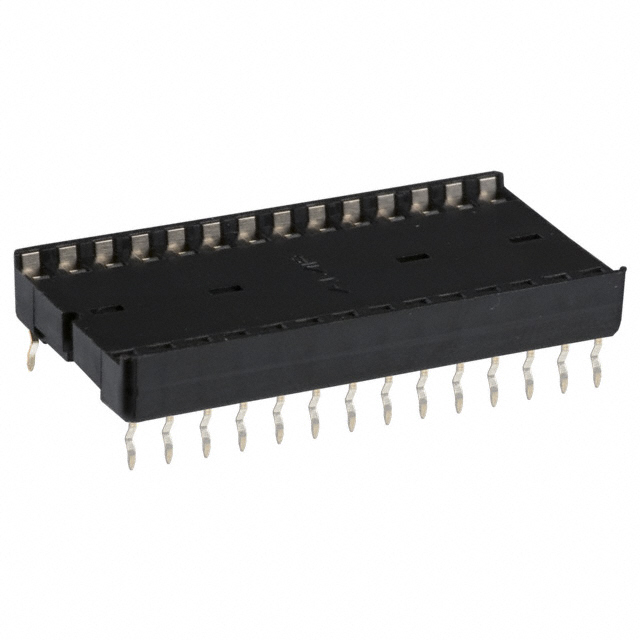

IC SOCKET, DIP28, 28 CONTACT(S), 2.54MM TERM PITCH, 15.24MM ROW SPACING, SOLDER

Part	Mounting Type	Termination Post Length [x]	Termination Post Length [x]	Pitch - Mating	Pitch - Mating	Number of Positions or Pins (Grid)	Housing Material	Contact Material - Mating	Operating Temperature [Min]	Operating Temperature [Max]	Type	Type	Type	Contact Resistance	Termination	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Pitch - Post	Pitch - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Material Flammability Rating	Features	Contact Finish - Mating	Contact Finish - Post	Contact Material - Post
TE Connectivity Raychem Cable Protection 1825375-2	Through Hole	0.128 in	3.24 mm	0.1 in	2.54 mm	28	Thermoplastic Glass Filled	Phosphor Bronze	-55 °C	125 °C	DIP	0.6 in	15.24 mm	30 mOhm	Solder	15 µin	0.38 µm	2.54 mm	0.1 in	15 µin	0.38 µm	UL94 V-0	Closed Frame	Gold	Gold	Phosphor Bronze
