C146 10R024 Series
Manufacturer: Amphenol Tuchel Industrial
Beta
⌘K

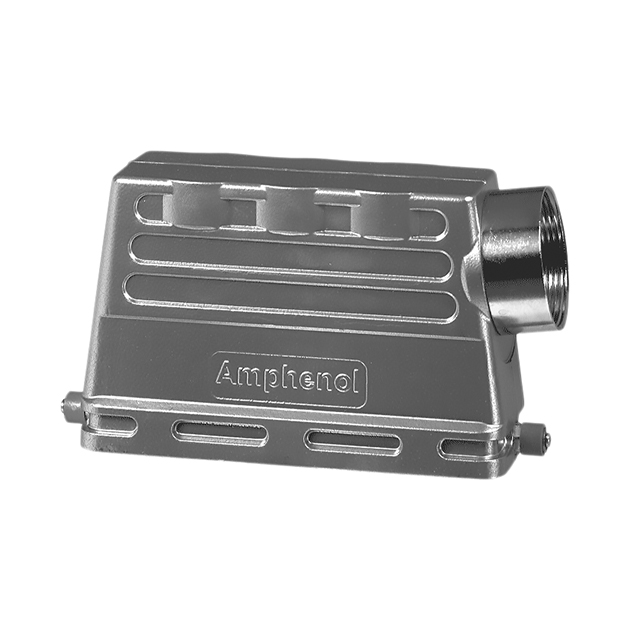

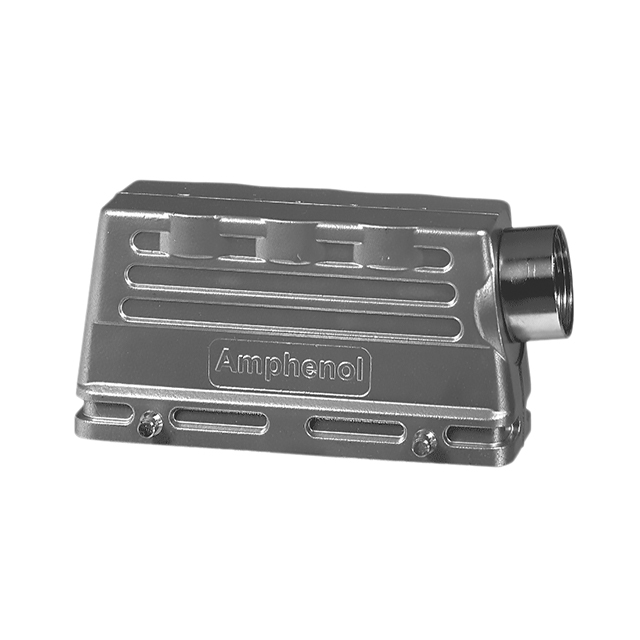

CONN HOOD SIDE ENTRY SZE24 M32
| Part | Thread Size | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Ingress Protection | Housing Material | Operating Temperature [Min] | Operating Temperature [Max] | Size | Connector Type | Style | Lock Location |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol Tuchel Industrial | M32 | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | -40 C | 100 °C | E24 | Hood | Side Entry | Locking Clip (2) on Base Bottom |
 Amphenol Tuchel Industrial | M32 | 43 mm | 62 mm | 2.441 " | 120 mm | 4.724 in | 1.693 " | IP65 - Dust Tight Water Resistant | Aluminum Alloy Die Cast | -40 C | 100 °C | E24 | Hood | Side Entry | Locking Clip (2) on Base Bottom |
 Amphenol Tuchel Industrial | M32 | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | -40 C | 100 °C | E24 | Hood | Side Entry | Locking Clip (1) on Base Bottom |
 Amphenol Tuchel Industrial | 43 mm | 76 mm | 2.992 in | 120 mm | 4.724 in | 1.693 " | IP65 - Dust Tight Water Resistant | Aluminum Die Cast | -40 C | 100 °C | E24 | Hood | Top Entry | Locking Clip (2) on Base Bottom |
