RBW2ABL Series
Manufacturer: E-Switch
Catalog
SWITCH ROCKER DPST 16A 125V
| Part | Electrical Life | Mechanical Life | Illumination Voltage (Nominal) | Illumination Type, Color | Circuit | Color - Actuator/Cap | Operating Temperature [Max] | Operating Temperature [Min] | Ingress Protection | Actuator Marking | Panel Cutout Dimensions [y] | Panel Cutout Dimensions [x] | Voltage Rating - AC | Mounting Type | Switch Function | Termination Style | Actuator Type | Current Rating (Amps) | Voltage Rating - DC | Illumination Type, Color [custom] | Illumination Type, Color [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 E-Switch | 50000 Cycles | 50000 Cycles | 125 VAC | Neon Red | DPST | Red | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | No Marking | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | |||

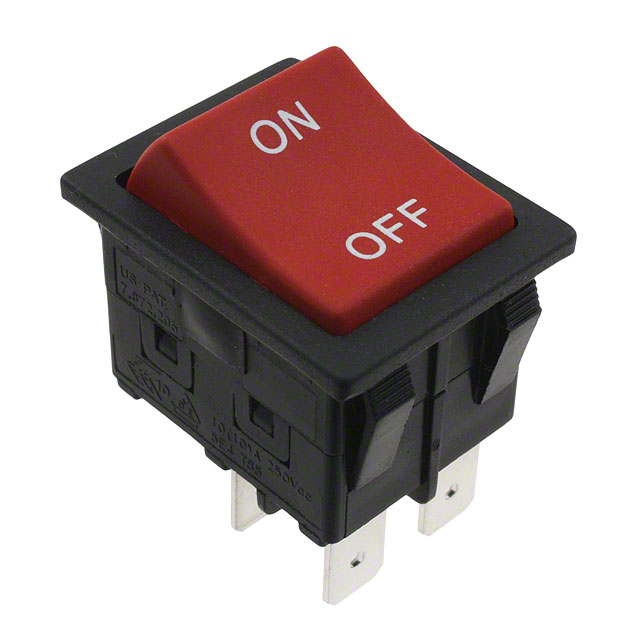

 E-Switch | 50000 Cycles | 50000 Cycles | DPST | Red | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | ON OFF | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 16 A | |||||

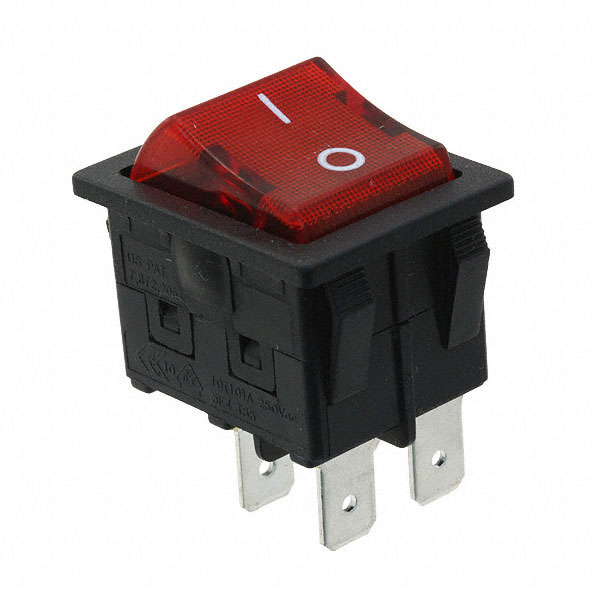

 E-Switch | 50000 Cycles | 50000 Cycles | 125 VAC | Neon Red | DPST | Red | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | O - | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | |||
 E-Switch | 50000 Cycles | 50000 Cycles | 250 VAC | Neon Red | DPST | Red | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | O - | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | |||
E-Switch | 50000 Cycles | 50000 Cycles | 12 VDC | Blue Incandescent | DPST | Blue | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | No Marking | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | |||
 E-Switch | 50000 Cycles | 50000 Cycles | DPST | Black | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | O - | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 16 A | |||||
E-Switch | 50000 Cycles | 50000 Cycles | 12 VDC | Incandescent Red | DPST | Red | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | O - | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | 12 V | ||
 E-Switch | 50000 Cycles | 50000 Cycles | DPST | Black | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | No Marking | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 16 A | |||||

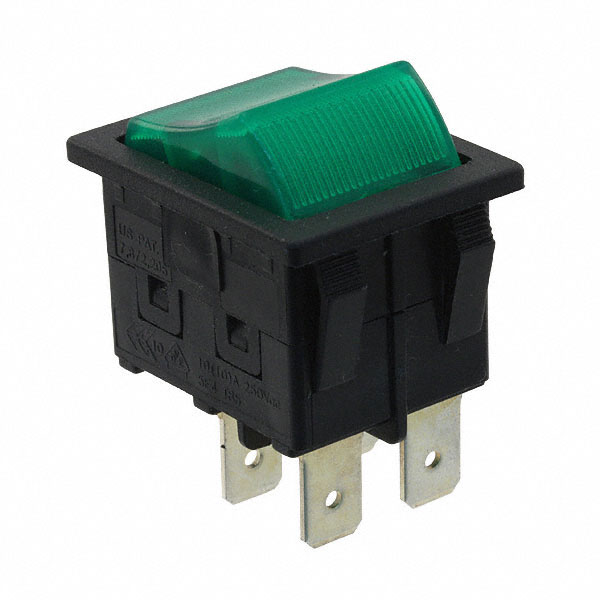

 E-Switch | 50000 Cycles | 50000 Cycles | 125 VAC | DPST | Green | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | No Marking | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) - Illuminated | 16 A | Neon | Green | ||

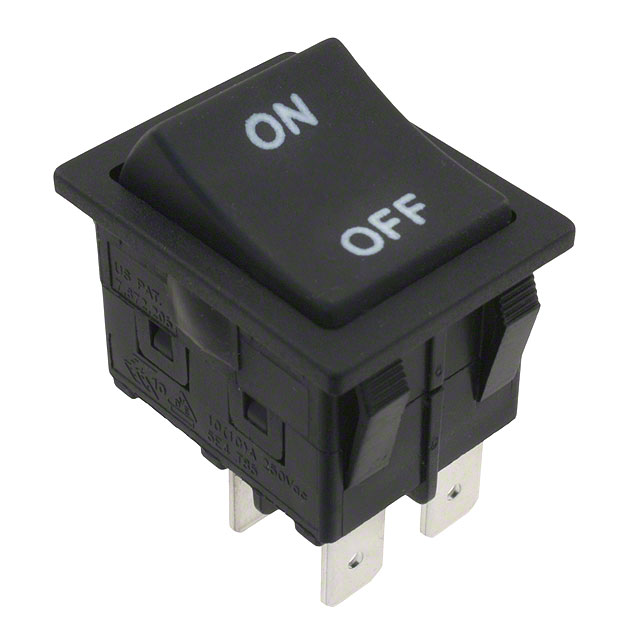

 E-Switch | 50000 Cycles | 50000 Cycles | DPST | Black | 85 °C | -20 ░C | IP66 - Dust Tight Water Resistant | ON OFF | 22.3 mm | 30 mm | 125 V | Panel Mount Snap-In | On-Off | Quick Connect - 0.250" (6.3mm) | Concave (Curved) | 16 A |
